• Model NO.：Flat Twin and Earth Cable
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Application

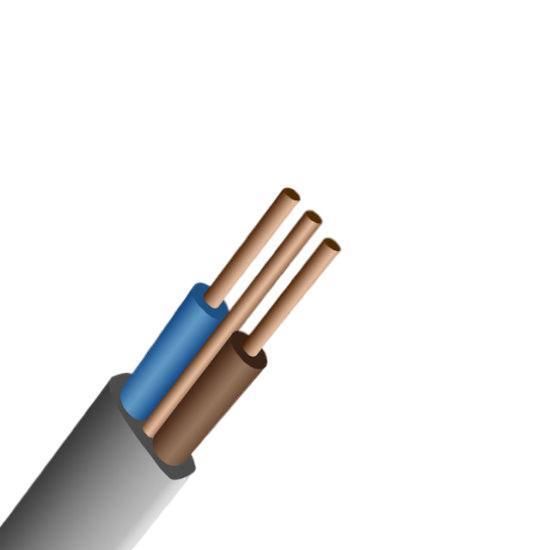

Flat Twin and Earth

Also known as FTE (flat twin and earth) the live and neutral conductors are individually insulated, and the Circuit Protective Conductor (CPC) or earth, is bare. Not suitable for unprotected use outside as the outer sheath materials are vulnerable to attack by UV although protective paint can provide some UV protection.


Flat Twin & Earth Cable plain copper conductors, PVC insulated, laid up with bare copper earth wire, PVC sheathed overall.

Flat Twin & Earth Cable can be used for the wiring of under-plaster wiring, wiring in the roof and under-floor wiring.

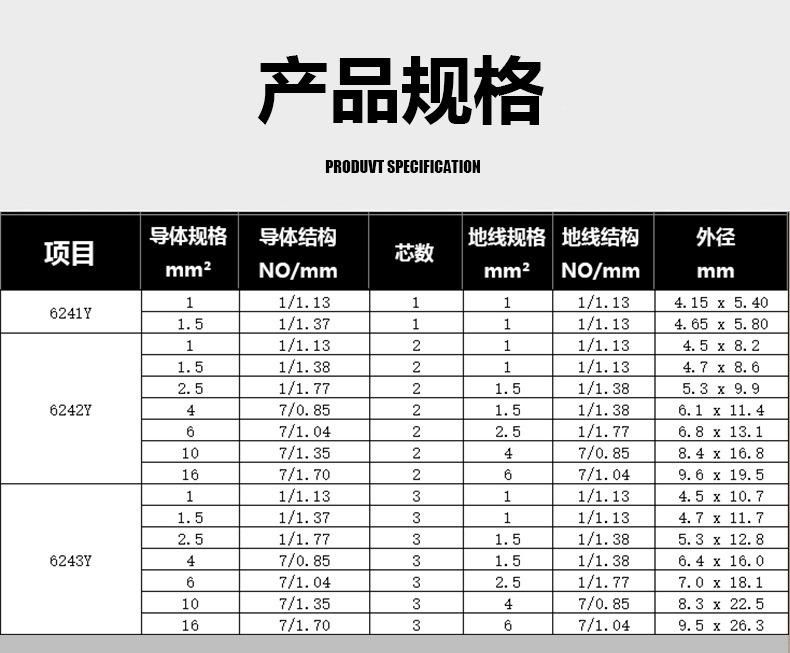

Standard metric twin and earth cable sizes are:

• 1mm² 1.5mm² & 2.5mm² which have solid (non-stranded) conductors
• 4mm², 6mm², 10mm², 16mm² and higher have stranded conductors
• 1.5mm² is used typically for domestic wiring circuits and 2.5mm² twin and earth is used in domestic power circuits

LSF, LSOH, OHLS Twin and Earth Cable

Low Smoke and Fume cable (LSF), Low Smoke Zero Halogen cable (LSOH) or Zero Halogen Low Smoke cable (OHLS ) are designed to minimise the release of toxic fumes when subjected to fire or burning. In an emergency situation escape is improved by the reduced smoke and reduced toxic gasses.
