Rubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for Mining

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Coal Power Equipment Can Transmit Electricity Use.
  • Conductor Material:Copper
  • Sheath Material:Rubber
  • Insulation Material:Rubber

Base Info

  • Model NO.:Mining Cable
  • Material Shape:Round Wire
  • Range of Application:Coal Power Equipment Can Transmit Electricity Use.
  • Certification:ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand:Feiya
  • OEM:Yes
  • Transport Package:Wooden Box Packing or Pallet Shipping Containers
  • Specification:copper
  • Trademark:Feiya
  • Origin:China
  • HS Code:854449210
  • Production Capacity:80000 Meter,Meters Per Month

Description

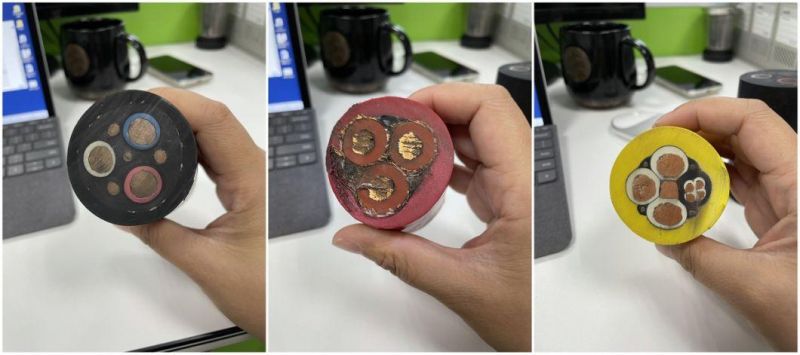

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.Rubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for Mining
Application
1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.
2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90ºC;for the other, it is 65ºC.
3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.
4 The grounding wire should be well connected with the earth.
5The cable should be prevented from exposing to the sunshine for a long time.



Implemented standard
1For the non-spread combustion cable, implement GB12972 Flexible rubber mining cable
2For the flame-retardant cable, implement MT818Flame-retardant cable used in the coal mine
3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.


Type and Designation

TypeDescriptionApplication
MC-0.38/0.66Rubber flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66Shielded, rubber-sheathed flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14Shielded, rubber flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14Shielded ,monitoring and braiding reinforced type,
rubber flexible cable for excavator
As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it can be dragged directly
MCPJR-0.66/1.14Shielded ,monitoring and braiding reinforced type,
rubber flexible cable for excavator
As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it must be used in the protective chain panel
MCPT-0.66/1.14Metallic shielded rubber flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3Shielded rubber flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3Metallic shielded rubber flexible cable for excavatorAs the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-0.66/1.14
MCPTJ-1.9/3.3Metallic shielded, monitoring type,
rubber flexible cable for excavator
As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66Movable rubber flexible cable for miningAs the power connection used in the mining machine with rated voltage 1.9/3.3kV
MYP-0.38/0.66Movable shield rubber flexible cable for miningAs the power connection used in the mining machine with rated voltage 0.38/0.66kV
MYP-0.66/1.14Movable shield rubber flexible cable for miningAs the power connection used in the mining machine with rated voltage 0.66/1.14kV
MYPJ-3.6/6Monitoring movable shield rubber flexible cable for miningAs the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYPTJ-3.6/6Metallic shielded monitoring type
movable rubber flexible cable
As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYP-3.6/6Movable shield rubber flexible cable for miningMining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPT-3.6/6Movable metallic shield rubber flexible cable for miningMining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPD-3.6/6Movable shield rubber flexible cable for miningMining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MYPTD-3.6/6Movable metallic shield rubber flexible cable for miningMining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MZ-0.3/0.5Driller cable for miningAs the power connection of driller with rated voltage 0.3/0.5kV
MZP-0.3/0.5Driller shielded cable for miningAs the power connection of driller with rated voltage 0.3/0.5kV

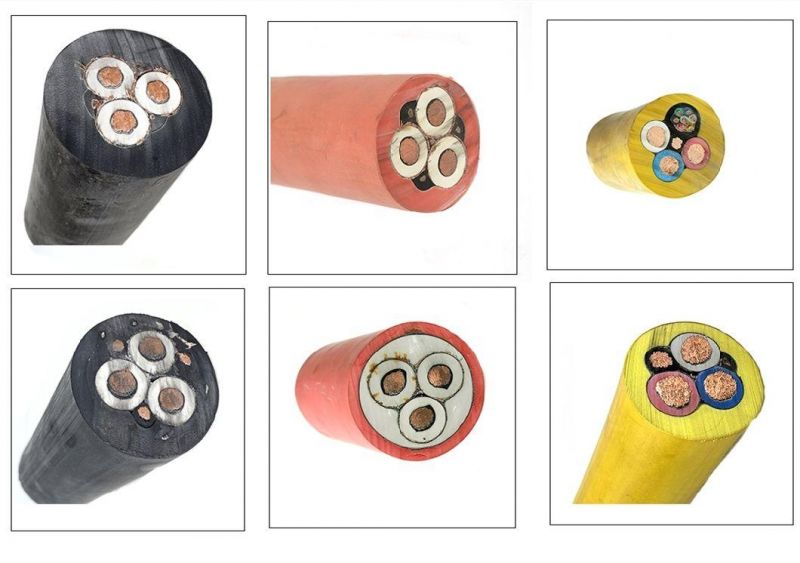

Rubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for MiningRubber Insulated Sheathed Mining Power 1.8/3kv Electrical Trailing Cable for Mining
