ACSR Overhead Aluminum Conductor Steel Reinforced Cable for Power Supply
Guangdong Vango Cable Industry Co., Ltd.- Application：Overhead, Industrial, Power Station, Power Transmission
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR Conductor
- Wire Core Material：Aluminum
- Certification：ISO, CCC, RoHS, UL
- Model：ACSR
- Antiseptic Property：Adding Antiseptic Material Is Allowed
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600tons Per Month
Description
DC resitanceAluminium Steel Total Aluminium Steel Aluminium Steel Core Conductor % mm2 mm2 mm2 mm mm mm mm kg/km kN W/km 16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.08 1.7934 25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 9.13 1.1478 40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 14.40 0.7174 63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 21.68 0.4555 100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 34.33 0.2869 125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 29.17 0.2304 125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 45.69 0.2310 160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 36.18 0.1800 160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 57.69 0.1805 200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 44.22 0.1440 200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 70.13 0.1444 250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 68.72 0.1154 250 16 250 40.7 291 26 7 3.50 2.72 6.16 22.2 1007.7 87.67 0.1155 315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 79.03 0.0917 315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 106.83 0.0917 400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 98.36 0.0722 400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 123.04 0.0723 450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 107.47 0.0642 450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 138.42 0.0643 500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 119.41 0.0578 500 13 500 64.8 565 54 7 3.43 3.43 10.30 30.9 1887.9 153.80 0.0578 560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.6 1848.2 133.74 0.0516 560 13 560 70.9 631 54 19 3.63 2.18 10.90 32.7 2103.4 172.59 0.0516 630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 150.45 0.0459 630 13 630 79.8 710 54 19 3.85 2.31 11.60 34.7 2366.3 191.77 0.0459 710 7 710 40.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 169.56 0.0407 710 13 710 89.9 800 54 19 4.09 2.45 12.30 36.8 2666.8 216.12 0.0407 800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 167.41 0.0361 800 8 800 66.7 867 84 7 3.48 3.48 10.40 38.3 2732.7 205.33 0.0362 800 13 800 101.0 901 54 19 4.34 2.61 13.00 39.1 3004.9 243.52 0.0362 900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 188.33 0.0321 900 8 900 75.0 975 84 7 3.69 3.69 11.10 40.6 3074.2 226.50 0.0322 1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 209.26 0.0289 1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 234.53 0.0258 1120 8 1120 91.2 1211 84 19 4.12 2.47 12.40 45.3 3811.5 283.17 0.0258 1250 8 1250 102.0 1352 84 19 4.35 2.61 13.10 47.9 4253.9 316.04 0.0232 1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 261.75 0.0231
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Basic Information
Model No: ACSR Conductor Material Shape: Round Wire
Range of Application: Overhead Installation Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG HS Code: 7614100000
ACSR Code: Turkey, Swan, etc ACSR Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500mm2 ACSR Conductor Advantage: Antiseptic Model.
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China

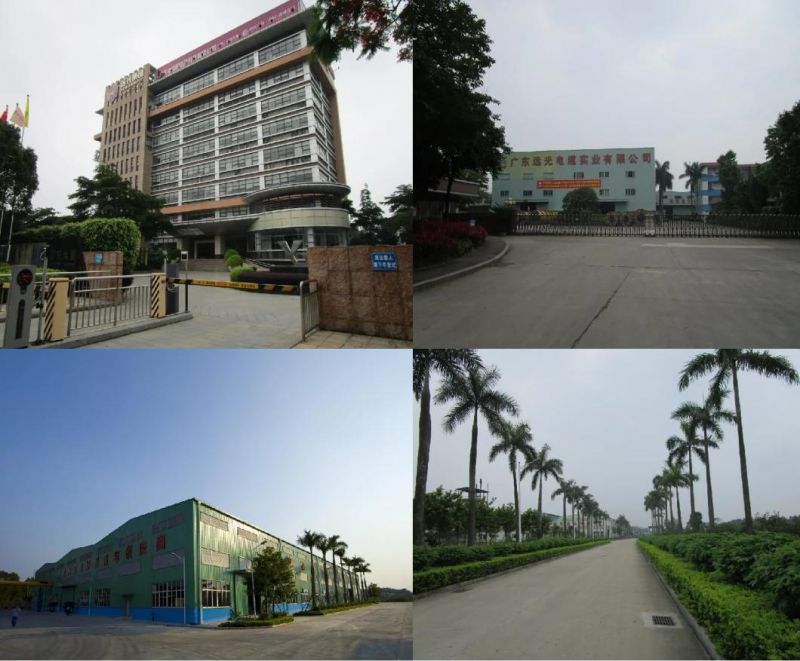

Our Company
Established in 1988, Guangdong Vango Cable industry Co., Ltd is one of the leading suppilers in cable industry. It is a antional technical private enterprise of researhing, manufacturing and supplying various power cables and electricity wires.
The main products of vango are XLPE insulated power cables wtih rated voltage up to 35kV, common type, fire-resistance or flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V,PVC insulated cable and wire, high conductivity, large core section, extra-high strength conductor, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor applied to the transmission line up to 1000kV, diameter extended conductor of 750kV and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items. The researching and manufacturing of conductor applied in 500kV to 1000kV ultra-high voltage DC transmission line is in the domestic advanced level. Our products sell well all around the domestic and foreign market, particularly in Southeast Asia, Middle East, Africa and other countries.

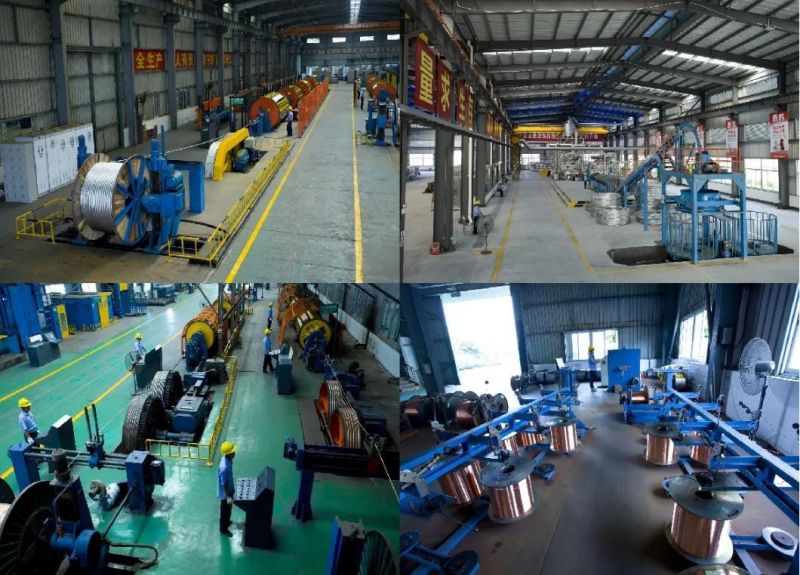

Workshop
Certificates
Customers
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
Contact us
Monica Mo
mobile: +86 17724237748
