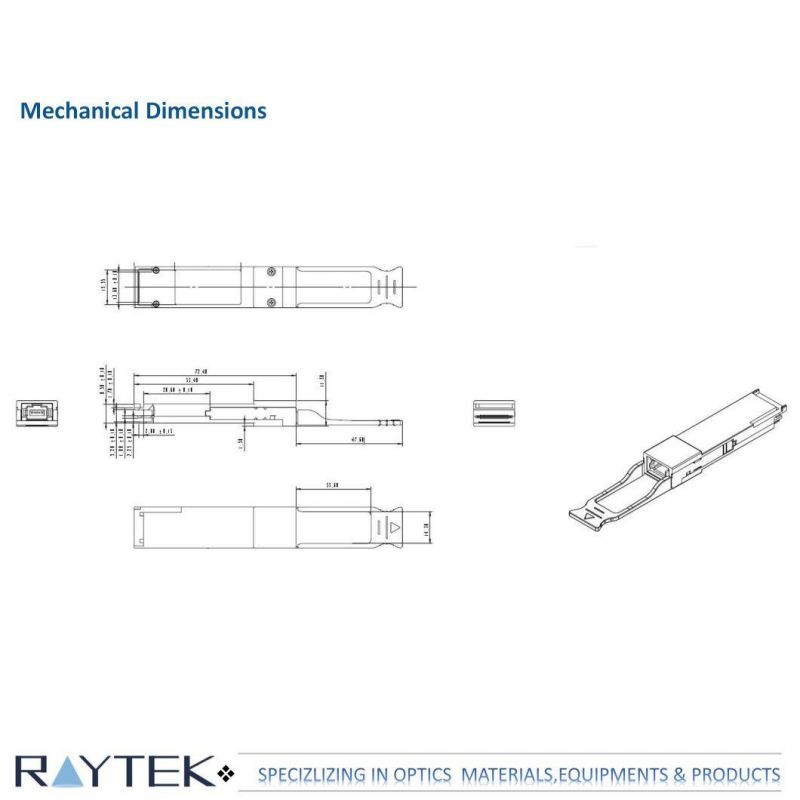

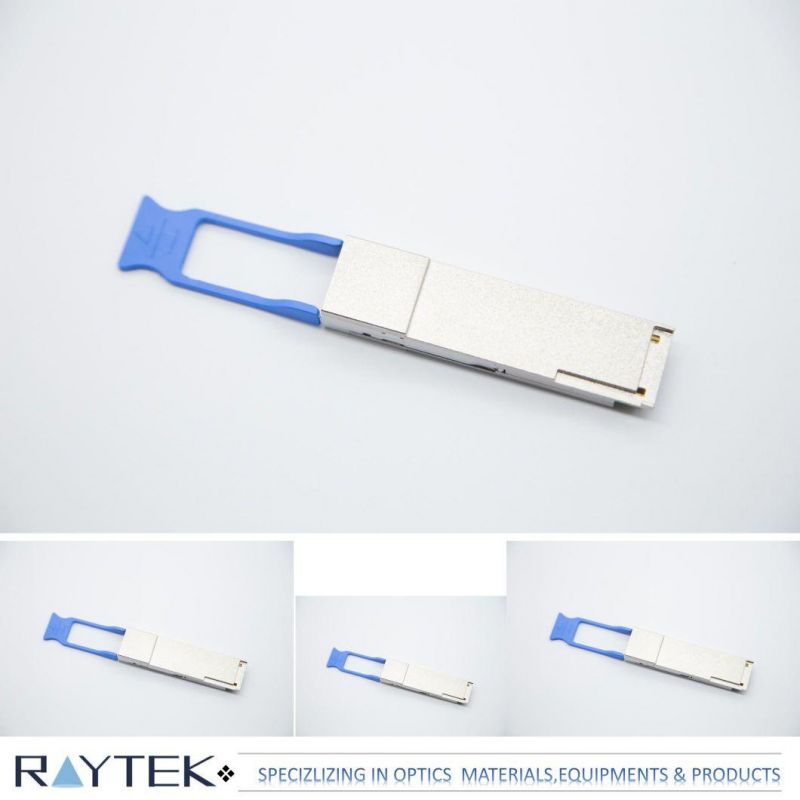

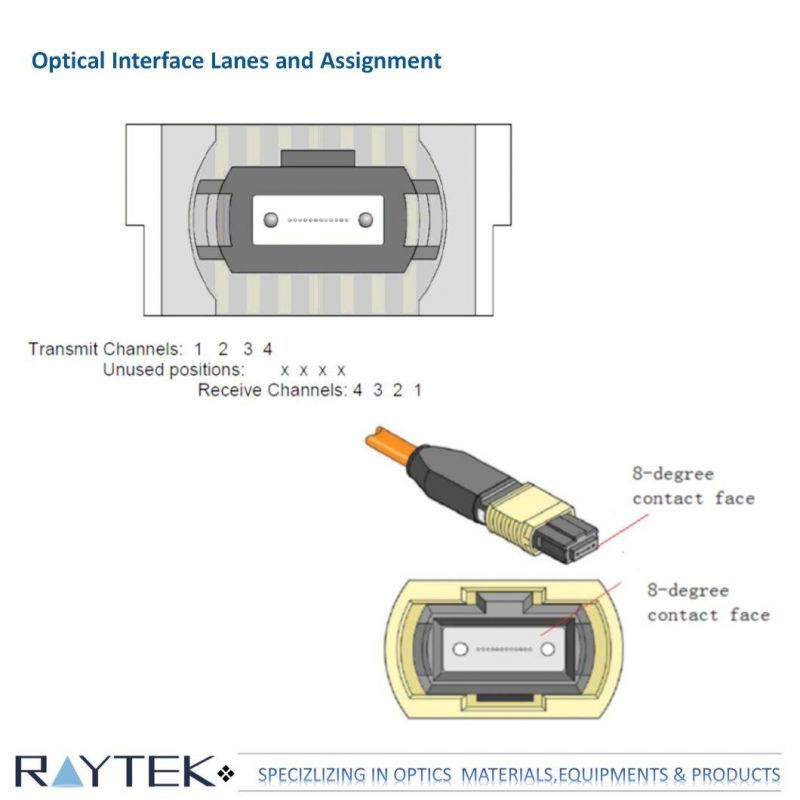

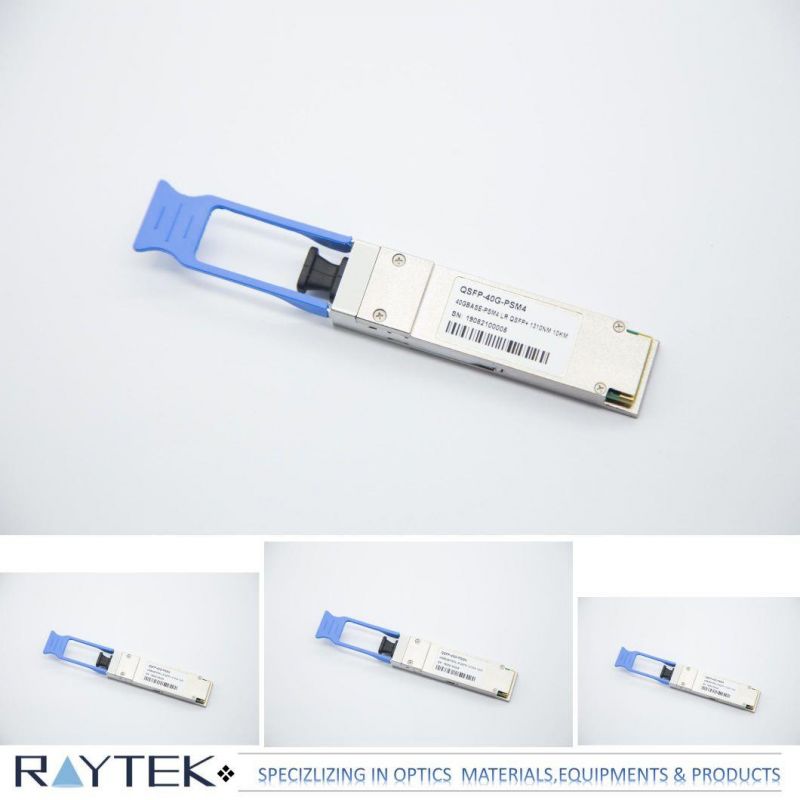

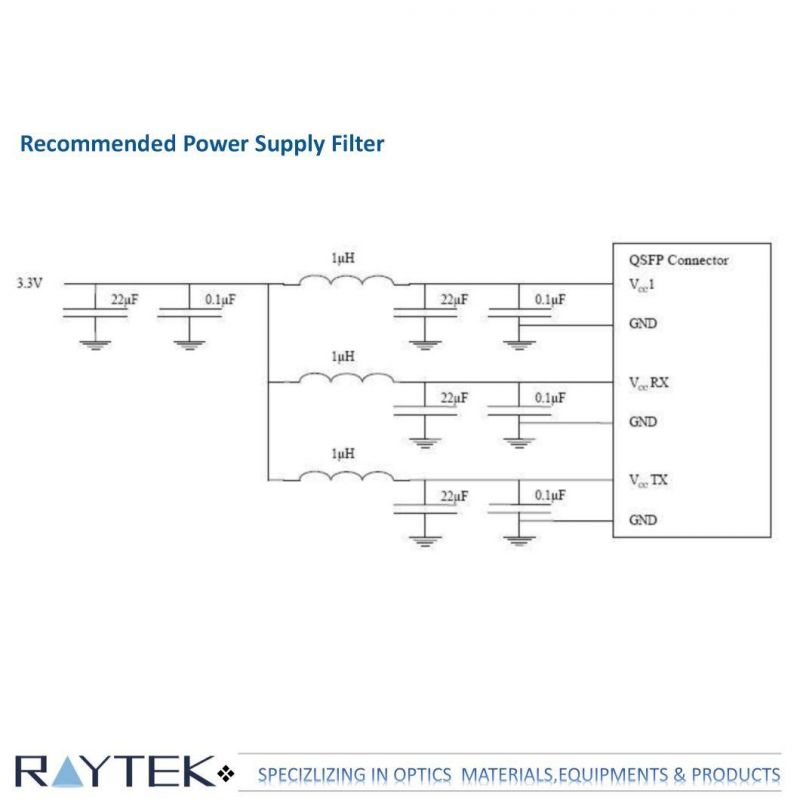

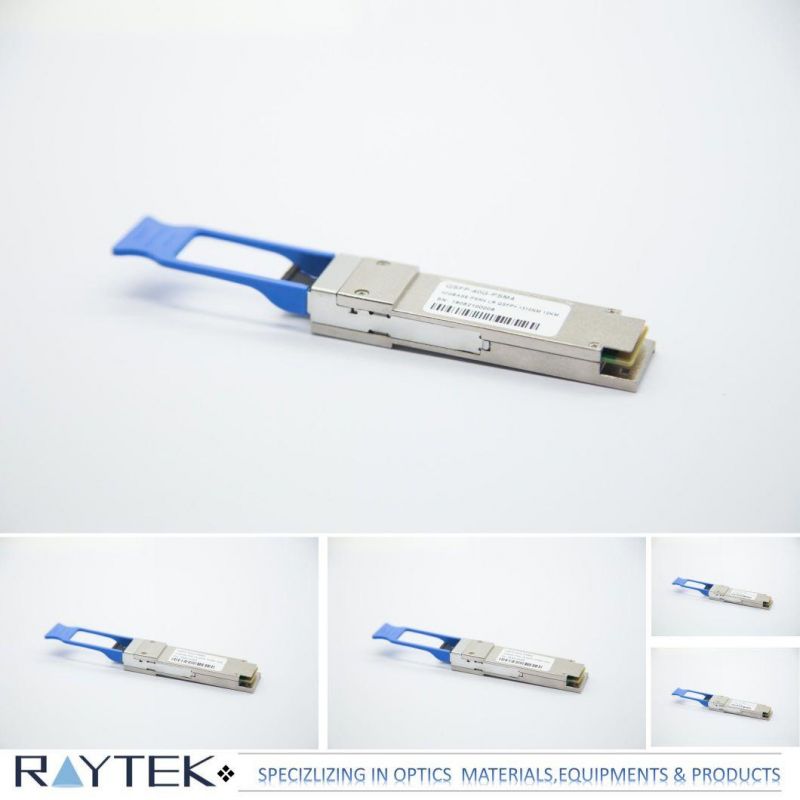

Qsfp+ Psm4 10km Optical Transceiver with Full Real-Time Digital Diagnostic Monitoring
Shanghai Rui Tai Photoelectric Technology Co., Ltd.- Application：Communication, Art, Sensor, Medicine, Probe, Sensing
- Type：Single-Mode & Multi-Mode
- Connection Structure：All Models
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：RAY-OF2012#
- Core：Single-Core,Multi-Core, Double-Core
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Raytek
- Sheath Material：Customized
- Power Consumption：3.5W
- Supply Current：1.06A
- Transceiver Power-on Initialization Time：2000ms
- Data Dependent Pulse Width Shrinkage (Dd：0.07ui
- Transport Package：1PCS Per Box
- Specification：custom as per demand
- Trademark：Raytek
- Origin：China
- HS Code：8536700000
- Production Capacity：100, 000, 0PCS Per Year
Description
Digital Diagnostic Functions:
Digital diagnostics monitoring function is available on all RAYOPTICS QSFP+ PSM LR4. A 2-wire serial interface provides user to contact with module. The structure of the memory is shown in Figure 3. The memory space is arranged into a lower, single page, address space of 128 bytes and multiple upper address space pages. This structure permits timely access to addresses in the lower page, such as Interrupt Flags and Monitors. Less time critical time entries, such as serial ID information and threshold settings, are available with the Page Select function. The interface address used is A0xh and is mainly used for time critical data like interrupt handling in order to enable a one-time-read for all data related to an interrupt situation. After an interrupt, IntL, has been asserted, the host can read out the flag field to determine the affected channel and type of flag.
| Parameter | Symbol | Min | Max | Unit | Notes |
| Temperature monitor absolute error | DMI_Temp | -3 | +3 | ºC | Over operating temperature range |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | +0.1 | V | Over full operating range |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | +3 | dB | 1 |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | +10% | mA | |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | +3 | dB | 1 |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical transceiver products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
