• Model NO.：RG 11
• Brand：General Clad
• Center Conductor Material：Copper-Clad Steel Wire
• Dielectric Material：Foam FEP
• Jacket Material：PVDF
• Shield (Braid) Coverage：60 %
• Shield (Braid) Material：Aluminum
• Shield (Tape) Material：Aluminum,Poly
• Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
• Trademark：General Clad
• Origin：China
• Production Capacity：200km,Month

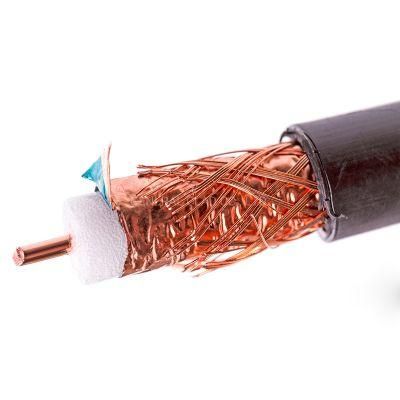

Cable TypeSeries 11Center Conductor TypeSolidConstruction TypeNon-armoredJacket ColorWhiteSupported ApplicationVideo
DimensionsCable Length304.8 m | 1000 ftDiameter Over Center Conductor, specific0.0641 in per 1 strandDiameter Over Dielectric7.112 mm | 0.28 inDiameter Over Jacket Tolerance±0.008 inDiameter Over Jacket, nominal8.915 mm | 0.351 inDiameter Over Shield (Braid)7.899 mm | 0.311 inDiameter Over Shield (Tape)7.366 mm | 0.29 inJacket Thickness0.508 mm | 0.02 inJacket Thickness, minimum spot0.406 mm | 0.016 inCenter Conductor Gauge14 AWGShield (Braid) Gauge34 AWG
Electrical SpecificationsCapacitance52.493 pF/m | 16 pF/ftCharacteristic Impedance75 ohmCharacteristic Impedance Tolerance±3 ohmConductor dc Resistance11 ohms/kft | 36.089 ohms/kmDielectric Strength, conductor to shield4000 VdcJacket Spark Test Voltage5000 VacNominal Velocity of Propagation (NVP)84 %Shield dc Resistance6.9 ohms/kft | 22.638 ohms/kmStructural Return Loss15 dB @ 1000-3000 MHz | 20 dB @ 5-1000 MHzStructural Return Loss Test Method100% Swept Tested
Material SpecificationsCenter Conductor MaterialCopper-clad steel wireDielectric MaterialFoam FEPJacket MaterialPVDFShield (Braid) Coverage60 %Shield (Braid) MaterialAluminumShield (Tape) MaterialAluminum/Poly
Package
