• Wire Core Material：Aluminum
• Certification：ISO, CE, Kema
• Model：Yjlv32,Yjlv72,Yjlv
• Brand：Yifang

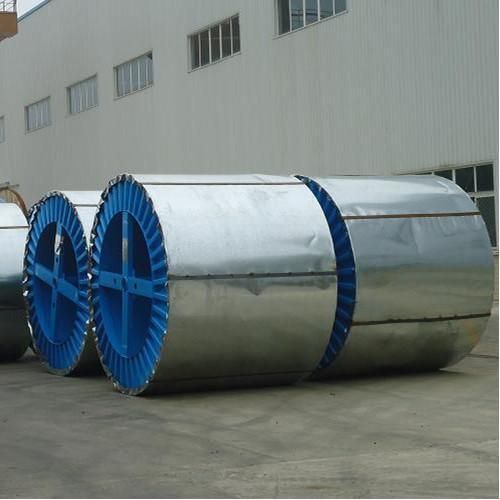

• Transport Package：Steel-Wood Drum, Steel Reel
• Origin：China
• Production Capacity：500km,Month

Basic Info.

Wire Core Material Aluminum Certification ISO, CE, Kema Model Yjlv32,Yjlv72,Yjlv Brand Yifang Transport Package Steel-Wood Drum, Steel Reel Origin China Production Capacity 500km/Month

Product Description

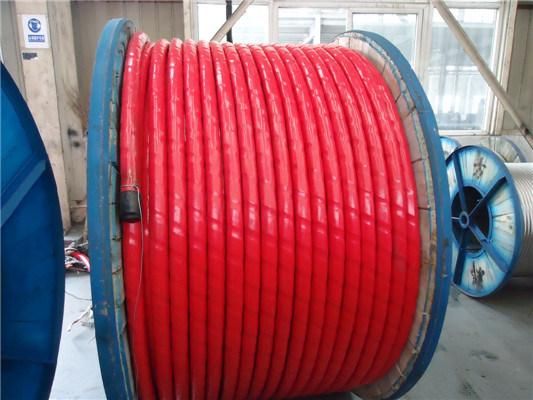

12/20KV(24KV) Power Cable Aluminum Conductor Galvanized Steel Wire Armour 3X300MM2

Application:

The cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , corrugated alu sheath , lead sheath , etc.

Standards: IEC 60502-2 , BS  6622, ANSI/ICEA S-93-639

Rated voltage (KV): 3.6/6, 6./10, 8.7/15, 12/20, 18/30 (19/33)

Conductor: Aluminum wire,  class 2
                   (Size :25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2,                               400mm2, 500mm2, 630mm2, 800mm2 )

Conductor screen: Semi-conducting Layer

Insulation: XLPE

Insulation Screen: Semi-conducting Layer

Metallic Screen:  Individual and overall copper tape screen

Bedding: PVC

Armoring:

Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA) or Steel tape armoured (STA)

Sheath: PVC,PE,LDPE,LLDPE,LSZH

Color:Red ,black or as your request

Conductor Cross-section area is up to 800mm2

For other detailed information , pls contact us directly .
