TUV Approved Solar PV1-F PV DC Solar Cable 1X25mm2
Luoyang Sanwu Cable Co., Ltd.- Application：Solar System
- Material Shape：Round Wire
- Sheath Material：Xlpo or PVC
- Insulating Material：Xlpo or PVC
- Conductor Type：Stranded
- Brand：Dayuan
Base Info
- Model NO.：PV1f-007
- Certification：ISO9001, TUV
- Wire Core Material：Tinned Copper Wire
- Company Nature：Manufacturer and Trading Company
- Number of Cores：One or Two
- Lifetime：25years
- Sectional Area：1.5-35mm2
- Range of Application：Industry, Solar System
- Item Name：12,14,16 AWG (2.5mm2 ,4.0mm2 ,6.0mm2) PV Solar Pow
- Flame Test Test：IEC 60332-1
- Rated Voltage：AC 0.6,1kv;DC 1.8kv
- Current：DC & AC
- Insulation Thickness：0.8mm
- Transport Package：Rolls, Woodren Drums, You Other Requirement Is Ok
- Specification：2.5mm2 4mm2 6mm2 10mm2 16mm2, etc
- Trademark：DAYUAN
- Origin：China
- HS Code：85444929
- Production Capacity：100000 M Per Day
Description
single core solar cablesType Sectional area(mm2) Conductor Insulation Jacket Weight(kg/km) No./Dia Outer dia Thickness Dia Thickness Dia PV1-F 1.5 30/0.25 1.60 0.75 3.10 0.80 4.70 37.4 PV1-F 2.5 49/0.25 2.10 0.75 4.10 0.80 5.20 64.6 PV1-F 4 52/0.3 2.60 0.75 4.10 0.80 5.70 64.6 PV1-F 6 78/0.3 3.20 0.75 4.70 0.80 6.30 85.6 PV1-F 10 84/0.4 4.70 0.75 6.20 0.80 7.80 142.1 PV1-F 16 126/0.4 5.80 0.75 7.30 0.80 8.90 197.7 PV1-F 25 196/0.4 7.60 0.75 9.10 0.80 8.90 197.7 Type Sectional area(mm2) Conductor Insulation Jacket Weight(kg/km) No./Dia Outer dia Thickness Dia Thickness Dia PV1-F/Round 2x1.5 30/0.25 1.60 0.75 3.10 1.00 8.20 98.6 PV1-F/Round 2x2.5 49/0.25 2.10 0.75 3.60 1.00 9.20 131.2 PV1-F/Round 2x4 52/0.3 2.60 0.75 4.10 1.00 10.20 171.0 PV1-F/Round 2x6 78/03 3.20 0.75 4.70 1.00 11.40 225.8 PV1-F/Flat 2x1.5 30/0.25 1.60 0.75 3.10 0.80 4.7x9.5 76.2 PV1-F/Flat 2x2.5 49/0.25 2.10 0.75 3.60 0.80 5.2x10.5 100.4 PV1-F/Flat 2x4 52/0.3 2.60 0.75 4.10 0.80 5.7x11.5 130.7 PV1-F/Flar 2x6 78/0.3 3.20 0.75 4.70 0.80 6.3x12.7 172.7

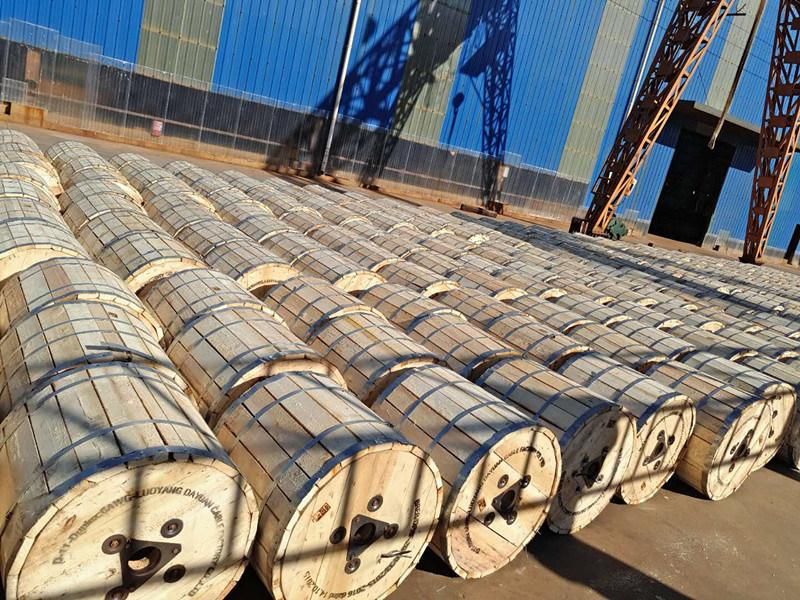

Solar Cable Package & Delivery
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group
1: a group with seven sub-companies;
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
Service we can offer
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!

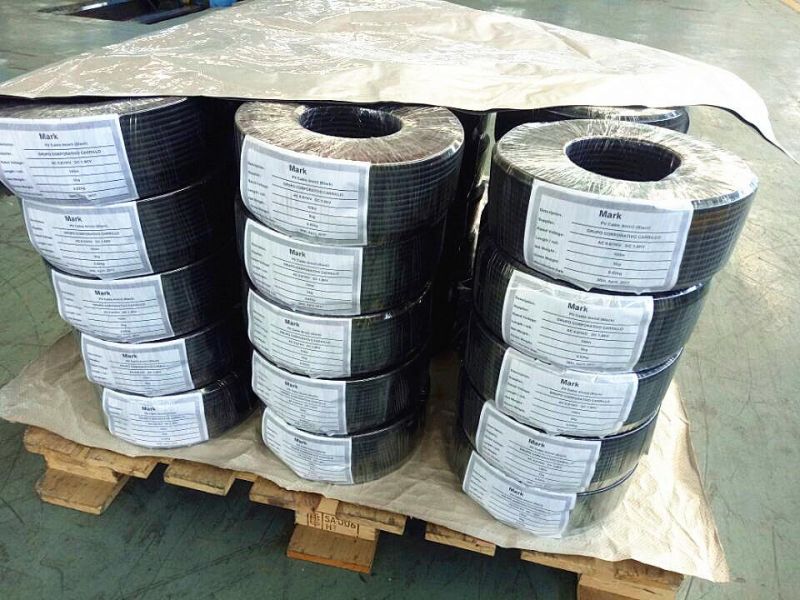

Solar Cable Package & Delivery
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement

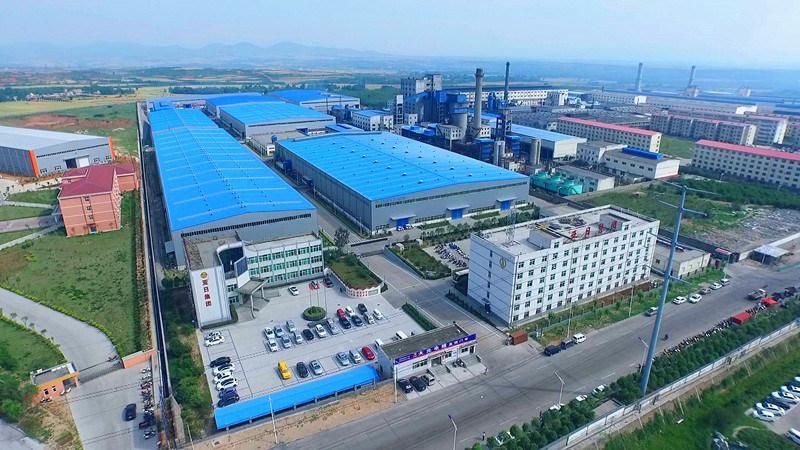

About Asian Sun Group
1: a group with seven sub-companies;
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.

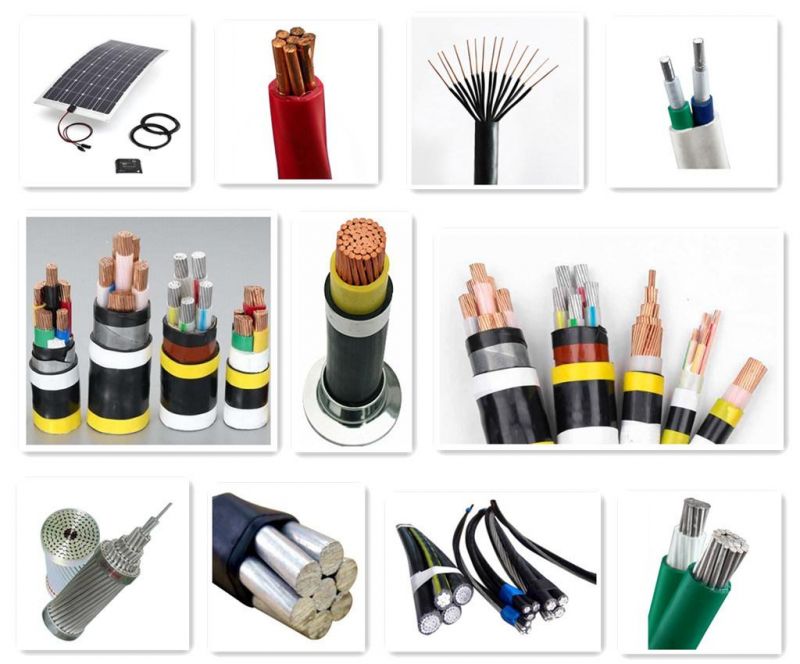

Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
| No. | Products Name |
| 1 | electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
Service we can offer
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!
