• Model NO.：JBSW-024
• Cable Entrance：2inlet,2outlet
• Install：Aerial, Direct-Burying, Wall-Mounting, Pipeline La
• Transport Package：Carton + Pallet
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：85389000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. JBSW-024 Cable Entrance 2inlet/2outlet Install Aerial, Direct-Burying, Wall-Mounting, Pipeline La Transport Package Carton + Pallet Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 85389000 Production Capacity 5000PCS/Month

Product Description

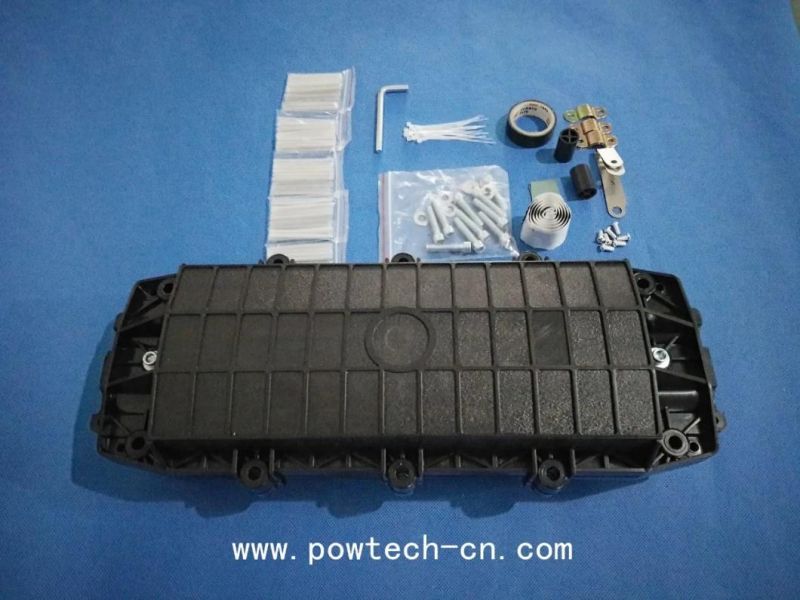

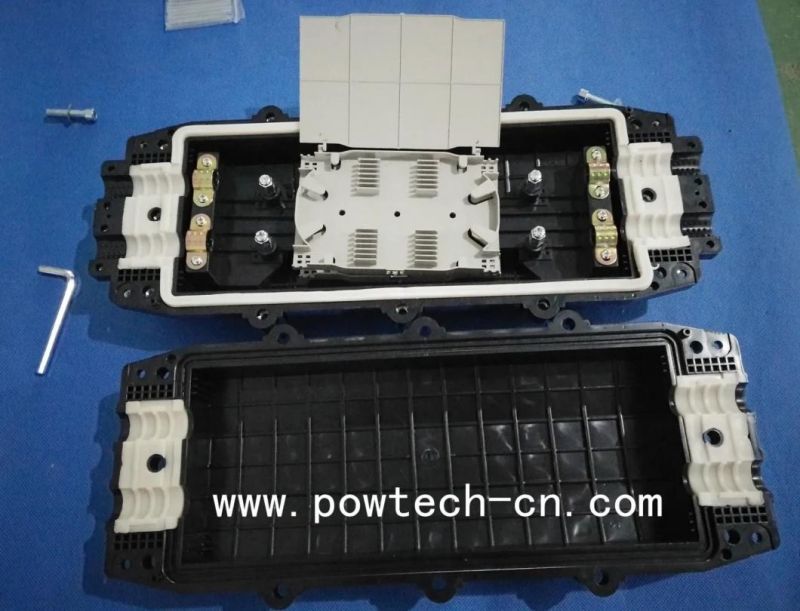

ADSS cable horizontal type splice closure 24~96 fibers new design hot selling

Description:
Innovative design is an erect and horizontal type with one hinge in one side and open in another side. It is the most reliable FOSC in the world. The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by numerical control equipment; Therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40º C to +75º C



Purpose: Aerial, direct-burying, wall-mounting, Pipeline laying way
Dimension (CM): 58*19*14CM
Cables Entry & Exit: 2Entry 2Exit
Cable Diameter (mm): Φ 7-Φ 30
Sealing Structure: Sticky cincture Sealing
Material: PC
Maximum capacity: 144cores


It is widely used for communication, network system, cabled T. V. Of CATV, the fiber optic cable by network
2. Usage
Suitable for aerial, pipelined or direct buried applications; Suitable for common fiber cables and ribbon cables; Suitable for straight-through as well as for branch joints to seal and protect splice, fusion, layout and storage of the fiber cables
3. Technical indexes
(1) Environment Condition:
Environment Temperature: -40º C~+75º C
Atmospheric pressure: 70~106Kpa
(2) Electric property:
Insulation resistance between the metallic elements themselves and between metallic element and the earth is more than 2× 104MΩ ;
The Voltage resistance between the metallic elements themselves and between metallic element and the earth is 15KVDC/1min, Non-puncture, no arc-cover.

(3) Optic property:
The curvature radius of the spare fiber is over 37.5mm; No additional optic attenuation.
(4) Seal Performance:
Airproof performance: Airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when parked in the common temperature water.
(5) Re-encapsulation Performance:
No change in the index of air-proof performance after three times of repeat encapsulation
(6) Mechanical Performance:
After all the following tests, the box and all the components inside don't change, check through gently or open it if necessary.
When the closures are pressurized up to 60 kPa, it can still meet the seal performance standard after the mechanical performance test
A. Can withstand 1000N horizontal pull force;
B. Can withstand 3000N/10cm vertical pressure;
C. Can withstand 16N· M impact three times;
D. Can withstand 50N· M twist force 10 circling times 10 cycles of ± 90° Twisting angle;

Model	Fiber capacity	Cable entrance	Net weight (kg)	Material	Installation
JBS02012-P	12 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02024-P	24 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02048-P	48 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02096-P	96 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS03012-P	12 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03024-P	24 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03048-P	48 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03096-P	96 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS04012-P	12 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04024-P	24 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04048-P	48 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04096-P	96 fibers	4ports	2	PC (Polycarbonate)	Pole
