ADSS Cable Horizontal Type Connector Plastic Splice Closure
Qingdao Powtech Electronics Co., Ltd.- Type：ADSS Cable Splice Closure
- Certification：CE, RoHS, CCC, ISO
- Customized：Customized
- Condition：New
- Feature：Moistureproof
- Max. Fiber Capacity：144fibers
Base Info
- Model NO.：JBS
- Cable Entrance：2inlet,2outlet
- Install：Aerial, Direct-Burying, Wall-Mounting, Pipeline La
- Transport Package：Carton + Pallet
- Specification：CE, RoHS, SGS, ISO
- Trademark：OPTELEC
- Origin：China
- HS Code：85044020
- Production Capacity：5000PCS,Month
Description
Basic Info.
Model NO. JBS Cable Entrance 2inlet/2outlet Install Aerial, Direct-Burying, Wall-Mounting, Pipeline La Transport Package Carton + Pallet Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 85044020 Production Capacity 5000PCS/MonthProduct Description

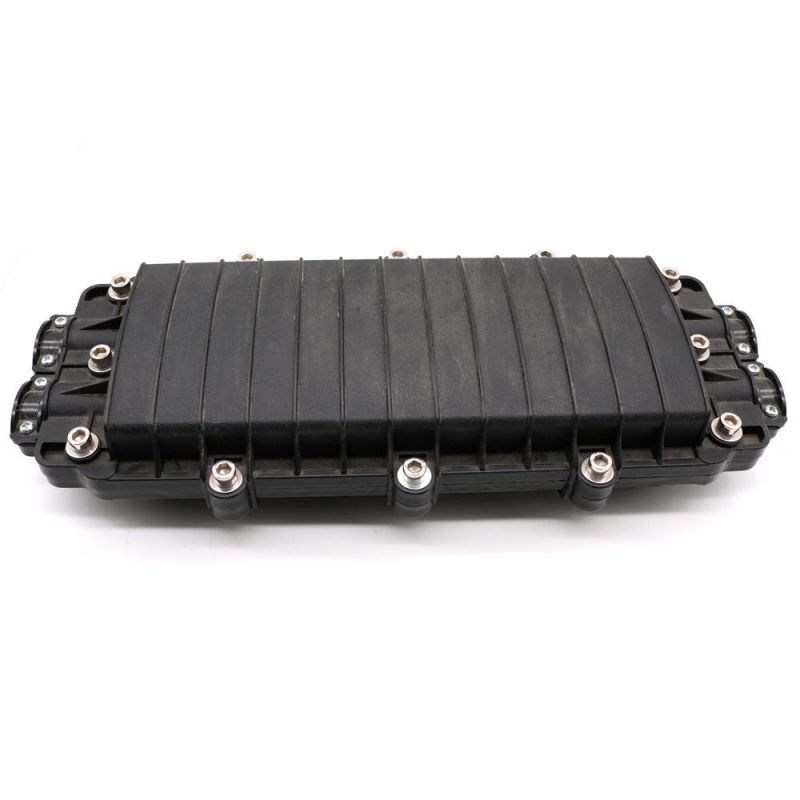

ADSS Cable Horizontal Type Connector Plastic Splice Closure
Description:
JBS series fiber optic splice closure protects fiber optic splice while providing fast and easy no-cost, re-entry. It can be installed on aerial, in manholes, ducts and mounted on poles. The closure provides reliable sealing performance, and fiber splicing point protected in a ribbed polypropylene dome that has high mechanical and environmental features. With optional entry ports, the closure is applicable to in-line or mid-span branching method. It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
Technical Data:
| Model | Max capacity | Entrance port | Cable diameter(mm) | Net weight (kg) | Sizes (L*W*H,mm) | Material |
| JBS0202H | 144 | 2in/2out | Φ7-φ25 | 1.6 | 460*185*110 | ABS or PC |
| JBS0303H | 144 | 2in/2out | Φ7-φ25 | 1.7 | 460*185*110 | ABS or PC |

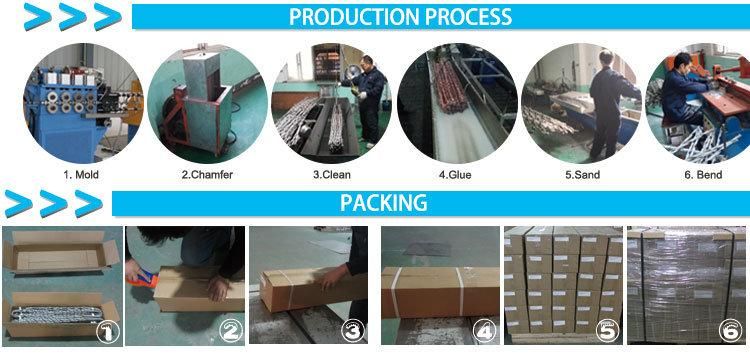

Production Line:
Contact Information:
