• Model NO.：hx cable
• Heating Element Size：55′(16.8m)To680′(207.3m)
• Bending Radius：1.5"(38mm)
• Cable Diameter：1,4"(6.5mm)
• Conductor Insulation：Floropolymer and XLPE
• Outer Insulation：PVC
• Max Rated Temp：Degree 105
• Min Installation Temp：Degree 5
• Transport Package：Innner Carton Master Carton
• Specification：cETLus CSA EAC CE
• Trademark：jiahong
• Origin：Anhui Wuhu
• Production Capacity：17000PCS Per Day

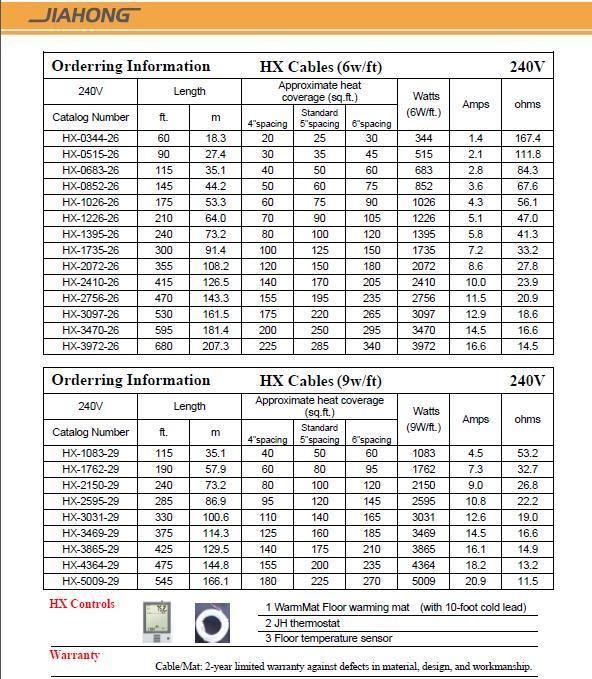

Basic Info.

Model NO. hx cable Heating Element Size 55′(16.8m)To680′(207.3m) Bending Radius 1.5"(38mm) Cable Diameter 1/4"(6.5mm) Conductor Insulation Floropolymer and XLPE Outer Insulation PVC Max Rated Temp Degree 105 Min Installation Temp Degree 5 Transport Package Innner Carton Master Carton Specification cETLus CSA EAC CE Trademark jiahong Origin Anhui Wuhu Production Capacity 17000PCS Per Day

Product Description

HX Storage Heating Cable System
HX Storage Heating System are a thick floor heating solution.HX Storage Heating System
are energized to warm a thermal mass below the floor surface. HX Storage Heating System
are the ideal way to TAKE ADVANTAGE OF LOCAL ON-PEAK ANDE OFF-PEAK ENERGY
PRICING.When the power system is in off-peak times, energy rates are lower. When
on-peak times resume,the HX Storage Heating System shuts off and the heat stored in the
floor gently emanates across the floor surface for hours. The HX Storage Heating System
provides an energy efficient and cost effective method of heating, in a clean and silent manner.
Ideal for new construction and many other applications
For use in concrete


Why Choose Jiahong :

22 years experience made us to be the biggest manufacturer of heating cable in Asia. The only one have CE UL ETL TUV CSA certificate  in Aisa. And 6-year's supplier of homedepot ,GE ,Grainger.

Products include heating mat ,heating cable ,thermostat and self regulating heating cable , All products approved and 100% inspected.Only adopts high-quality raw materials, key materials imported from American, Japan and Germany . It made our products with excellent quality .Better than any other competitors  in China .

25-year warranty for underfloor heating system, 10-year warranty for self-regulating  heating system; Deal and solve any of your concerns at the earliest time
Besides, we have a new cable only 2mm thickness.
