Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11

Zhejiang Kuayue Cable Co., Ltd.
  • Application:Local Communication Cable, Coaxial Cable, RF Cable, Rg11 75ohm Coaxial Cable
  • Conductor Material:Copper
  • Cover Material:PVC
  • Type:Coaxial
  • Material Shape:Round Wire
  • Conductor Type:Solid

Base Info

  • Model NO.:RG11
  • Wire Core Material:Bare Copper Wire
  • Certification:CE, ISO, RoHS
  • Model:Rg11 75ohm Coaxial Cable
  • Brand:Hanli or OEM
  • Transport Package:305m,Box
  • Specification:1,1.63CU+F. PE+AM+B+PVC
  • Trademark:HANLI
  • Origin:Zhejiang
  • HS Code:8544200000
  • Production Capacity:2000000m,Month

Description

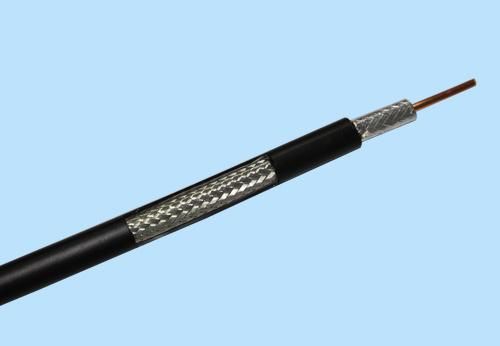

Inner conductorCopper cladsteel(CCS)1.63mmDielectricLowdensity PEΦ7.2±0.2mmTape shieldAluminum foil100%Outer conductor(shield)Aluminum wire96x0.12mmShield coverage 60%SheathPVC or LSZHΦ10.3±0.18mmMessenger(optional)Galvanized steel1.83mm/2.77mm

Electrical & Mechanical CharacteristicsImpedance75±5OhmNominal capacitance53pF/mVelocity of propagation66%Insulation resistance>2000Mohm.KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx.)116.4-140.4Kg/Km

AttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11
Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems/Rg11

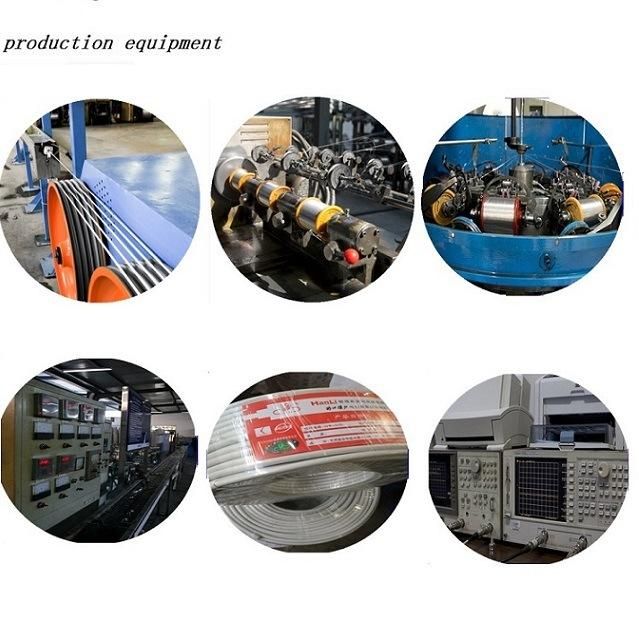

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
