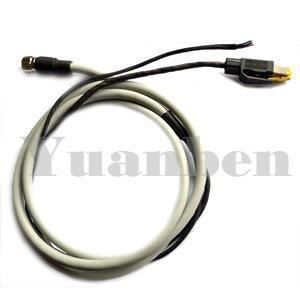

Rfh-114 Cable for RFID Reader
Shanghai Yuanben Magnetoelectric Tech. Co., Ltd.- Application：RF Cable
- Material Shape：Round Wire
- Certification：CE, ISO, RoHS
- Use：RFID Reader
- Transport Package：Carton
- Trademark：Yuanben
Base Info
- Model NO.：RFH-114
- Origin：Shanghai
- HS Code：85299050
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. RFH-114 Origin Shanghai HS Code 85299050 Production Capacity 50000PCS/YearProduct Description
RF-1232-114 is a 13.56MHz non-contact high frequency RFID reader, which automatically read passive tags through RF signals, and access to label address and other related data, can work in a variety of harsh environments. The RFID reader can work in high-speed motion also, fast read ISO15693 tag. the operation is convenient, with the stallation of simple, stable and reliable performance, mainly used in intelligent parking lot, AGV unmanned station label and management system of electronic tag reading.| Operating Frequency | 13.56MHz |
| Transponder compatibility | ISO/IEC 15693 tag compliant |
| Reading Distance | 70-80mm |
| Communication Interface | RS232;USB2.0(Optional) |
| Signal indication | 2 LED (Red and green) |
| Power supply | 9-30VDC |
| Read rate | < 25ms |
| Housing color | Blue and black (black as induction surface) |
| Dimension | 80mm*80mm*40.5mm |
| Protection class | IP64 |
| Antenna | PCB |
| Housing material | PBT |
| Working temperature | -20ºC~+70ºC |
| Stock temperature | -30ºC~+85ºC |
| Working humidity | 10-90% |
