• Model NO.：CS-CB102
• Certification：TUV
• Wire Core Material：Red Copper Wire

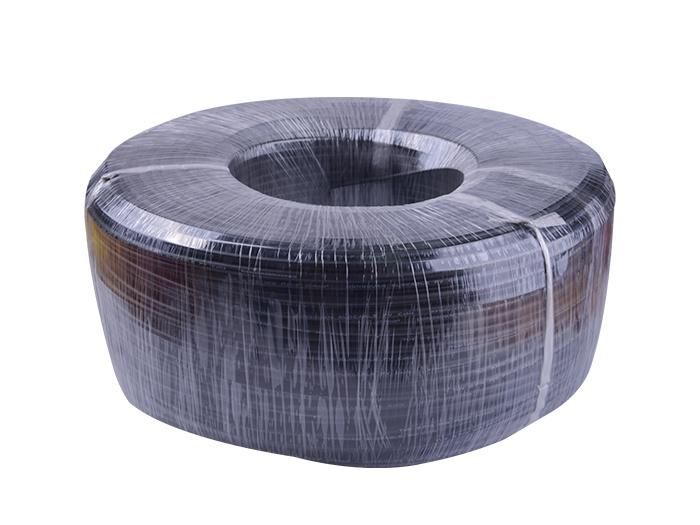

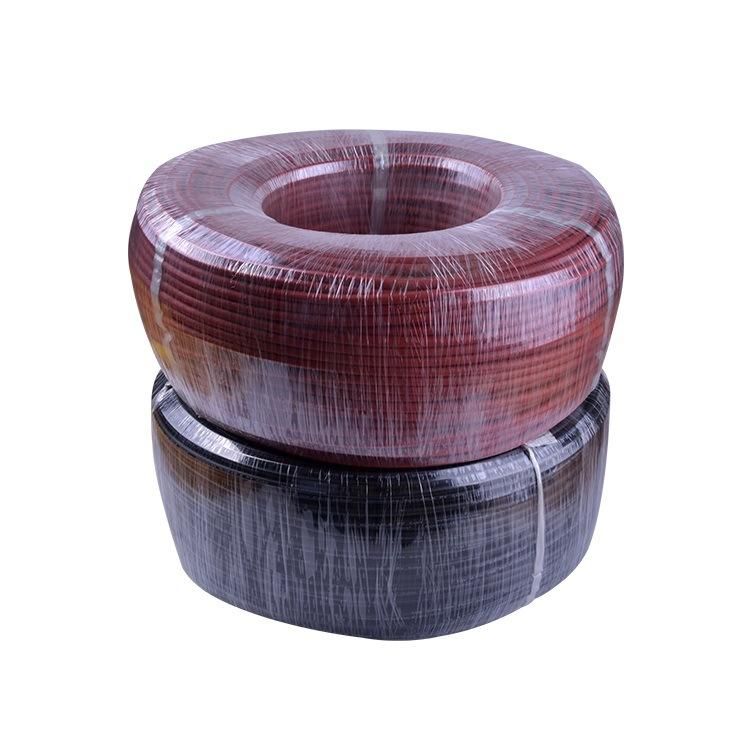

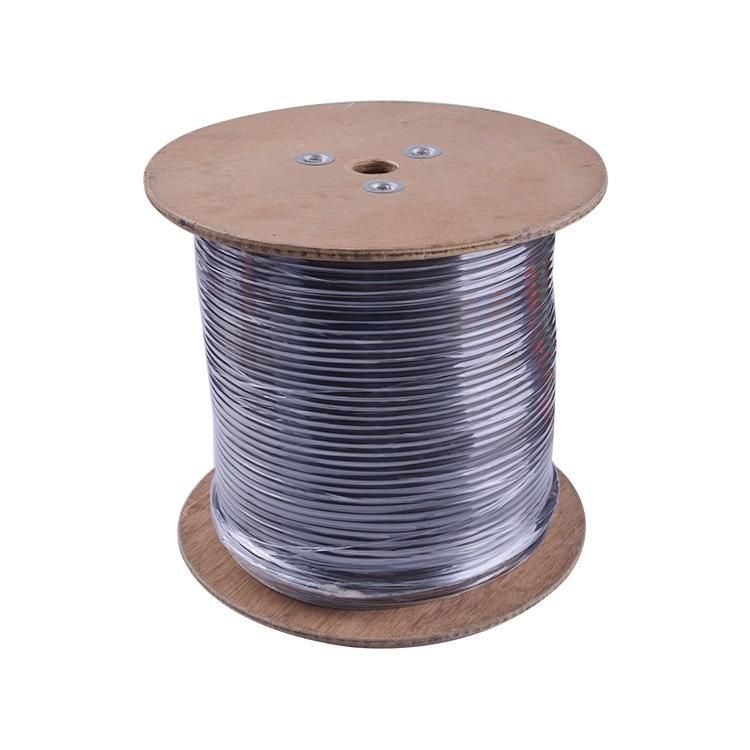

• Transport Package：Standard Export Packing
• Specification：PV
• Trademark：Changsong
• Origin：Zhejiang, China
• Production Capacity：50000PCS,Year

• Dual wall insulation.
• Electron beam cross-linked
• Excellent resistance to U.V, oil, greases, oxygen and ozone
• Excellent resistance to abrasion
• Halogen free, flame retardant, low toxicity
• Excellent flexibility and stripping performance
• High current carrying capacity
• TUV and CE approved



Technical Data:







 Wire: Copper (Class 5, tinned)

  UV Resistance

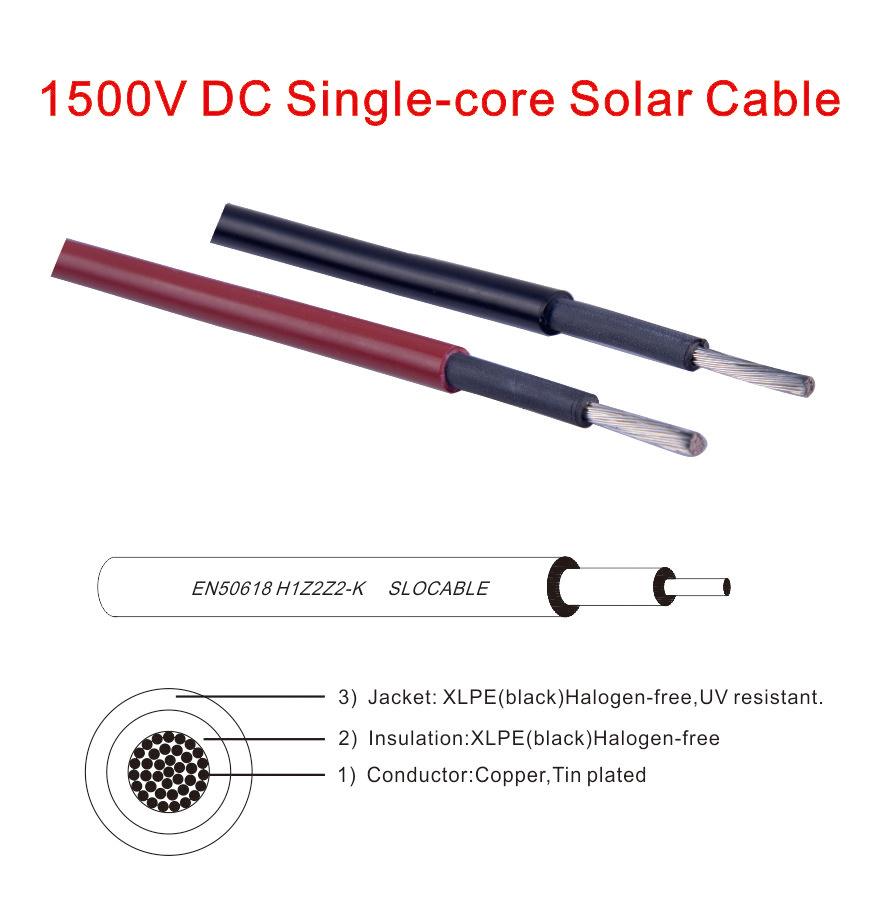

 Insulation Material: XLPE(XLPO)

  High wear and abrasion resistance

 Double Insulation

  Flame test according to:

  DIN EN 50265-2-1 UL1571(VW-1)

 Halogen-free

  Smallest Permissible Bending Radius: 5 x D

 High resistance against oil, greases, oxygen and   ozone

  Temperature Range: -40ºC ~ +90ºC

 Microbe-resistant

  Colours: Black, Red and Blue

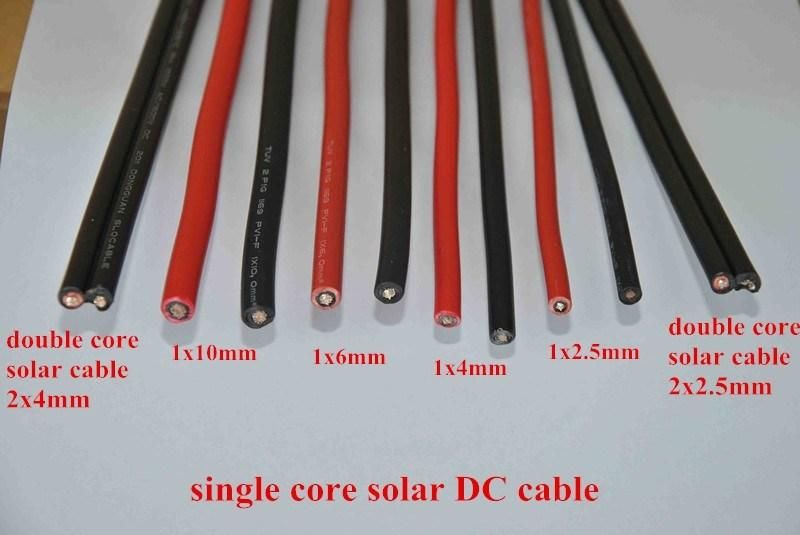

TypeCross Section

Conductor

Diameter

Conductor ResistanceOuter DiameterRated VoltageRated CurrentStrand Design mm²mmΩ/kmmmV / DCANO. x φ(mm)PV-1*2.5mm²2.52.08.065.31000/15003049*φ0.25PV-1*4.0mm²4.02.64.976.21000/15005056*φ0.285PV-1*6.0mm²6.03.33.527.21000/15007078*φ0.3PV-1*10.0mm²10.04.42.127.81000/15009574*φ0.4
