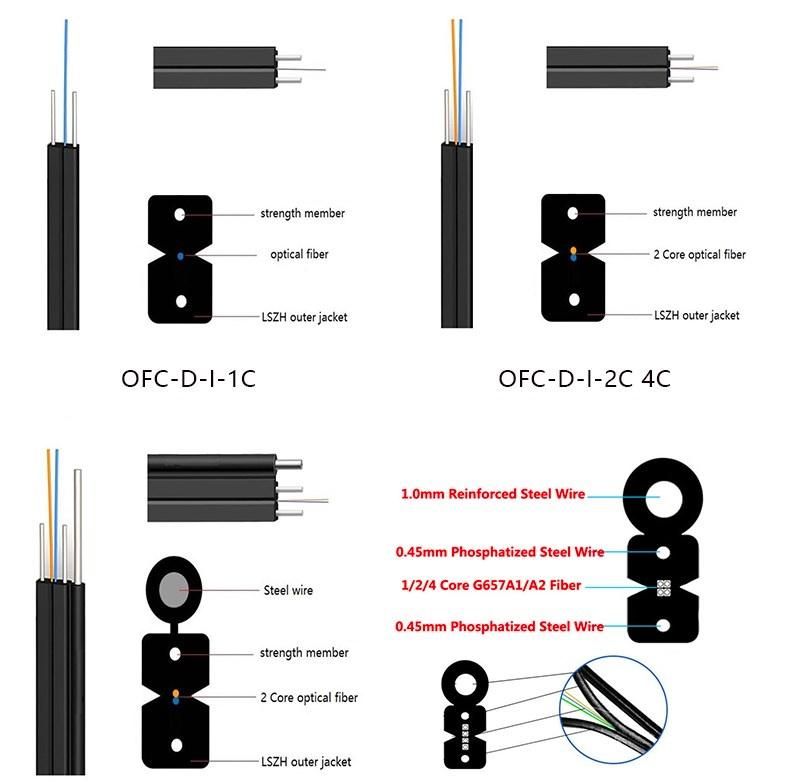

Indoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China Factory

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：SC-SC
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：Indoor FTTH Drop Wire Fiber Optic
  • Core：Multicore
  • Certification：RoHS, CE, ISO9001
  • Brand：Hanxin
  • Sheath Material：LSZH
  • Transport Package：2km,3km Per Roll
  • Specification：1-4C
  • Trademark：Hanxin
  • Origin：Zhejiang
  • HS Code：8544700000
  • Production Capacity：2000000m,Month

Description

Fiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130
 Mechanical PropertiesMinimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)

Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
 Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
                      100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in)
    Fiber ComplianceTemperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11    Cool BendIEC60794-1-2-E11
     Safety ComplianceGeneral Purpose GradeFlammability Test: OFN (UL1581)Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade

LSFROH Grade


FR GradeFlammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China FactoryIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China FactoryIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China FactoryIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China FactoryIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China FactoryIndoor FTTH Drop Wire Fiber Optic /Cable Network/ Communication Cable/ China Factory
    Standard Compliance
GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596
