• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS
• Color：Purple and White,Red and Black,Orange
• Inner Conductor：22AWG &18AWG&12AWG
• Nom. Outer Jacket：7.6mm
• Export Length：100m,Roll, 305m,Drum
• Pairs：2 Pairs
• Outer Jacket Material：LSZH
• Transport Package：Carton Box, Pallet
• Specification：2*22AWG+2*12AWG+18AWG BC PE
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

Basic Info.

Wire Core Material Tinned Wire Certification CE, ISO, RoHS Color Purple and White,Red and Black,Orange Inner Conductor 22AWG &18AWG&12AWG Nom. Outer Jacket 7.6mm Export Length 100m/Roll, 305m/Drum Pairs 2 Pairs Outer Jacket Material LSZH Transport Package Carton Box, Pallet Specification 2*22AWG+2*12AWG+18AWG BC PE Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 30000boxes/Month

Product Description

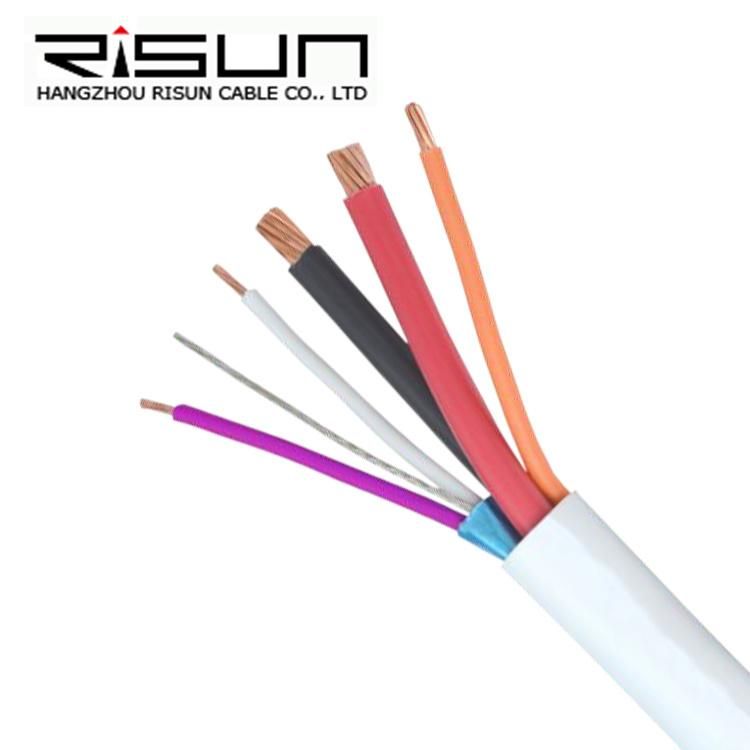

1 pair 22 AWG, 2 Core 12 AWg & 1 Core 18 AWG Multiconductor lighting & Automation cable
Specification:

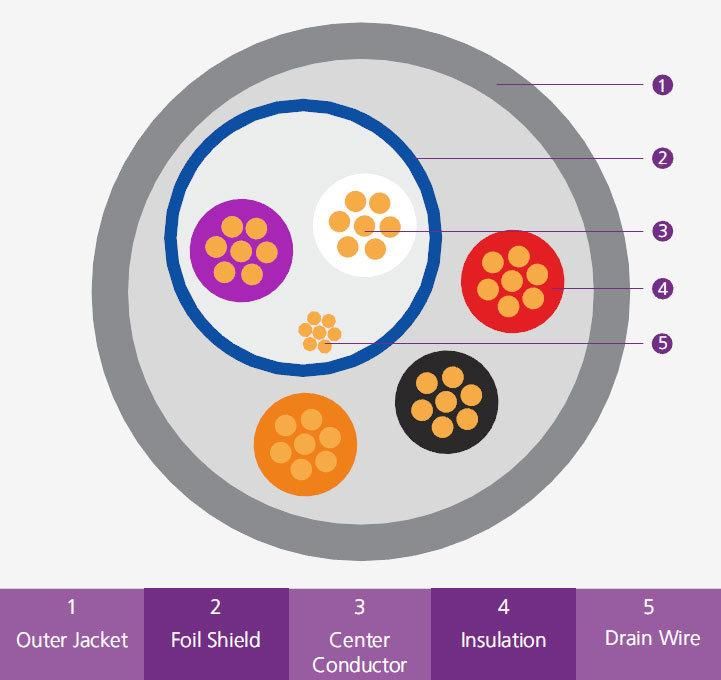

Construction & Physical Characteristics

Characteristic	Value
Conductor Material	Bare Copper
Conductor Size (Paired)	22AWG,7*30AWG(0.25mm)
Conductor Size(2 core)	12AWG,19*25AWG(0.81mm)
Conductor Size(1core)	18AWG,19*30AWG(0.25mm)
Insulation Material	PE( Polyethylene)
Insulation Material	100% Aluminum Foil-Polyester Tape
Drain Wire Material	Tinned Copper
Drain Wire Size	24AWG,7*32AWG(0.22mm)
Outer Jacket Material	LSZH
Outer Jacket Diameter	7.60mm
Outer Jacket Colour	White

Electrical & Mechanical Characteristics

Characteristic	Unit	Value
Nom.Capacitance Cond.to Cond.(22AWG)	pF/m	69.7
Nom. Conductor DC Resistance @ 20ºC (22 AWG)	Ω/Km	53
Nom. Conductor DC Resistance @ 20ºC (18AWG)	Ω/Km	21.4
Nom. Conductor DC Resistance @ 20ºC (12AWG)	Ω/Km	5.3
Maximum Operating Voltage	Vrms	300
Max. Recommended Current @ 25ºC (22 AWG)	Amps	3.8
Max. Recommended Current @ 25ºC (18 AWG)	Amps	7.2
Max. Recommended Current @ 25ºC (12AWG)	Amps	17.2
Minimum Bend Radius	mm	76
Max. Recommended Pulling Tension	N	863
Operating Temperature	ºC	-0 to +60

Electrical & Mechanical Characteristics

Individual Pair	Colour
Pair Type(22AWG)	Purple and White
2Core Type(12AWG)	Red and Black
1Core Type(18AWG)	Orange



Application:

Company Introduction




Packing:

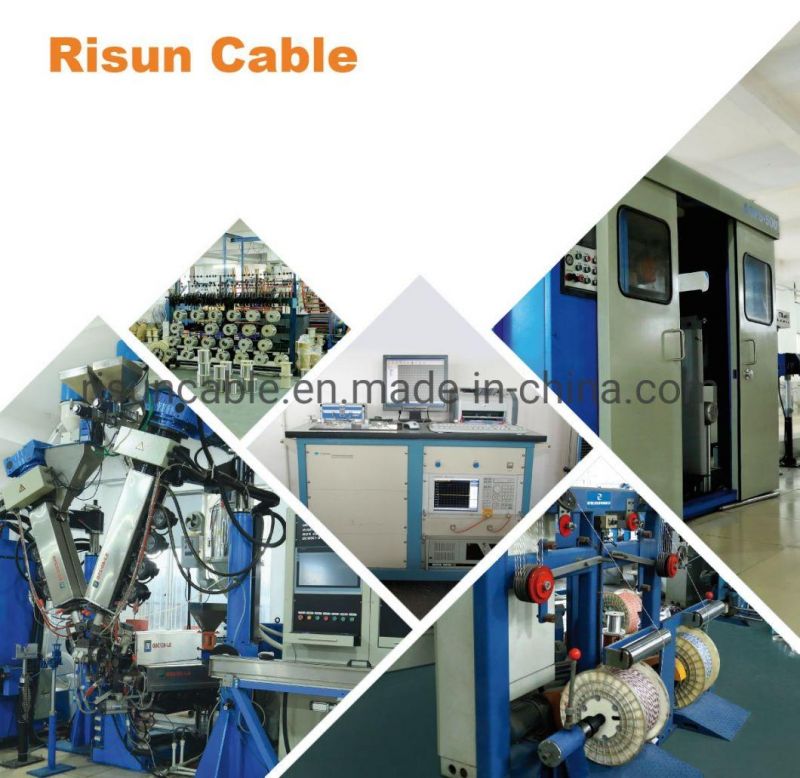

Production line:



FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
