High Quality Rg174 Coaxial Cable
Hangzhou Hongfeng Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Hongfeng
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：Rg174
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS, UL
- Brand：Hongfeng
- HS Code：85442000
- Production Capacity：30, 000piece,Year
Description
Basic Info.
Model NO. Rg174 Wire Core Material Tinned Wire Certification CE, ISO, RoHS, UL Brand Hongfeng HS Code 85442000 Production Capacity 30, 000piece/YearProduct Description
Basic Info
Model NO.: RG174 Dual
Wire Core Material: Bare Copper Wire
Certification: RoHS, CE, ISO9001, UL, CCC
Brand: Hongfeng
Inner Conductor: 7/0.16mm CCA/CCS/Cu
Dielectric: Spe/Fpe
Al Foil: Bonded, Non-Bonded, Single, Double
Braiding Wire Material: Cu,Al-Mg, Tc
Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
Braiding Net: 48,64,72,80,96,128 and More
Coverage: 40%,50%, 60%, 80% and More
Jacket: PVC or Lszh
Certificate: UL CE RoHS
Used for: CCTV, CATV
Trademark: FULSAN
Transport Package: Plastic Drum/Wooden Drum
Specification: CE, ROHS, UL
Origin: China
HS Code: 854442
Product Description
High Quality Coaxial Cable Dual RG174 / RG174 Dual cable / RG174 Twin Cable
1. Specifications:
1) 2x(7x0.16mmBare Copper+1.52mmFoamedPE+A/P/A+60%TinnedCopperBraiding +2.54mmPVC)
2) Customers' specifications are welcomed
2. Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 85%
Capacitance: 110pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
1MHz: 1.9dB 1000MHz: 25.94dB
10MHz: 2.92dB 1200MHz: 28.60dB
50MHz: 5.49dB 1450MHz: 31.65dB
100MHz: 8.13dB 1800MHz: 35.56dB
200MHz: 11.25dB 2250MHz: 39.62dB
400MHz: 16.01dB
700MHz: 21.52dB
900MHz: 24.53dB

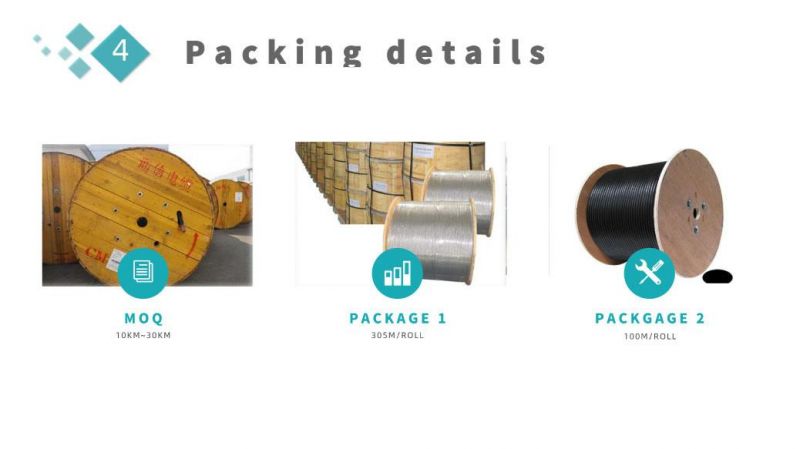

3. Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll.
Other lengths available according to client's Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing available according to client's Request.
| Attenuation | [@68o F. (20o C. )] |
| Frequency (MHz) | Nom. (dB/100 ft. ) |
| 10 | 2.99 |
| 100 | 9.50 |
| 400 | 22.57 |
| 1000 | 36.60 |
| 2000 | 51.85 |
| 3000 | 64.05 |
| RG174 Coaxial Cable |
Construction
| Center Conductor: | 7X0.16 BC/CCS |
| Dielectric: | 1.90mm Solid PE |
| Braid Coverage: | 90% TC |
| Jacket: | 2.7+0.10mm PVC |
| Jacket Thickness: | 0.5mm |
