• Model NO.：ABC cable
• Wire Core Material：Aluminium 1350
• Certification：ISO, CCC
• Model：ABC
• Brand：Yifang
• Standard：IEC 60502 & Tnb Specification
• Transport Package：Wooden Drum
• Specification：16mm2 to 150mm2
• Trademark：yifang
• Origin：China
• HS Code：8544609000
• Production Capacity：10000m Per Week

Basic Info.

Model NO. ABC cable Wire Core Material Aluminium 1350 Certification ISO, CCC Model ABC Brand Yifang Standard IEC 60502 & Tnb Specification Transport Package Wooden Drum Specification 16mm2 to 150mm2 Trademark yifang Origin China HS Code 8544609000 Production Capacity 10000m Per Week

Product Description



600/1000V ABC Aerial Bundled Cables to AS/NZS 3560.1 (AL/XLPE)

Application

The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Standard

• TNB Specification
• IEC 60502

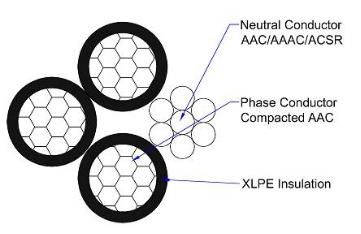

Construction

Application The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl. Standard AS/NZS 3560.1 Construction Conductor (for either phase, neutral or street lighting) The conductors shall be of aluminium 1350 wires and are compacted circular stranded (RM). Insulation XLPE. Assembly The cores shall be laid up with a left-hand lay. Dimensions

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2x16 RM	4.4	78	15.0	140
2x25 RM	7.0	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19.0	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550
4x16 RM	8.8	74	18.1	290
4x25 RM	14.0	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28.0	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84.0	280	43.9	2020
