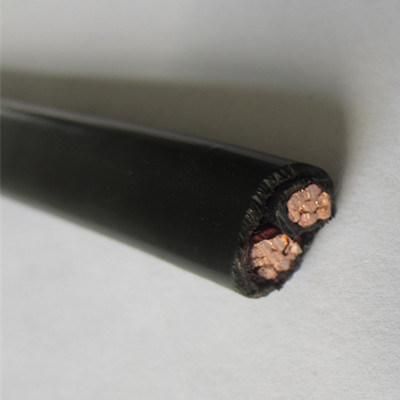

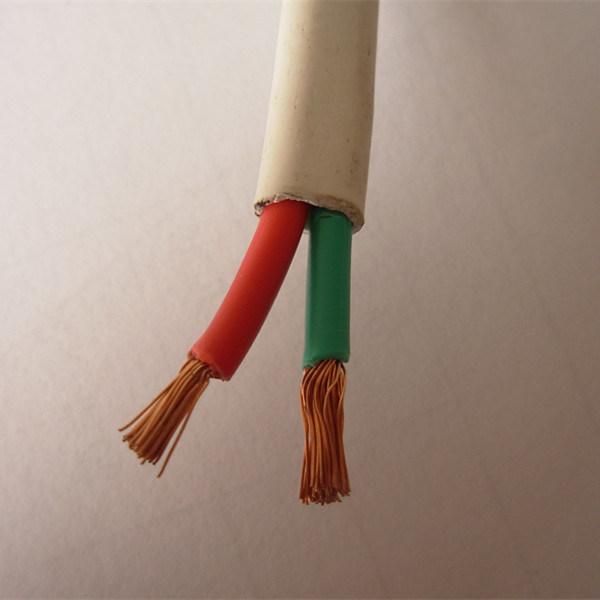

Building Wire Household Flat Cable 2 Core 2.5mm2 450/750V Flat Copper Wire
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground, Hourse Wiring
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Flat Cable
- Material Shape：Round Wire
- Range of Application：Indoor or Outdoor Housing
- Certification：ISO9001, CE, UL, CCC, VDE
- Brand：Yifang
- Standards：BS 6500,BS7919,309 Y,Ts 9760, IEC 227, VDE 0281
- Conductor：Stranded Copper
- Cores Number：Two Core

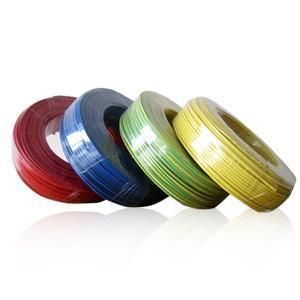

- Color：Red Balck Blue Green Yellow White Yellow,Green
- Standard：IEC 60227
- Insulation：PVC Compound

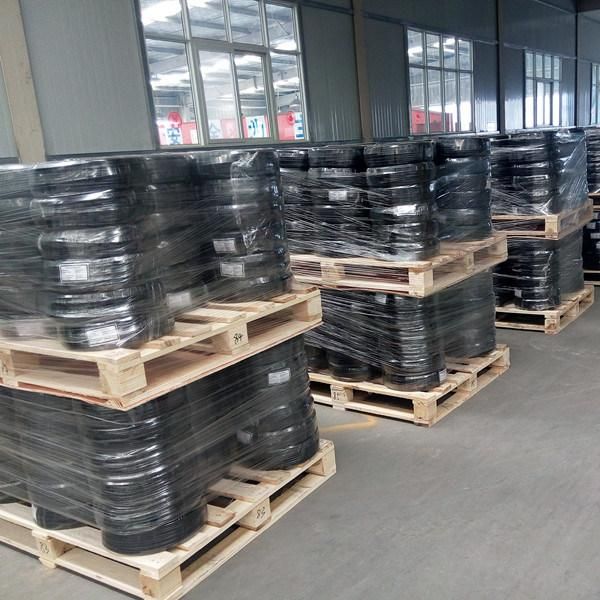

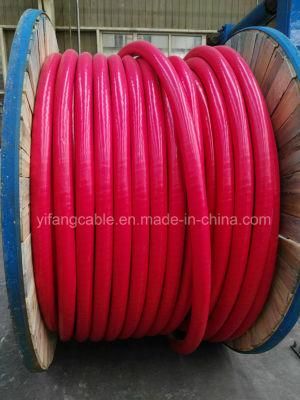

- Transport Package：Coil, Roll, Reel, Drum. 100m,Roll or More
- Specification：2X2.5+1.5
- Trademark：Yifang cable
- Origin：China
- HS Code：8544492100
- Production Capacity：60000km,Year
Description
Jacketmm2 Conductor type Nos Dia Od Nominal Thickness mm Nominal Thickness Od kg/km 0.75 1 1 0.98 0.98 0.7 0.8 4.05 12.80 1 1 1 1.13 1.13 0.7 0.8 4.20 15.54 1.5 1 1 1.38 1.38 0.7 0.8 4.45 20.81 1.5 2 7 0.52 1.56 0.7 0.8 4.63 21.37 2.5 1 1 1.78 1.78 0.8 0.8 5.06 32.75 2.5 2 7 0.67 2.01 0.8 0.8 5.29 33.50 4 1 1 2.26 2.26 0.8 0.9 5.74 48.23 4 2 7 0.85 2.55 0.8 0.9 6.03 49.06 6 1 1 2.76 2.76 0.8 0.9 6.24 67.79 6 2 7 1.04 3.12 0.8 0.9 6.60 68.92 10 2 7 1.35 4.05 1.0 0.9 7.95 114.94
