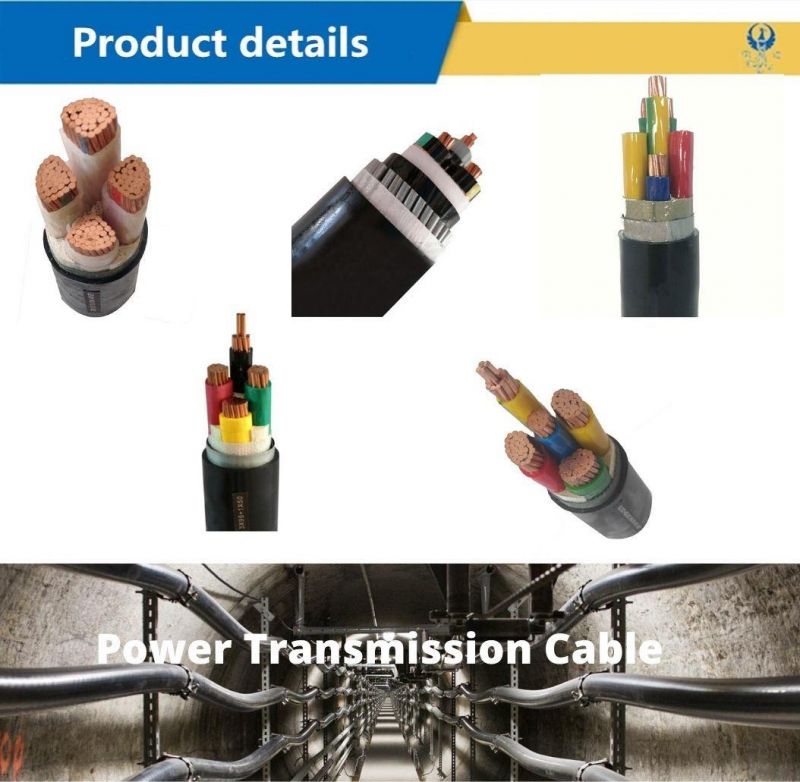

• Model NO.：Power Cables
• Certification：ISO, CCC, CE
• Model：60227 IEC
• Brand：Feng Da
• Colour：Red,Green,Blue,Black,White,as Request
• OEM/ODM：Yes
• Flame Test：Yes
• Transport Package：Rolls or According to Customer′s Request
• Trademark：feiya
• Origin：Tianjin, China

ELECTRICAL CHARACTERISTICS

• Operating Voltage, Uo/U :   0.6/1KV
• Operating Temperature : -15'C to 90'C
• Final Short Circuit Temperature : 250′ C
• Test Voltage : 3.5kV for 5 minutes
• Current Carrying Capacity
  1.  Clipped Direct (Ref Method C)
     • One 3 or 4-Core Cable, 3-Phase A.C : 73A
  2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)
     • One 3 or 4-Core Cable, 3-Phase A.C : 78A
  3. Direct in Ground or in ducting in ground, in or around building (Ref method D)
     • One 3 or 4-Core Cable, 3-Phase A.C : 58A

REFERENCE STANDARD

• Design Specification: IEC60502-1
• Conductor: IEC60228, BS EN60228
• Flame Retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE

• Minimum Bending Radius(mm): 8 x cable overall diameter
• Max. Pulling Tension (N/mm2) : 70
