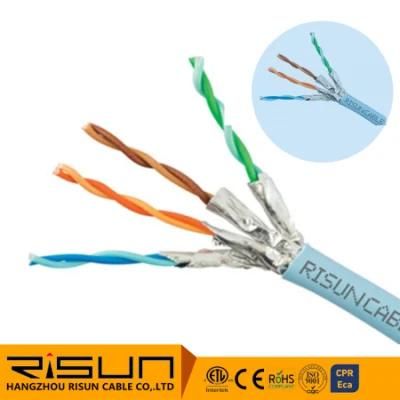

F/FTP 4 Paires Grade 3 Satellite Ethernet Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
- Conductor Material：Copper
- Material Shape：Round Wire
- Conductor Type：Solid
- Certification：CE, ISO, RoHS, CCC, CPR
- Insulation：Fpe
Base Info
- Shield：Aluminum Shield
- Jacket：LSZH
- Conductor 1：0.56+,-0.01m
- Conductor 2：0.58+,-0.01mm
- Transport Package：305m,Wooden Drum
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Shield Aluminum Shield Jacket LSZH Conductor 1 0.56+/-0.01m Conductor 2 0.58+/-0.01mm Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
DescriptionCable consisting of insulated conductors copper foamed polyethylene and LSOH outer sheath.
Manufactured according to ISO/IEC 11801 & ANSI/TIA-568-C.2, IEC 60332-1.
Configuration
1. Conductor1: 0.56±0.01mm Bare copper
Conductor2: 0.58±0.01mm Bare copper
2. Insulation: 1.30±0.05mm FPE
3. Shield: Al-laminated plastic foil overall
4. Sheath: LSZH
5.Fire Rating: B2ca s1d0
Application
Digital TV distribution (CATV, TNT), Satellite 2200 MHz, Ethernet 100 Mbps, telephony + ADSL on RJ-45 socket (UTE C 90483 compliant)

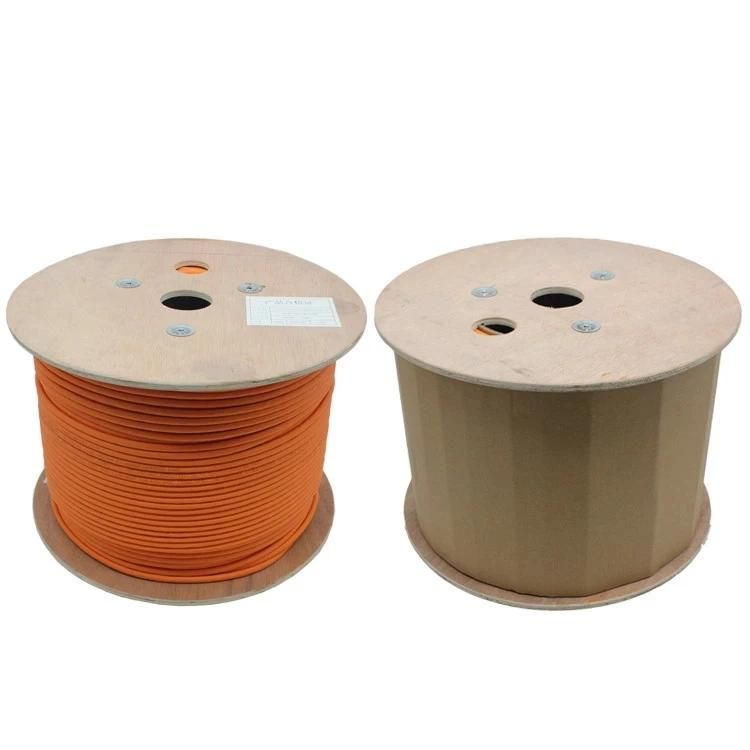

Packing
1) packing lengths: 305m/wooden drum,500m/wooden drum or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

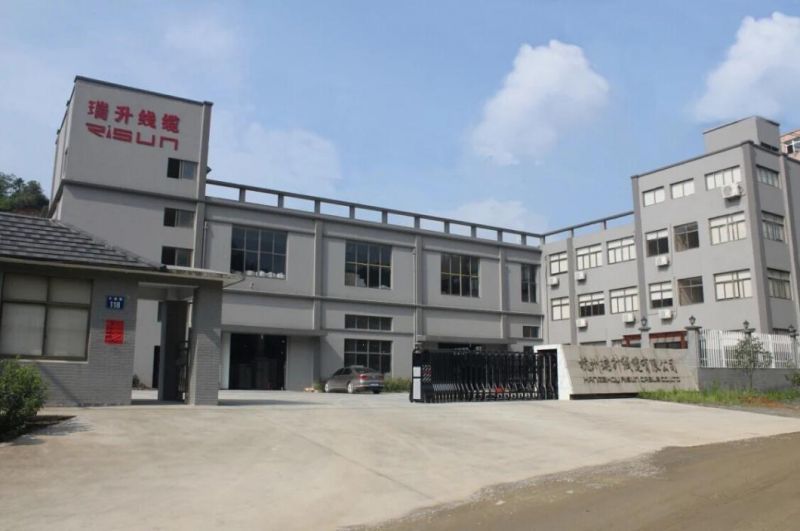

Company Profile
Hangzhou Risun Cable Co.,Ltd is a professional manufacturer and exporter of LAN CABLE, ALARM CABLE,TELEPHONE WIRE and COAXIAL CABLE in China since year of 2007.
More than 90% of our products for export market. We are an ISO certified company and our products approved by CE, RoHS, ETL, CPR. Our main products include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable and telephone cable, audio cable, Jumper wire, KNX cable, RG59, RG6, RG11, RG58/U, KX6, RG213 etc. Our brand is RISUN, and we also accept OEM serivce.
As a professional manufacturer and exporter,we can provide the extra savings to our customers with the best quality to help our customers grow their business and market shares.

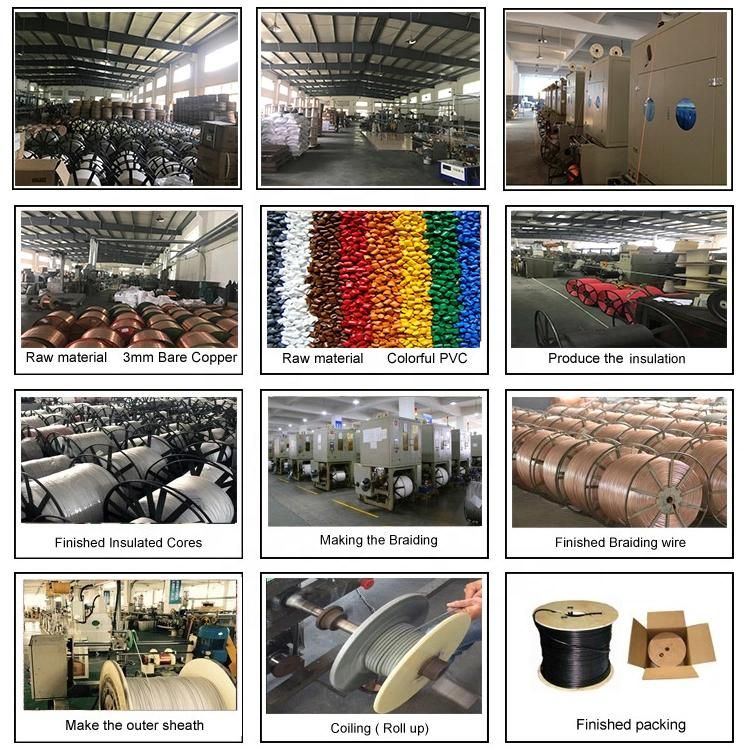

process of production
Certificate
