LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

GENERAL CLAD CO., LTD.

Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
Conductor Material：Copper
Cover Material：PVC
Type：Cat 7
Material Shape：Round Wire
Conductor Type：Solid

Base Info

Model NO.：CAT7
Wire Core Material：Bare Copper Wire
Certification：CE, ISO, RoHS
Color：Grey, Blue, Black, Yellow, Red etc
Transport Package：Carton Box
Specification：305m,roll
Trademark：General Clad
Origin：China
Production Capacity：10000 Boxes, Month

Description

LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

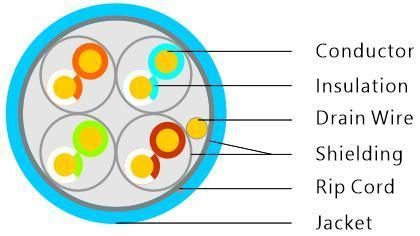

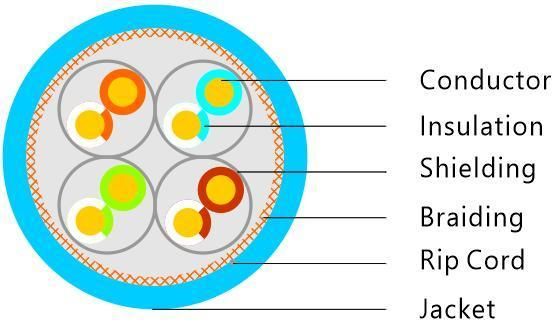

DescriptionRated temperature -20- 75ºC
Standard UL444, TIA/EIA568B, ISO/IEC11801
23 awg wire gauge
Single bare copper conductor
Insulated high-density polyethylene
Line of 4
Sheathed PVC
Tear rope as neededElectrical propertiesCharacteristic impedance of 1.0~ 500.0mhz (ohms) 100±15
1.0~ 500.0mhz delay difference (ns/100m) ≤45
At 20ºC, the maximum dc resistance of the conductor (ohms/km) is ≤65.8
Conductor resistance imbalance (%) ≤1.0Application100 Base - T4
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM
packaging
305 m/easy pull box/shaft (as required)

Package
LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable

LAN Cable Cat5e CAT6 CAT7 CAT8 FTP UTP Network Cable
