• Shield：Al,Foil
• Drain Wire：1,0.5tc mm
• Jacket：PVC
• Specification：2x0.5, 2x1.0, 2x1.5, 2x2.0, 2x2.5
• Trademark：ExactCables
• Origin：Ningbo
• Production Capacity：5000000000

Basic Info.

Shield Al/Foil Drain Wire 1/0.5tc mm Jacket PVC Specification 2x0.5, 2x1.0, 2x1.5, 2x2.0, 2x2.5 Trademark ExactCables Origin Ningbo Production Capacity 5000000000

Product Description

2x1.5mm2 LPCB Approved Screened Solid Copper Fire Resistant Silicone Rubber Low Smoke LSZH LSOH Fire Alarm Cable


Application
For fixed installation typically in fire alarm and emergency lighting circuits where circuit integrity must be maintained. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Standards
BS 7629-1
BS 6387 C W Z
BS 5839-1 clause 26.2
BS EN 50200 PH30
BS 8434-1

Conductor
Solid plain copper conductors

Insulation
Special compound silicone and rubber mix

Separator
Unspecified material

Screen
CAM (Collective Aluminium Mylar)

Drain Wire
Tinner Copper

Sheath
LSZH (Low Smoke Zero Halogen)

Sheath Colour
Red or White

Core Identification
2 Cores: Brown, Blue
4 Cores: Blue, Brown, Black, Grey

Voltage
300/500V

Temperature Rating
-30°C to +70°C

Minimum Bending Radius
6 x overall diameter


Dimensions

Part N0.	Conductor Spec.	Dia. (+/-5%)mm	Nominal Weight (kg/km)	Remark
ECFC039	2×1.50mm2	8.07	101.39
ECFC040	2×2.50mm2	9.09	141.86
ECFC041	4×1.50mm2	9.08	150.51
ECFC042	4×2.50mm2	11.05	222.00

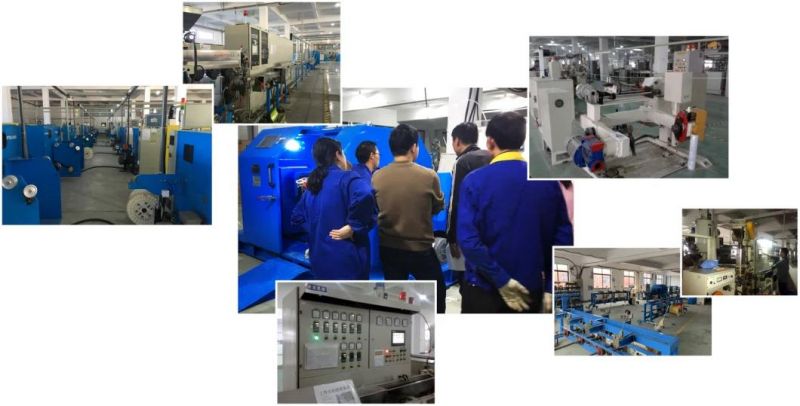

PRODUCTION EQUIPMENT

QUALITY POLICY

Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following:

• Maintain the ISO 9001 Quality Management System
• Continual review and improvement of the effectiveness of the Quality Management System
• Provide all necessary resources to manufacture quality cable
• Create a safe and technologically advanced working environment
• Respect for the environment in which we operate
• Training and communication to keep employees informed and involved

Every employee has the responsibility to ensure that these requirements are met.

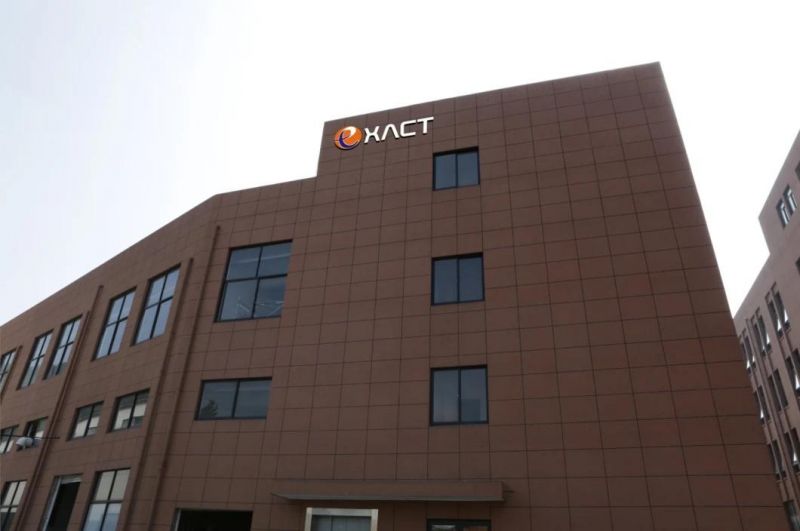

COMPANY INFOMATION
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industr y in China. We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.

Our factory is located in zhejiang Ningbo which is a beautiful port city. We have very advanced testing machines, including Agilent and HP analyzer. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
