• Model NO.：Alarm Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL, CPR
• Brand：Risun or OEM
• Drain Wire：Tc
• Shield：Polyester Tape,Al Foil
• Transport Package：100m
• Specification：2C X 16AWG (2 X 1.5MM2)
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：20, 000km,Month

Basic Info.

Model NO. Alarm Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL, CPR Brand Risun or OEM Drain Wire Tc Shield Polyester Tape/Al Foil Transport Package 100m Specification 2C X 16AWG (2 X 1.5MM2) Origin Zhejiang, China HS Code 8544491100 Production Capacity 20, 000km/Month

Product Description

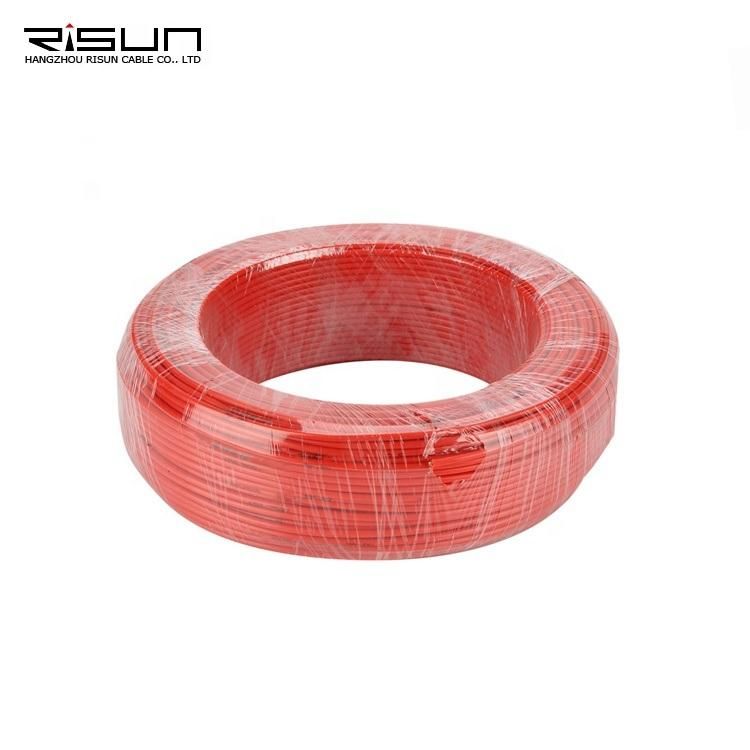

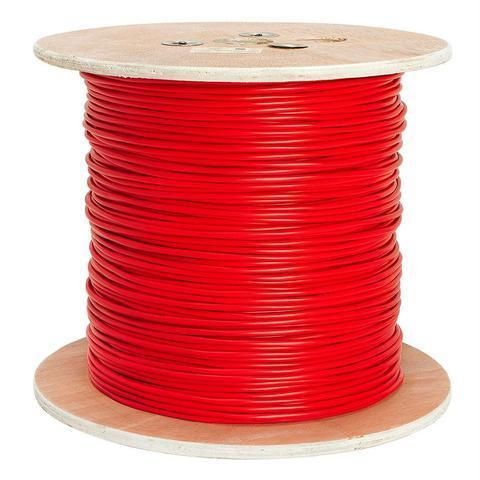

1.5mm2  FIRE ALARM CABLE

construction:

Conductor	16 AWG Bare Copper
insulation	PVC
Color Code	1.Black  2.Red
Drain Wire	TC
Jacket	PVC/LSZH
Color	Red

Electrical Properties :

Temperature Rating	-20ºC ~ +75ºC
Operating Voltage	300 Volts max
Capacitance	62 pf/ft nom
Impedance	30 Ohms nom
DC Resistance	4.05 Ohms/M'' at 20ºC

packing

1) packing lengths:100m/Reel305/Wooden Drum,other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.



Company Profile

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and  telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.In the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.
