• Model NO.：aerial bundle cable
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Color：Black, Red
• Warranty：One Year
• Transport Package：Wooden Drum or Steel & Wooden Drum
• Specification：1 core or muti cores
• Trademark：HONGDA
• Origin：China
• HS Code：8544492100
• Production Capacity：5000km,Month

Number of Cores x Nominal Cross SectionOverall DiameterWeightMaximum Conductor ResistanceMinimum Breaking LoadCurrent RatingNo.×mm²mmKg/KmΩ/KmkNA1x16 RM8,07419102,5721x25 RM9,010612004,01071x95 RM15,43330,32013,72401x185 RM21,06110,16428,73891x240 RM24,08010,12537,24672x16 RM15,614719102,5722x25 RM18,020812004,01072x70 RM25,45050,44310,72054x16 RM18,828619102,5724x70 RM31,81.0090,44310,72054x95 RM37,81.3320,32013,72404x70 + 1x25 RM36011050,443/1,20010,7/4,0205/1074x70 + 2x25 RM40012170,443/1,20010,7/4,0205/107

Product Type

For aerial power transmission2PE     insulated aerial cable3XLPE  insulated aerial cable4Steel reinforced aluminum wire with PVC insulated aerial cableFor aerial power transmission, able to bear moderate pulling force.

Production Range

Rated voltage: 0.6/1 (1.2) kV

No. of cores: 1~5, 3+1, 4+1, 3+2

Nominal cross sectional area: 10~240mm2

Construction

Phase Conductor

Round stranded (compacted or non-compacted) 1350-H19 aluminum or Copper conductor, AAAC, ACSR etc.

Neutral Conductor (Messenger Conductor)

Round stranded (compacted or non-compacted) 6201 AAAC or AAC, ACSR

Street Lighting Conductor

Round stranded or compacted aluminum conductor

Insulation

LDPE, HDPE, XLPE, PVC (UV-resistant)

(Remark: This is just the normal construction. HONGDA CABLE can also design and produce the cables according to your special requirement.)

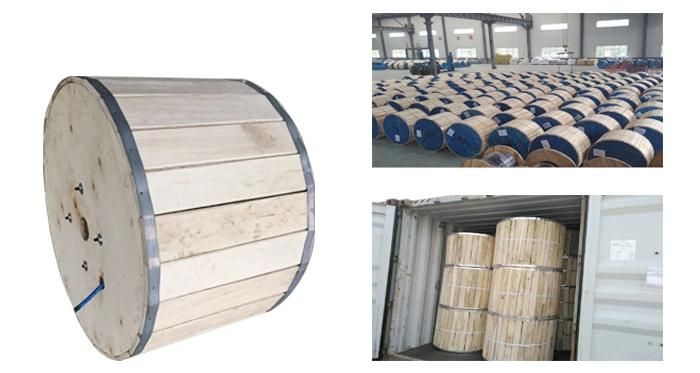

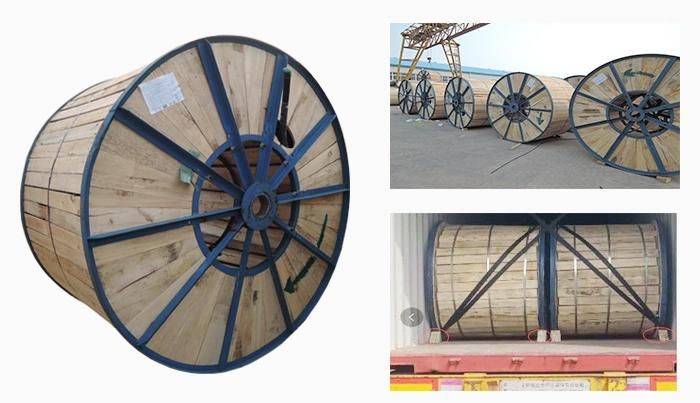

PACKAGE

Standard export wooden drum or steel & wooden drum packing.




DELIVERY TIME

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Packaging Details:Wooden drums,steel wooden drums or as your requirement
