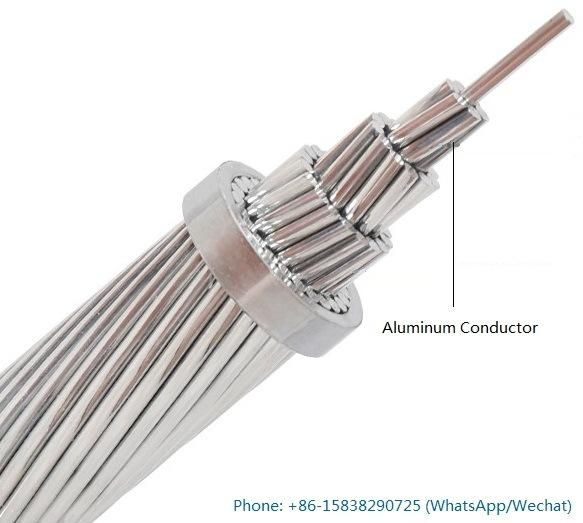

Coreopsis 1590mcm AAC All Aluminum Conductor

Henan Hongda Cable Co., Ltd.

Type：Bare
Conductor Type：Stranded
Application：Overhead, Underground
Conductor Material：Aluminum
Sheath Material：No
Insulation Material：Bare

Base Info

Model NO.：Coreopsis 1590MCM
Material Shape：Round Wire
Range of Application：Low and Medium Voltage Overhead Lines
Certification：ISO9001, CCC
Brand：Hongda
Conductor：All Aluminum - AAC

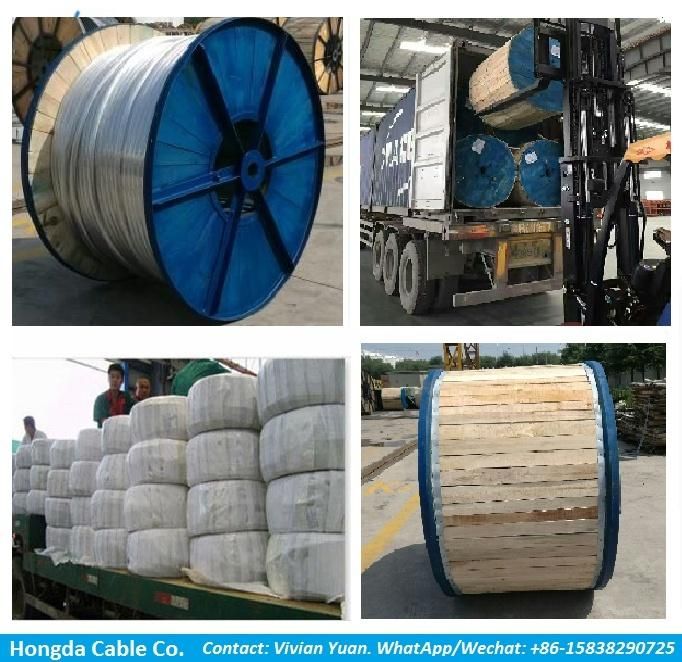

Transport Package：Steel & Wooden Drum or as Customer Require
Specification：Coreopsis 1590MCM
Trademark：Hongda Cable
Origin：China
HS Code：76149000
Production Capacity：1500km,Month

Description

Technical Specifications:Size AWG:1590Stranding:61Stranding Class:AADiameter Individual Wire Aluminum (Inches):0.1614Diameter Complete Cable (O.D.) (Inches):1.454Cross Sectional Area (Sq. Inches):1.249Weight Per 1000ft Total (Lbs.):1493Rated Breaking Strength (Lbs.):27000Resistance DC 20°C Per 1000ft:0.0109 ?Resistance DC 75°C Per 1000ft:0.0141 ?Allowable Ampacity 90C (Amps):1333 Amps Coreopsis 1590mcm AAC All Aluminum Conductor

Coreopsis 1590mcm AAC All Aluminum Conductor

Coreopsis 1590mcm AAC All Aluminum Conductor

Coreopsis 1590mcm AAC All Aluminum Conductor
