• Model NO.：4 core XLPE Cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE
• Model：Low Voltage XLPE Power Cable
• Brand：OEM
• Product Name：50mm2 175mm2 250mm2 4 Core XLPE Cable Yjv
• Conductor：99.99% Copper
• Packaging：Wooden Drum
• Transport Package：Wooden Drum
• Specification：4 Core 95mm Copper Cable
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

Basic Info.

Model NO. 4 core XLPE Cable Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model Low Voltage XLPE Power Cable Brand OEM Product Name 50mm2 175mm2 250mm2 4 Core XLPE Cable Yjv Conductor 99.99% Copper Packaging Wooden Drum Transport Package Wooden Drum Specification 4 Core 95mm Copper Cable Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/Month

Product Description

1.Brief Introduction :

      cable   is  Cu  conductor XLPE  insulated  PVC sheath Electric power cable   for laying buildings,inducts , kin tunnels,direct in ground and under water,.

For laying indoors , in tunnels, in ducts. Able to bear extermal mechanical force but not large pulling forces. Single core cables are impermissible to be laid in magnetic ducts.

 2.Operating characteristics:

Rated power-frequency voltage u0/u:0.6/1 KV

Max permissible continuous operating temperature of conductor 90

Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm²

      The anbient temperature under installations should not be below 0

      The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter

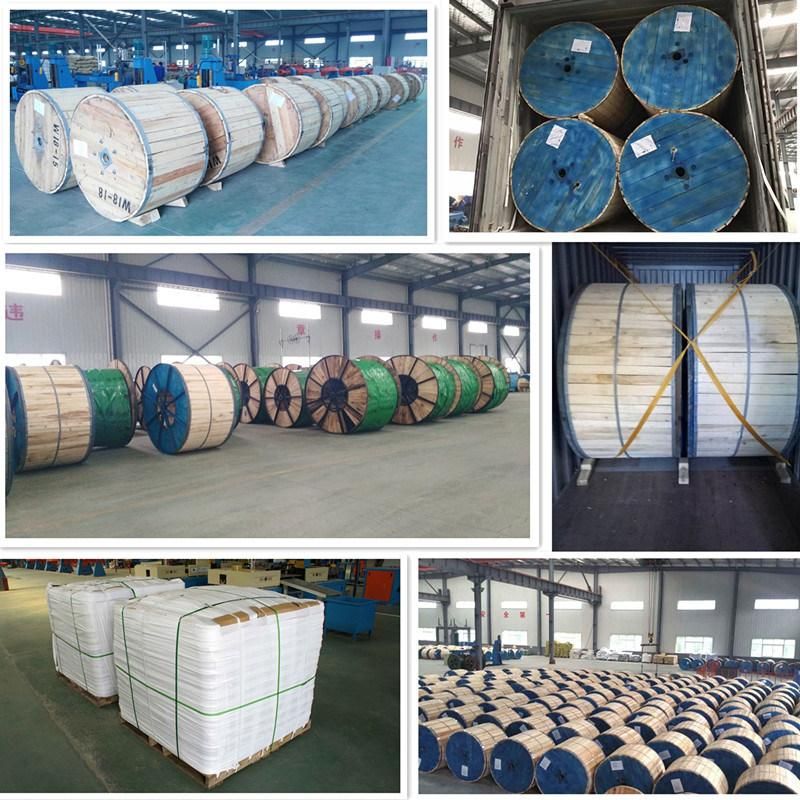

Packing shipping

Any problem and inquiry pls contact with Tina
