Electric Wire Tri-Rated BS H05V-K 1.5mm2 Flexible Cu PVC Insulation Aluminium Control Cable Electric Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：H05V-K
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description
DESCRIPTION AND APPLICATION
H05V-K are wiring cables with thermoplastic PVC-insulation for protected, stationary installation inside devices as well as inside or on lamps. Suitable for installation inside of closed conduits and cable ducting systems and on or under plaster, but only as part of signal or control circuits.
CONSTRUCTION
1.Conductor: Stranded bare copper, acc. to IEC 60228 Class 5
2.Insulation: PVC compound
STANDARD: EN 50525‐2‐31
CONDUCTOR: CLASS 5 IEC 60228
INSULATION: Type TI1 to EN 50363‐3 PVC
OPERATING TEMPERATURE: ‐5 to 70 °C
NOMINAL VOLTAGE: 300/500 V TEST VOLTAGE : 2,0 kV

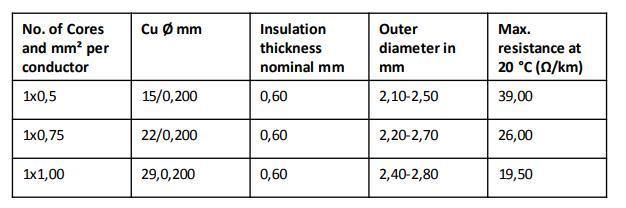

Type of the cables
