• Model NO.：10kv
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, RoHS
• Brand：Feibo
• Transport Package：Carton
• Trademark：FEIBO
• Origin：China
• HS Code：3917390000

Basic Info.

Model NO. 10kv Material Shape Flat Wire Range of Application Flame Retardant Certification ISO9001, RoHS Brand Feibo Transport Package Carton Trademark FEIBO Origin China HS Code 3917390000

Product Description

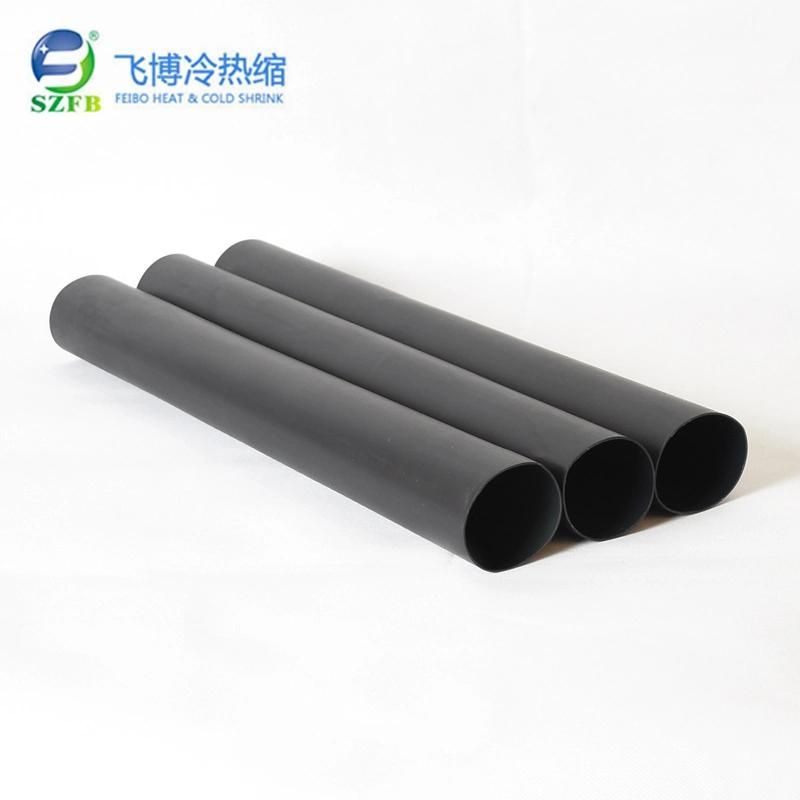

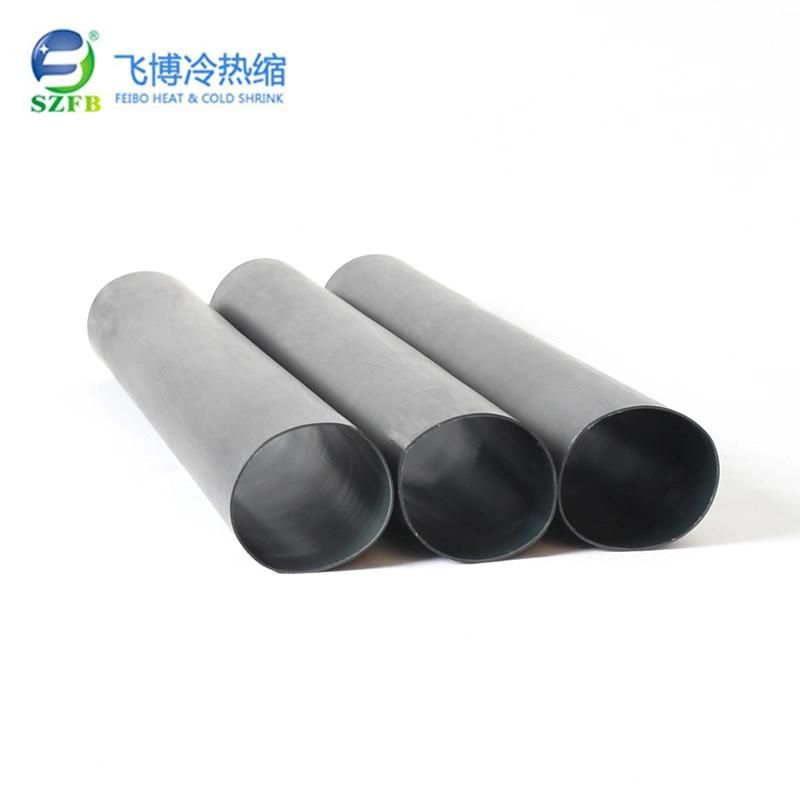

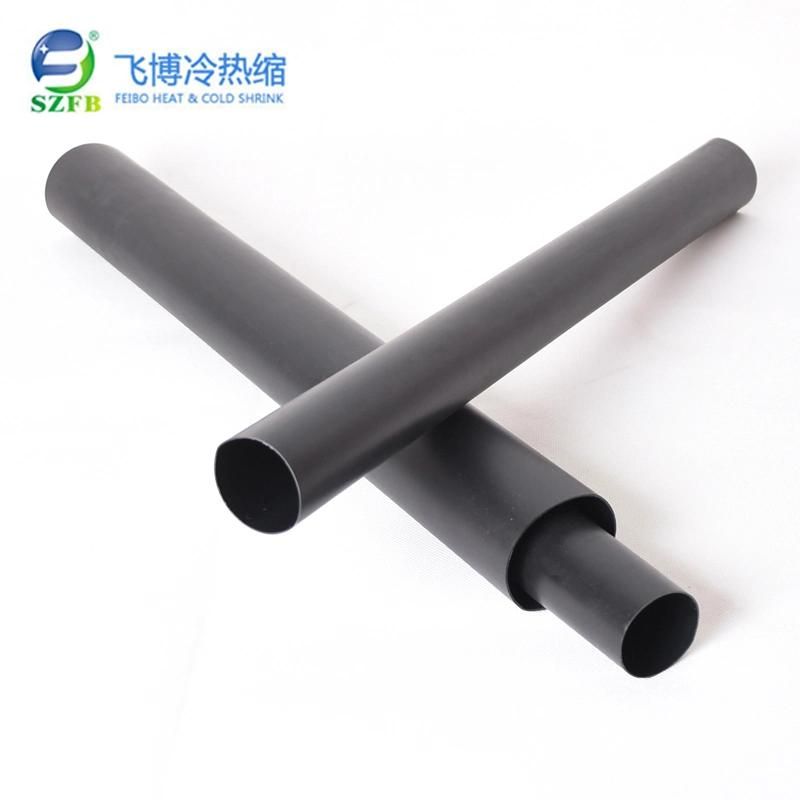

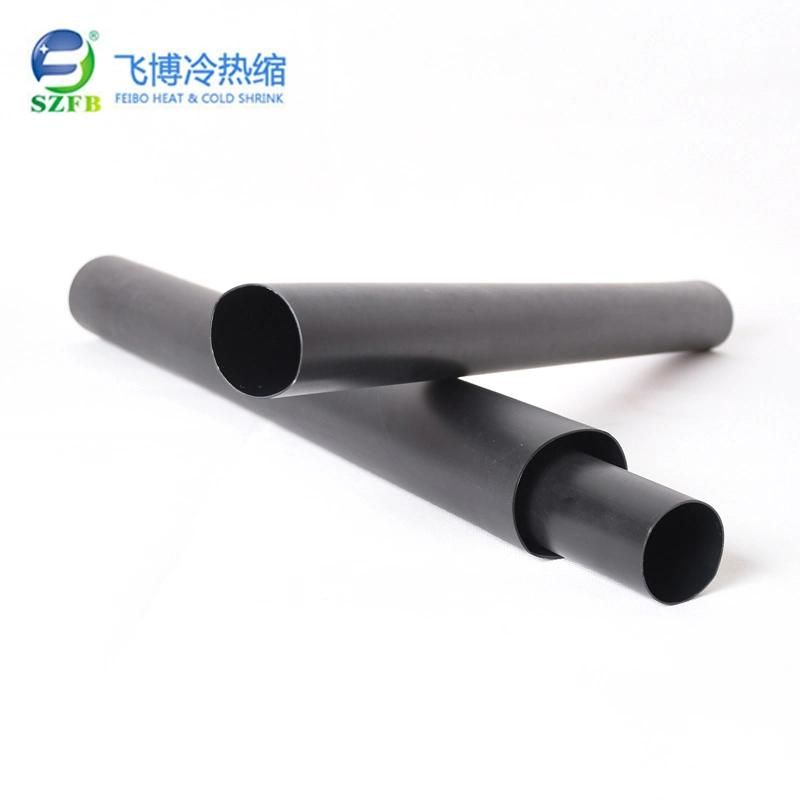

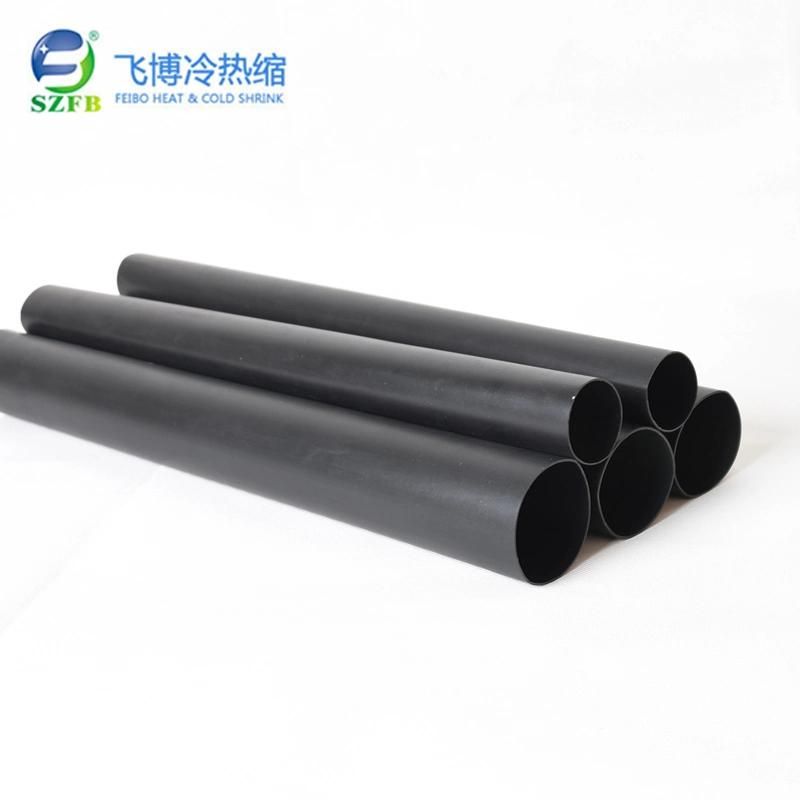

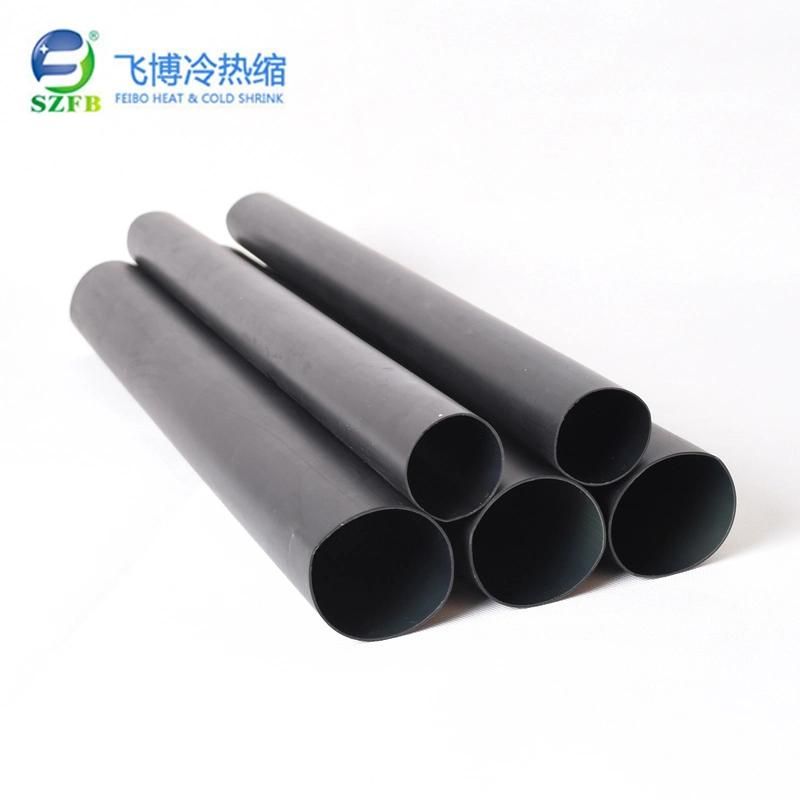

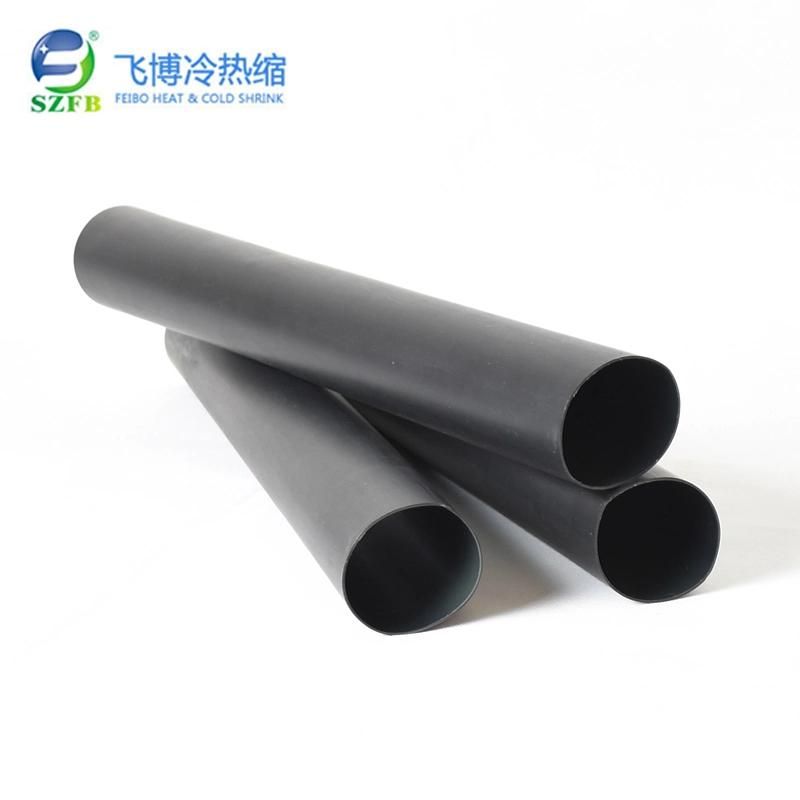

SUZHOU FEIBO adhesive PE Material 3:1 black with glue Dual wall heat shrink tubing
The outer wall is made of Polyolefin and with inner wall of hot melt adhesive. Suitable for electrical applications where good longitudinal water tightness is needed. High shrink ratio( 3:1 4:1), having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion. Designed to provide both insulation
and sealing for protected articles. Used to protect auto wires, shipping cable, bundle wires and metal tubes against water and moisture.

Features
Good electrical insulation and waterproof connection.

Various
Operating temperature: - 45°C to +125°C
Minimum shrink temperature: 80°C
Standard color: Black
Special colors: Red, blue, white, yellow, orange, green, clear


Specifications:

Standard: UL 224

Shrink ratio:3:1

Flame retardant out layer, environmentally friendly, UV resistant

Shrink temperature:80°C~110°C

Continuous operating temperature:-45°C ~125°C(-45°C ~105°C for clear )

RoHS compliant

.

Applications
- Protects and seals electronic components, wire splices, back end connectors and cable breakouts.
- High expansion ratio for repairing damaged wire and cable jacketing without removing connectors.
- Protection from fluids, moisture and corrosion in outdoor, automotive and marine applications.
- Rugged protection against abrasion, vibration and flexing.
