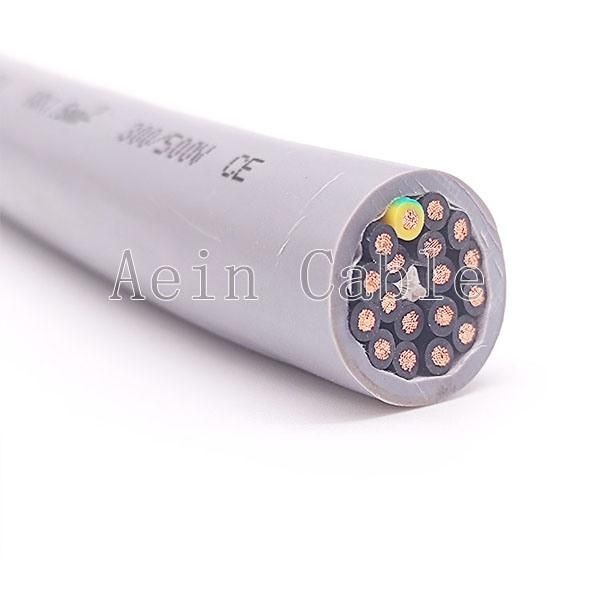

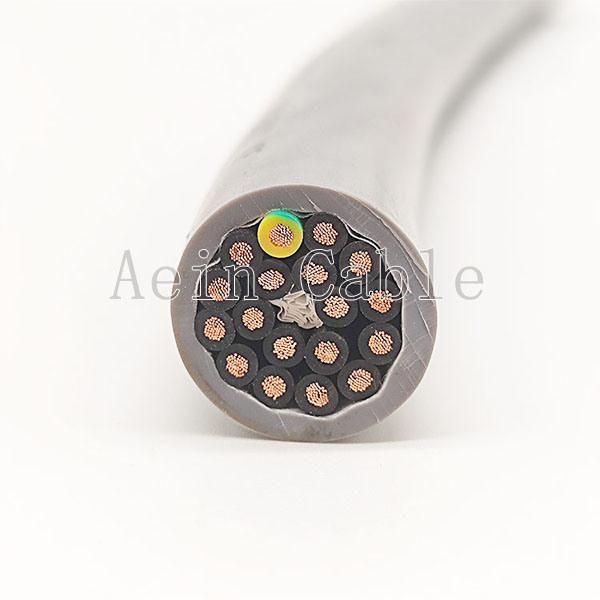

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：TPE
Insulation Material：PUR
Material Shape：Round Wire

Base Info

Model NO.：S 980 P Cable
Certification：ISO9001, CE, UL, CCC, RoHS
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

ItemTPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 VConductor

Bare copper strands

InsulationTPEWrappingNon-woven tapeOuter sheathPURPeak operating voltageMax. 350 V Testing voltage Core/core 2000 VCore numberMulticores (As client's requirement)Min. bending radiusContinuously flexible: 7,5 x dTemperature range

Fixed laying: -50/+90°C

Flexible application: -40/+90°C

Application

Flexible control cable (TPE/PUR) with numbered cores and flexibility at low temperatures. It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V

TPE/PUR Control Cable S 980 P Cable Flexible Control Cable 300/500 V
