Low Capacity Combined PUR Motor Connection Cable 0.6/1 Kv SL 871 C Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Tmpu
  • Insulation Material：Special Polymer
  • Material Shape：Round Wire

Base Info

  • Model NO.：SL 871 C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLow Capacity Combined PUR Motor Connection Cable 0.6/1 kV SL 871 C CableConductor

Bare copper strands

InsulationSpecial polymerStrandingControl cores: twisted to pairsWrappingControl cores: non-woven tapeScreenControl cores: tinned copper braidingWrappingControl cores: non-woven tapeStrandingScreened control pairs and supply cores twisted together with fillers in layersWrappingNon-woven tapeScreenOverall copper screenWrappingNon-woven tapeOuter sheathTMPUNominal voltageDIN VDE: 0.6/1 kVPeak operating voltageDIN VDE: max. 350 VTesting voltage

Supply cores:

core/core 4000 V

core/screen 4000 V



Control cores:

core/core 2000 V

core/screen 2000 V

Core numberMulticores (As client's requirement)Min. bending radius

Fixed laying: 5 x d

Flexible application: 10 x d

Continuously flexible: 12 x d

Temperature range

Fixed laying: -50/+90°C

Flexible application: -40/+90°C

Application

The low capacity combined PUR motor power/energy supply cable with overall copper screen 0.6/1 kV is UL recognized, CSA approval and suitable for cable tracks.

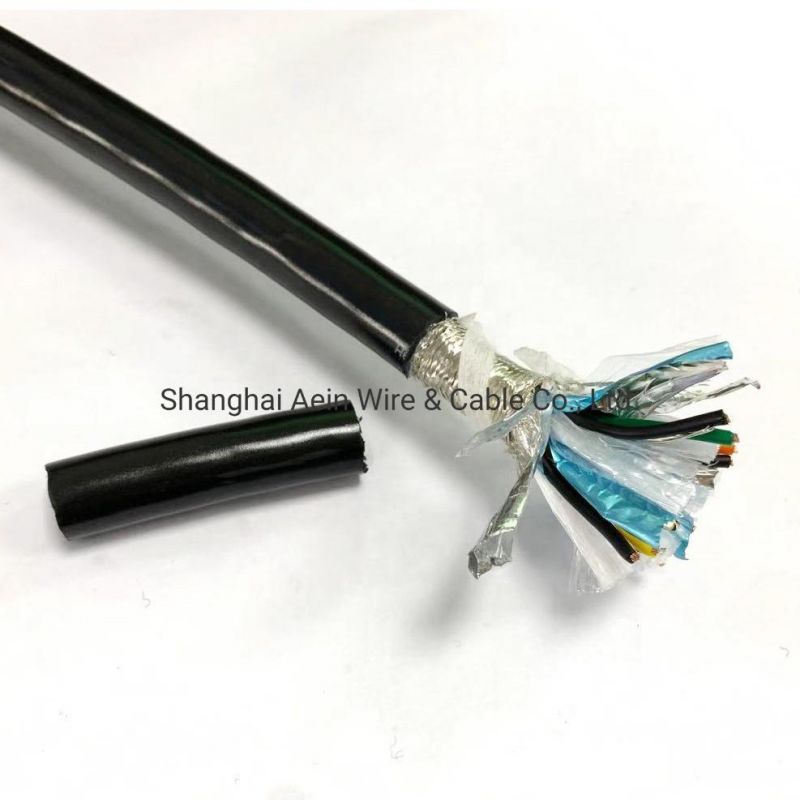

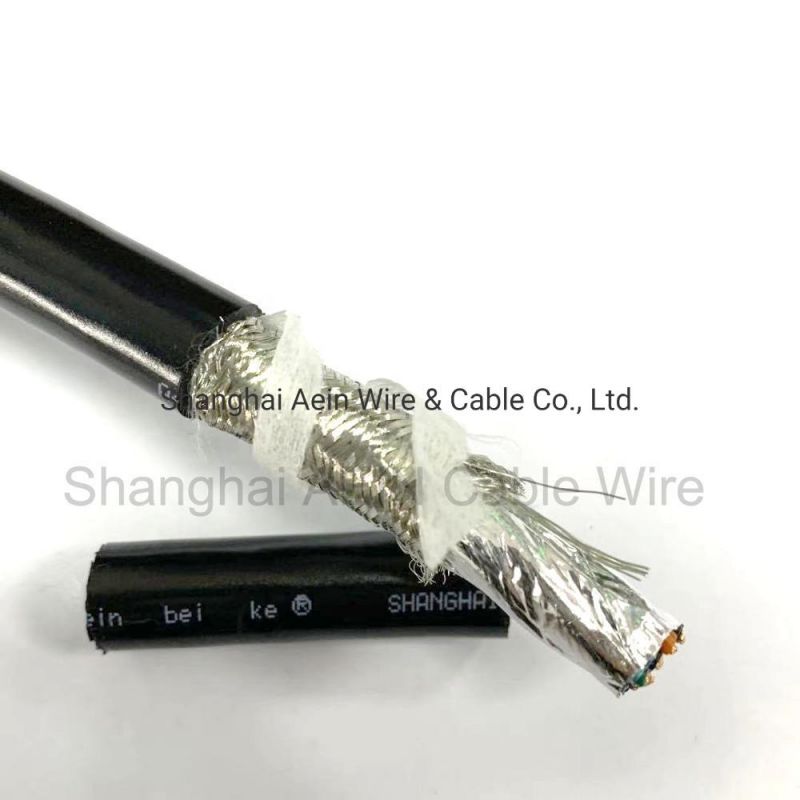

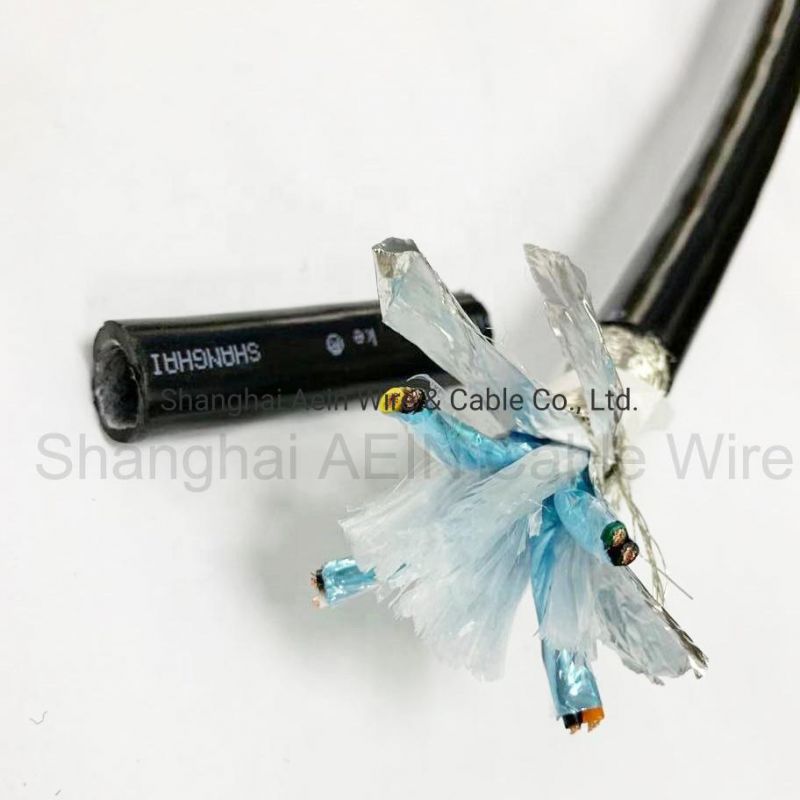

Low Capacity Combined PUR Motor Connection Cable 0.6/1 Kv SL 871 C CableLow Capacity Combined PUR Motor Connection Cable 0.6/1 Kv SL 871 C Cable
