• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE
• Model：Cu,XLPE,Cu Tape,PVC,Swa,PVC
• Brand：Yifang
• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：1X300mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Basic Info.

Wire Core Material Copper or Aluminum Certification ISO, CCC, CE Model Cu/XLPE/Cu Tape/PVC/Swa/PVC Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Specification 1X300mm2 Trademark Yifang Origin Henan Province, China HS Code 8544601200 Production Capacity 500 Kilometers/Month

Product Description

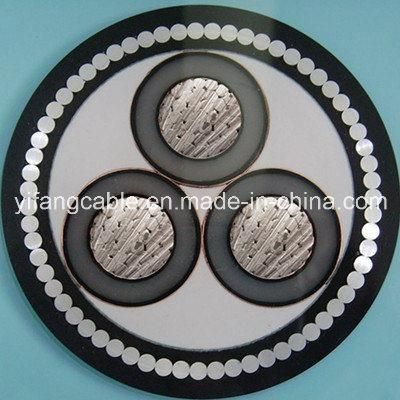

12/20kv XLPE Insulted Cable
"CE" approvered
Low voltage cable 0.6/1kv, 3*240mm, Anumina conductor, XLPE insulated PVC sheathed power low voltage cable

Low voltage cable
No. Of Cores: 3
Rated voltage: 12/20kv
Norminal thickness of insulation: 5.5mm
Approx. Overall diameter: 90.9mm
Max cable weight: 11339kg/km
Nominal cross sectional area of conductor: 1.5~400mm2

For XLPE insulated power cable, either chemical method or physical method is employer to transform the molecular structure of PE form chain into three-dimensional network, i. E. Thermoplastic PE is transformer into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which is higher than that of paper, PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Standard
The product is manufactured according to the standard of GB12706 or IEC, BS, DIN and ICEA upon request.

Applications
The product is suitable for use in power distribution lines or fixed installations with rated power frequency voltage up to and including 0.6/1kV

Operating characteristics
1, Rated power-frequency voltage Uo/U: 0.6/1kV
2, Max. Permissible continuous operating temperature of conductor: 90
3, Max. Short-circuit temperature of the conductor shall not exceed 250. (5s maximum duration ).
4, The ambient temperature under installation should not below 0
5, The bending radius of a cable should not less than 15 times of the cable diameter.

Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of Uo/U (Um)KV. Where:
Uo-The rated power-frequency voltage between conductor and earth or metallic scieen, for which the cable designed;
U-The rated power-frequency voltage between conductors, for which the cable designed;
Um-The maximum value of the highest system voltagefor which the equipment may be used.
