• Model NO.：abc cable 50mm
• Wire Core Material：Aluminum , AAC
• Certification：ISO, CCC, SGS
• Model：ABC Cable
• Brand：Hongda
• Standard：IEC60502, NFC33 209, BS 7870-5
• Packaging：Available on 500 Metre Wooden Drums
• Test Voltage：4kv
• Rated Voltage：0.6,1kv
• Transport Package：Wooden Drum or as Customer Requirement
• Specification：6mm2 to 120mm2
• Trademark：Hongda Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：1800km,Month

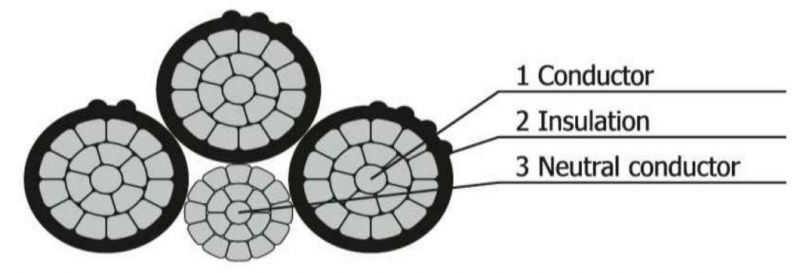

Conductor PhaseStranded All Aluminium conductor (AAC)Neutral/MessengerStranded All Alloy Aluminium Conductor (AAAC)InsulationExtrude of XLPE, capable for continous operation at maximum cable's temperature.

Properties:

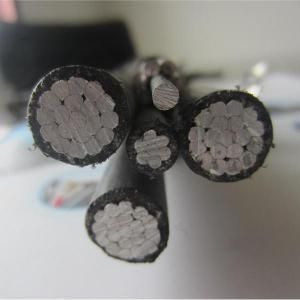

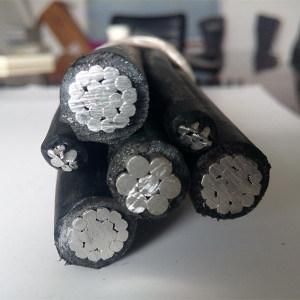

Aluminum XLPE cable Insulated Overhead ABC Cable
 Physical PropertiesCable sizeInsulation ThicknessApprox Maximum DiameterApprox. Net. WeightStandard LengthPhaseNeutral / MessengerPublic LightingPhaseNeutral/MessengerPublic Lightingmm2mmmmmmmmmmmmkg/kmm2x25+251.41.4-10.010.010.03385002x35+251.61.4-11.210.010.03945002x50+351.61.6-12.611.211.25265002x70+501.81.6-15.412.612.67605002x95+702.01.8-17.015.415.49755003x25+251.41.4-10.010.010.04525003x35+251.61.4-11.210.010.05375003x50+351.61.6-12.611.211.27175003x70+501.81.6-15.412.612.610575003x95+702.01.8-17.015.415.413605003x25+25+2x161.41.41.210.010.08.16025003x35+25+2x161.61.41.211.210.08.16875003x50+35+2x161.61.61.212.611.28.18675003x70+50+2x161.81.61.215.412.68.112075003x95+70+2x162.01.81.217.015.48.115105003x25+25+161.41.41.210.010.08.15275003x35+25+161.61.41.211.210.08.16125003x50+35+161.61.61.212.611.28.17925003x70+50+161.81.61.215.412.68.111325003x95+70+162.01.81.217.015.48.11435500
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information
