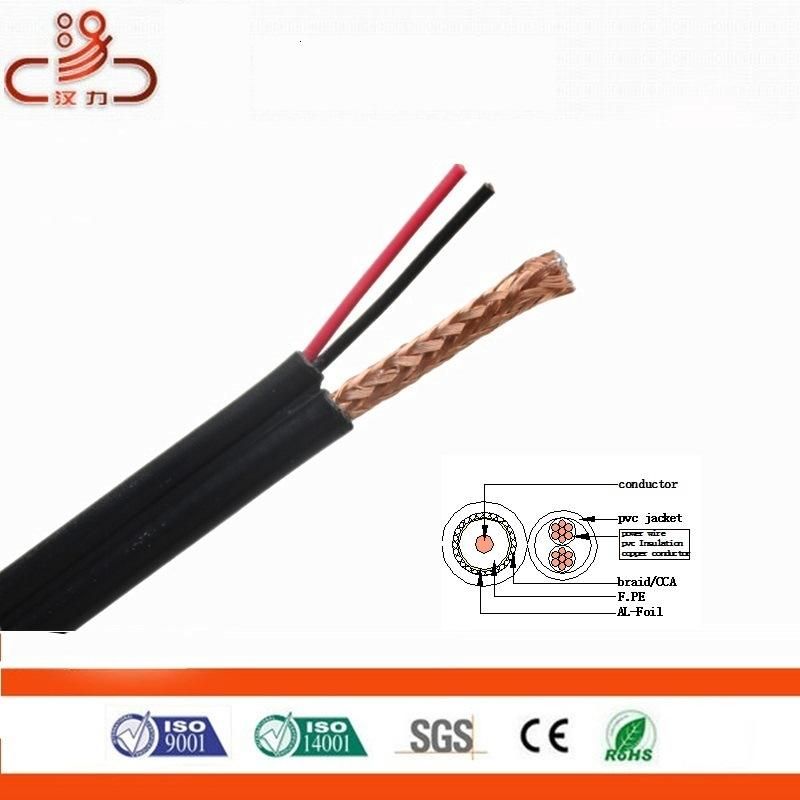

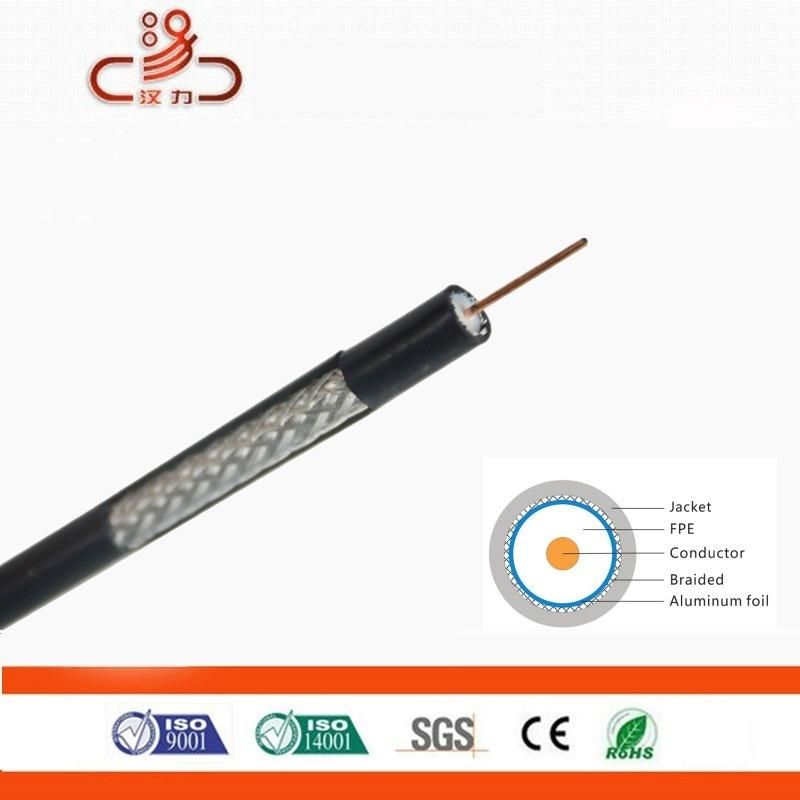

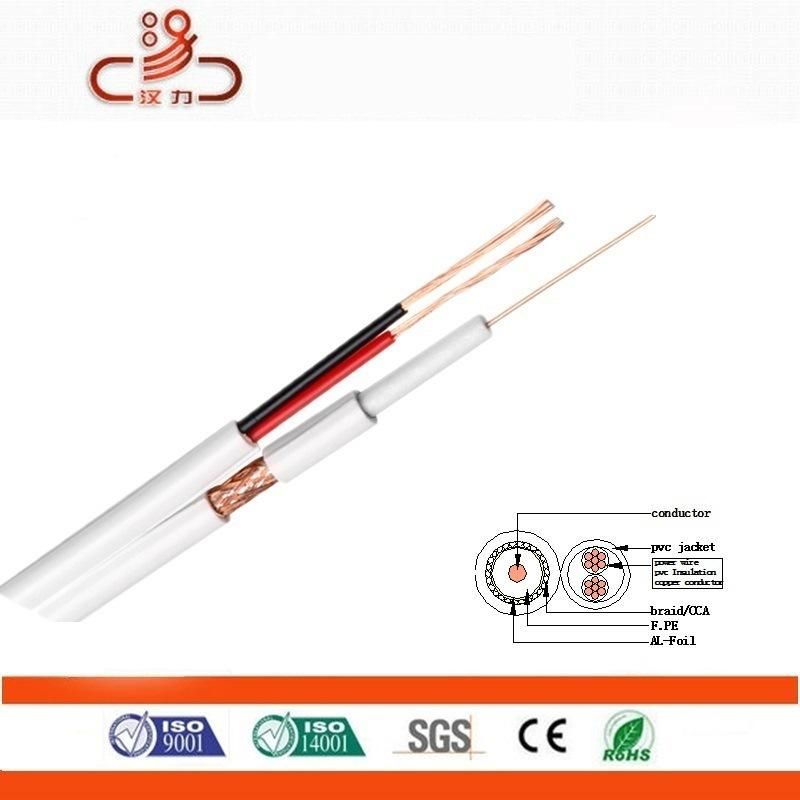

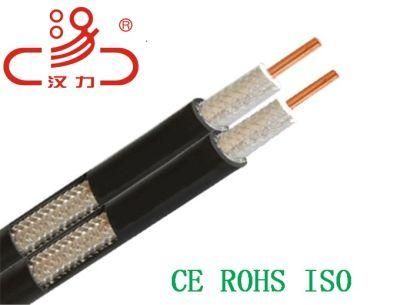

Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Double Wire RG6 Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG6 Coaxial Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：Double Wire RG6 Coaxial Cable
  • Brand：Hanli
  • Transport Package：305m,Roll
  • Specification：1,0.8CU+PE+B+PVC
  • Trademark：hanli
  • Origin：Zhejiang
  • HS Code：8544200000
  • Production Capacity：10000000,Year

Description

Inner conductorPlain copperΦ1.0±0.025mmDielectricF. PEΦ4.7±0.10mmOuter conductorTinned copper80x0.13mmShield coverage 65%SheathPVC o rLSZHΦ7.00±0.10mm

Electrical & Mechanical CharacteristicsImpedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness100-900MHz>55dB

AttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94

Return Loss30-300MHz>26dB300-600MHz>25dB600-900MHz>24dB
Double Wire RG6 Coaxial Cable/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio CableDouble Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6Double Wire RG6 Coaxial Cable/Computer Cable/ Coaxial Cable /Rg11/Rg59/RG6

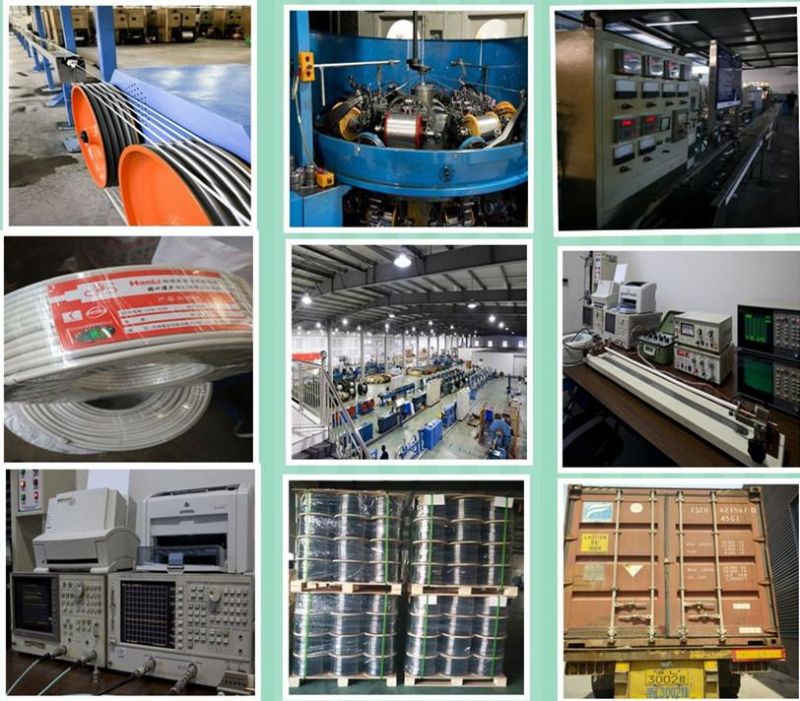

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
