4 Cores 150sqmm XLPE Insulated Copper Cable 0.6/1kv
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground
- Voltage：0.6,1kv, Low Voltage
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：4C 150mm2 power cable
- Wire Core Material：Copper
- Certification：ISO, CCC, CE, RoHS
- Model：YJV
- Brand：Hongda
- Armor：Steel Tape
- Conductor Material：Copper
- Standard：IEC
- Quality Guarantee：Ten Years
- Core：Multicores
- Insulated Color：Red, Yellow, Blue, Green
- Sheath Color：Black
- Sample：Yes
- Manufacture：Yes
- Transport Package：Wooden Drum
- Specification：0.6,1KV 4x150 Copper power cable
- Trademark：Hongda
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：200km,Per Months
Description
No. of CoresNominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter mm Nominal Weight mm² mm Under Armour Overall kg/km 2 1.5 0.6 7.3 12.1 302 2 2.5 0.7 8.5 13.6 346 2 4 0.7 9.4 14.7 410 2 6 0.7 10.5 15.9 499 2 10 0.7 12.3 18 648 2 16 0.7 14.3 20.4 978 2 25 0.9 14.7 20.4 1290 2 35 0.9 16.8 23.3 1500 2 50 1 19 25.8 1890 2 70 1.1 22 29 2450 2 95 1.1 25.1 33.1 3300 2 120 1.2 27.9 36.1 4020 2 150 1.4 30.9 39.3 4750 3 1,5 0.6 7.8 12.6 330 3 2.5 0.7 9.2 14.1 390 3 4 0.7 10 15.3 464 3 6 0.7 11.2 16.6 568 3 10 0.7 13.1 19.5 866 3 16 0.7 15.3 21.6 1152 3 25 0.9 18.9 23.6 1800 3 35 0.9 21.3 25.7 2230 3 50 1 21.7 28.5 2490 3 70 1.1 25.2 32.2 3290 3 95 1.1 28.8 37 4440 3 120 1.2 32 40.4 5470 3 150 1.4 35.9 45.5 6930 3 185 1.6 40 49.8 8350 3 240 1.7 44.9 55.1 10400 3 300 1.8 49.8 60.2 12600 3 400 2 55.8 66.6 14600 4 1.5 0.6 8.5 13.3 365 4 2.5 0.7 9.9 15 438 4 4 0.7 11 16.4 532 4 6 0.7 12.3 18.7 764 4 10 0.7 14.5 21.1 1013 4 16 0.7 17 23.4 1360 4 25 0.9 21 26.1 2160 4 35 0.9 23.6 28.6 2690 4 50 1 25 32 3130 4 70 1.1 29.5 37.7 4500 4 95 1.1 33.3 41.7 5600 4 120 1.2 37.5 47.1 7400 4 150 1.4 41.6 51.4 8780 4 185 1.6 46.4 56.6 10630 4 240 1.7 52.6 63 13390 4 300 1.8 58 68.8 16290 4 400 2 65.4 78.1 19800 5 1.5 0.6 9.7 14.3 410 5 2.5 0.7 11.7 16.1 470 5 4 0.7 13 17.8 710 5 6 0.7 14.5 20 876 5 10 0.7 17.2 22.9 1165 5 16 0.7 20 26.6 1742 5 25 0.9 24.7 31.5 2323 5 35 0.9 27.8 34.8 2932 5 50 1 32.4 40.4 4192 7 1.5 0.6 10.2 15.2 470 7 2.5 0.7 12.3 17.1 600 7 4 0.7 13.6 19.1 881 12 1.5 0.6 13.7 19.4 780 12 2.5 0.7 16.3 22.4 1000 19 1.5 0.6 16.2 22.2 1000 19 2.5 0.7 19.9 26.6 1540 27 1.5 0.6 20 26.7 1500 27 2.5 0.7 24 30.7 1950 37 1.5 0.6 22.3 29 1800 37 2.5 0.7 26.9 33.8 2350
6. Packaging&Delivery.

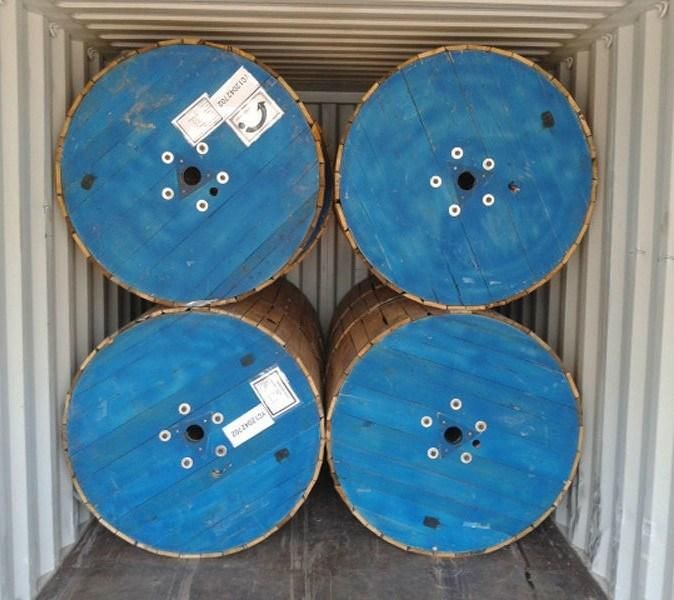

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
