0.6/1kv 3X185sqmm+2X95mm2 Armoured 5 Cores Power Cable IEC60502-1

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：0.6,1kv, Low Voltage
  • Current：AC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：3X185+2X95mm2 Copper Cable
  • Wire Core Material：Copper
  • Certification：ISO, CCC, CE, RoHS
  • Model：VV22
  • Brand：Hongda
  • Armour：Steel Tape Armour
  • Conductor Material：Copper
  • Standard：IEC 60502-1
  • Quality Guarantee：Ten Years
  • Core：5 Cores Cable
  • Insulated Color：Red, Yellow, Blue, Green, Black
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • Transport Package：Wooden Drum
  • Specification：3X185sqmm+2X95mm2
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544492100
  • Production Capacity：3000km,Per Months

Description

                       Low Voltage Armored Power Cable

                                   Specification

Copper CoreAluminium CoreVV22VLV22Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC SheathVV23VLV23Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE SheathVV32VLV32Fine Steel Wire Armored Power Cable With PVC Insulation and PVC SheathVV33VLV33Fine Steel Wire Armored Power Cable With PVC Insulation and PE SheathVV42VLV42Thick Steel Wire Armored Power Cable With PVC Insulation and PVC SheathVV43VLV43Thick Steel Wire Armored Power Cable With PVC Insulation and PE SheathYJV22YJLV22Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC SheathYJV23YJLV23Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE SheathYJV32YJLV32Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC SheathYJV33YJLV33Fine Steel Wire Armored Power Cable With XLPE Insulation and PE SheathYJV42YJLV42Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC SheathYJV43YJLV43Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath

V - PVC insulation

YJV -   XLPE insulation

V V  2  2 --  V :PVC insualtion, V:PVC inner sheath; 2 -- steel tape armoured, 2--- PVC outer sheath

VLV 22 --- L means aluminum conductor in addition

23 ---steelt tape armored PE sheathed

32---- steel wire armoured PVC sheathed

33 ---- steel wire aremored PE sheathed

42-- thick steel wire armored PVC sheathed

43 --- thick steel wire aremored PE sheathed

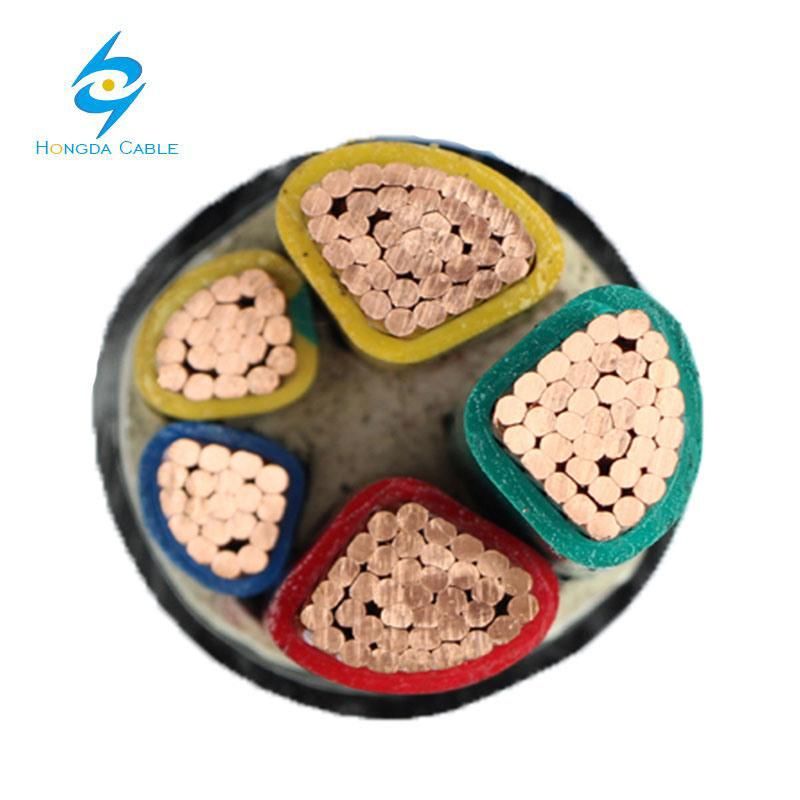

5. Construction.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

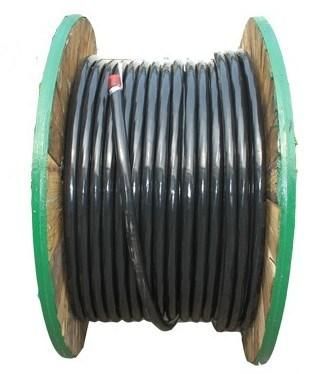

0.6/1kv 3X185sqmm+2X95mm2 Armoured 5 Cores Power Cable IEC60502-1
1. 1 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

2. 2 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

3. 3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

4. 4 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

5. 5 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

6. 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

7. 3+2 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

8. 4+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

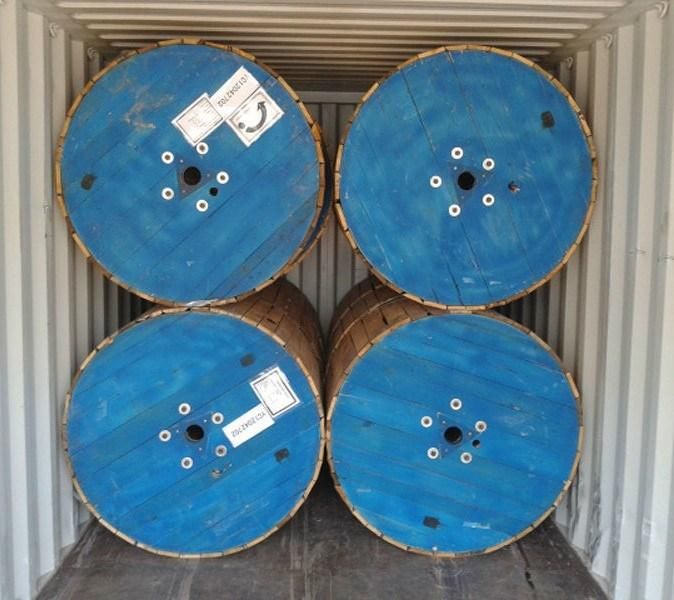

6. Packaging&Delivery.
0.6/1kv 3X185sqmm+2X95mm2 Armoured 5 Cores Power Cable IEC60502-1   0.6/1kv 3X185sqmm+2X95mm2 Armoured 5 Cores Power Cable IEC60502-1
Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)

7. Contact us
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
Tel :+86 15039132763
