Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable, Submarine Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：Network cable & Communication Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC, UL, VDE
  • Model：UTP
  • Brand：Kuayue
  • Transport Package：305m
  • Specification：44X44X23
  • Trademark：hanli
  • Origin：Zhejiang
  • HS Code：8544200000
  • Production Capacity：10000000,Year

Description

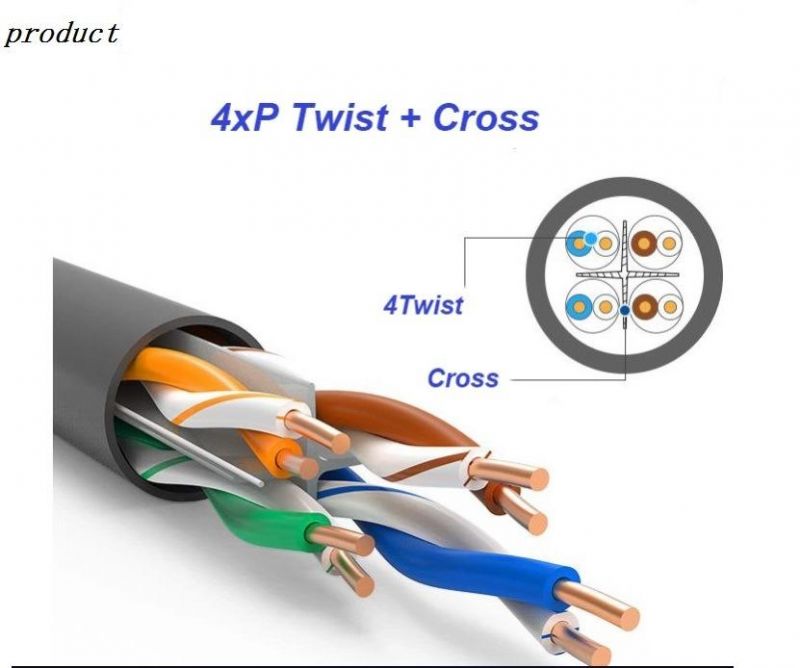

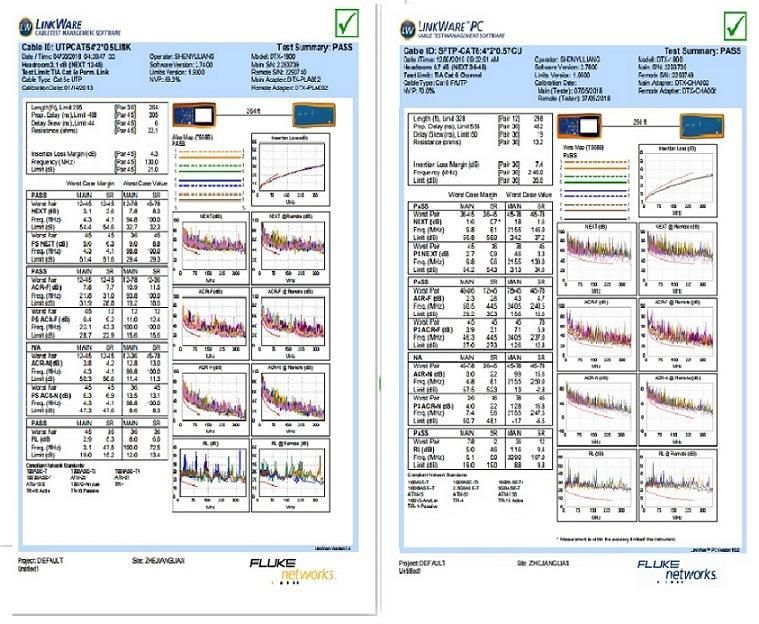

Product Name/Code:UTP Cat 6 PVCPerformanceApplication:FrequencyRLAttenuationNEXTPSNEXT100 Base-T4 (MHz)(dB)(dB/100m)  100 Base-TX  min.maxmin (dB)min (dB)100VG - AnyLAN 1.00020.002.0080.0077.001000 Base-T (Gigabit Ethernet) 4.00023.003.6080.0077.00155 Mbps ATM 10.0025.005.7080.0077.00622 Mbps AT 16.0025.007.2080.0077.00Reference Standard20.0025.008.1080.0077.00EIA/TIA 568B & ISO/IEC 1180131.2523.6010.1080.0077.00Cable Construction62.5021.5014.5075.5072.50ConductorSolid Bare Copper100.0020.1018.5072.4069.40AWG23200.0018.0026.8067.9064.90Conductor Diameter(mm)0.574250.0017.3030.2066.5063.50InsulationSolid PE                   4.00080.0077.00 76.40  10.0074.0071.00 74.30  16.0069.9066.90 72.80SheathingPVC /FRPVC20.0068.0065.00 71.90Thickness(mm)1.431.2564.1061.10 69.90Diameter(mm)9.1(22 AWG)62.5058.1055.10 61.008(23 AWG)100.0054.0051.00 53.90Core Identificatin/Color CodeAccording to customer request200.0048.0045.00 41.10Bending Radius6xOverall Diameter250.0046.0043.00 36.30       Fire PerformanceElectrical PerformanceFlame propagation Test to IEC 332 Part 1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3(FEPVC)Max.Conductor DC Resistance at 20 ºC(Ω/Km)<93.8Operating Temperature( ºC )70Velocity of propagation79%Impedance(ohm)100±15
Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR
Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR
Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR
Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR


Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR
Network Cable & Communication Cable UTP CAT6 23AWG LAN Cable CPR

Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
