• Model NO.：N2XY 1x630mm2
• Wire Core Material：Copper
• Certification：ISO, CCC, CE, RoHS
• Model：YJV
• Brand：Hongda
• Armour：Unarmour
• Conductor Material：Copper
• Standard：IEC60502-1
• Quality Guarantee：Ten Years
• Core：1core
• Insulated Color：White or Black
• Sheath Color：Black
• Sample：Yes
• Manufacture：Yes
• Transport Package：Wooden Drum
• Specification：single core Copper power cable
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：3000km,Per Months

Nominal
conductor
area
(mm2)

Main
conductor
type

Nominal
insulation
thickness
(mm)

Nominal
sheath
thickness
(mm)

Nom.
overall
diam.
(mm)

Approx.
mass
(kg/100m)

16Stranded0.81.49.32125Compacted0.91.410.53035Compacted0.91.411.54050Compacted11.412.95270Compacted1.11.414.77395Stranded1.11.517.2101120Stranded1.21.519.6123150Stranded1.41.621.3152185Stranded1.61.623.5189240Stranded1.71.726.6246300Stranded1.81.829.4306400Compacted21.933.3386500Compacted2.2237491630Compacted2.42.241.4635



2.Technique Features & Standard.

XLPE polyethylene insulated power cables, this product is manufactured by parasitical cross-linking procedure, the straight-chain polyethylene will be changed as network structure by use this method, which transformed thermoplastic material into thermosetting material. The working temperature is up to 90ºC, which can raise the cable current capacity highly. XLPE polyethylene insulated power cables, the product has good performance on electrical characteristic, heat resistance, chemical resistance, environmental stress cracking resistance and aging resistance, all which make the cable has a long useful life.

GB/12706-2008, IEC60502-1,IEC 60228,IEC60332 BS 5467,IS 1554 , IS 7098 ect.
we can also design and produce for special application requirement.

3. Operating Characteristics.

3.1 U0/U(Um) Rated Voltage of Cable

,0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 1.5~630
0.6/1(1.2), 1.8/3(3.6) 3.6/6(7.2), 6/6(7.2)-6/10 (12) 8.7/10(12) 8.7/15(17.5) 12/20(24) 18/30(36) 21/35(40.5) 26/35(40.5) kV
3.2 The rated Temperature of Conductor
a) The long-time operating temperature of conductor should not be higher than 90ºC
b) If the core is in short circuit, short circuit temperature of conductor should not exceed 160ºCnot more than 5sec.
3.3 Ambient Temperature
When installation, the ambient temperature should not be lower than 0ºC, otherwise the cable need be preheated.
3.4 Bending Radius
Bending radius of single core cable is 20(d+D) ±5%
Bending radius of multi-core cable is 15(d+D) ±5%
d: Actual diameter of the conductor (mm)
D: Actual outer diameter of cable sample (mm)

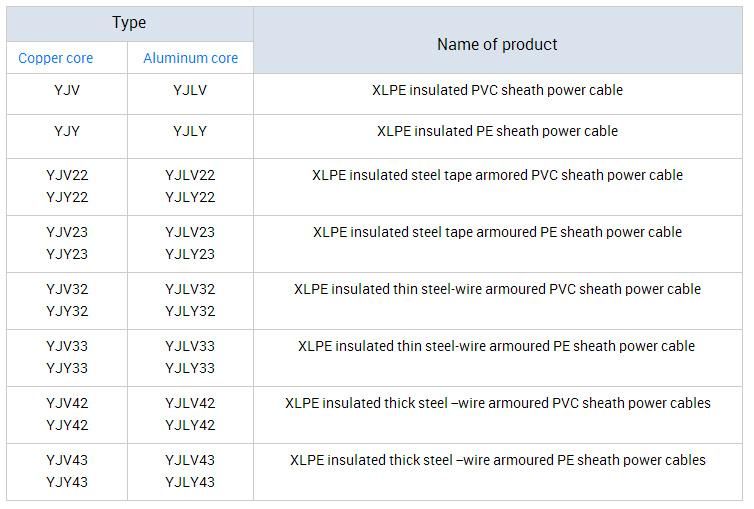

4. Specification of product.

5. Construction.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

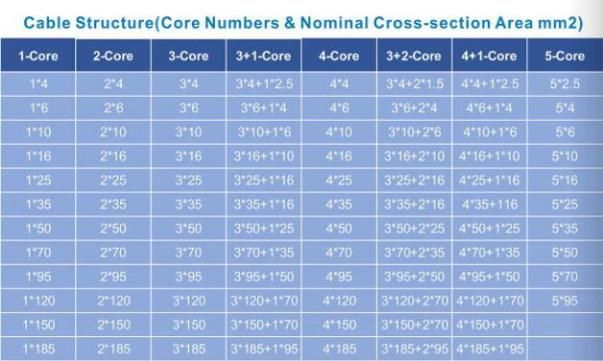

1. 1 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

2. 2 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

3. 3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

4. 4 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

5. 5 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

6. 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

7. 3+2 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

8. 4+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

^{6. Packaging&Delivery.}

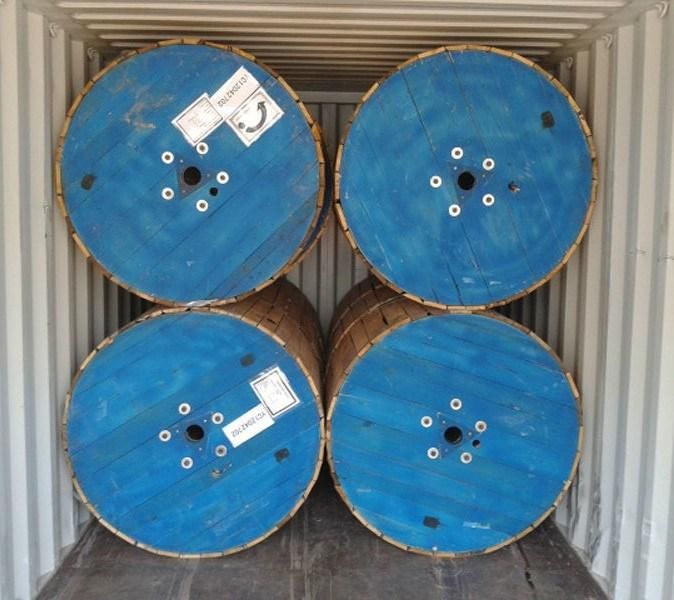

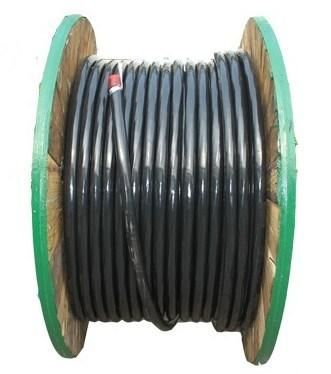

Packaging Details:Wooden drums,steel wooden drums or as your requirement
