Fg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Industrial Cable
  • Conductor Material：Copper
  • Sheath Material：Hepr
  • Insulation Material：PVC

Base Info

  • Model NO.：FG7OHH2R Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFG7OHH2R Fire Retardant PVC Cable ConductorFlexible bare copperInsulationRubber HEPRShieldSilver tape/Bare copper wire braidOuter SheathPVCCore NumberMulticores (As client's requirement)Rated Voltage 600/1000VTest Voltage4KVMinimum Bending Radius8 × ØTemperature RangeFlexing Temperature: 0 ºC to +90 ºC
Static Temperature: -25ºC to +90 ºCColorOptionalApplicationThese cables are especially suitable for photovoltaic installations in the link connection between inverter and counter. For energy transport and signals transmission both in internal and external application and wet environments. Ideal for fixed lay on walling and metallic frames. Also appropriate for direct or indirect grounded lay.

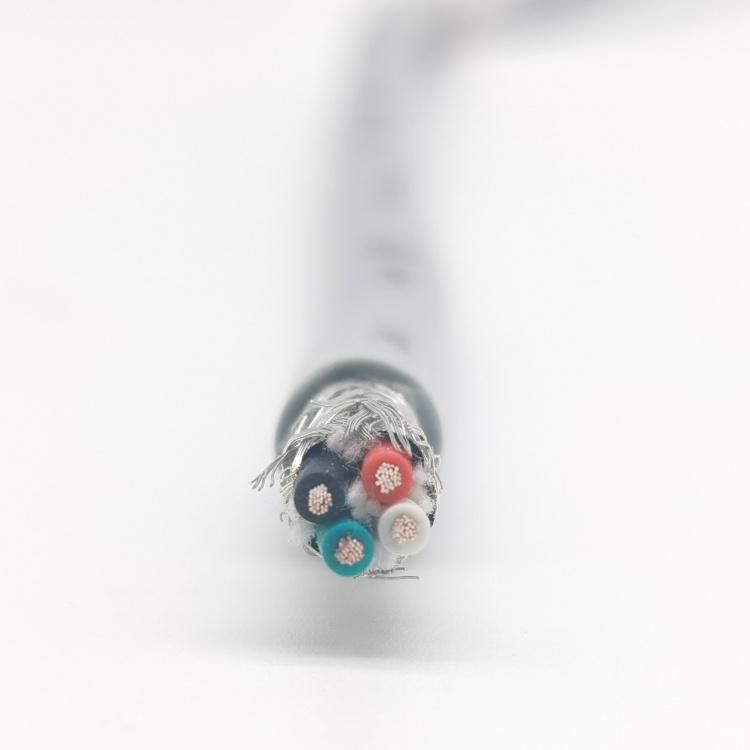

Fg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated Cable

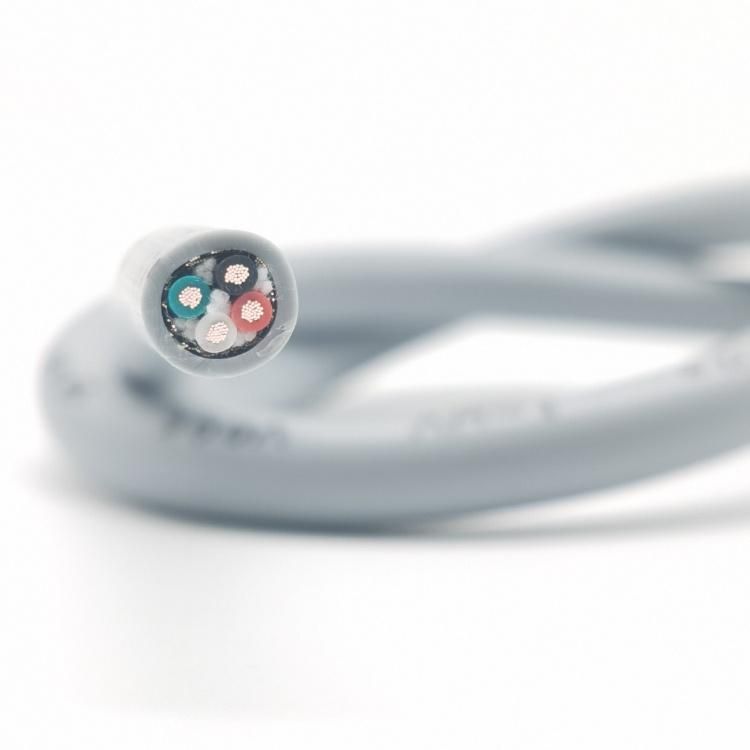

Fg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated Cable

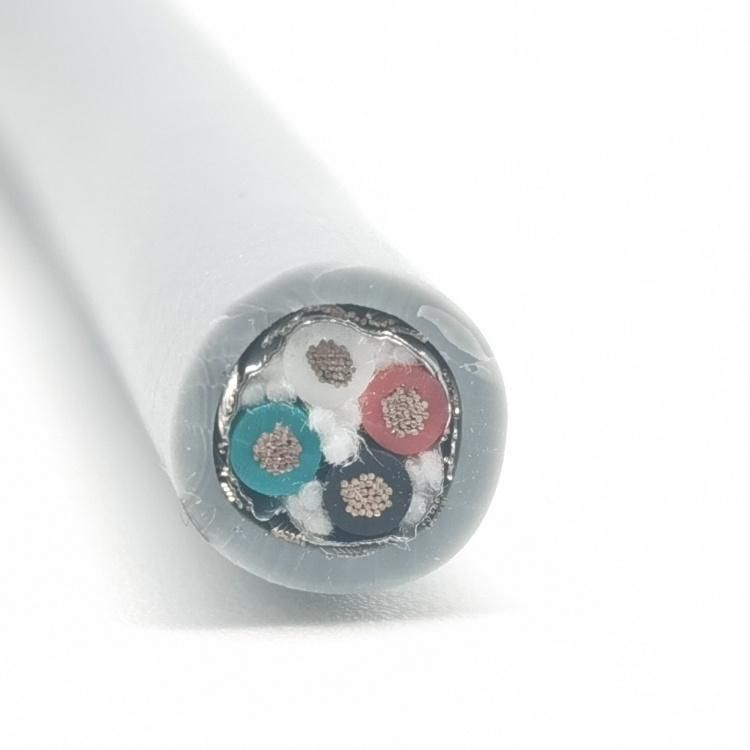

Fg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated CableFg7ohh2r Flame Retardant Cable PVC Sheath Hepr Insulated Cable
