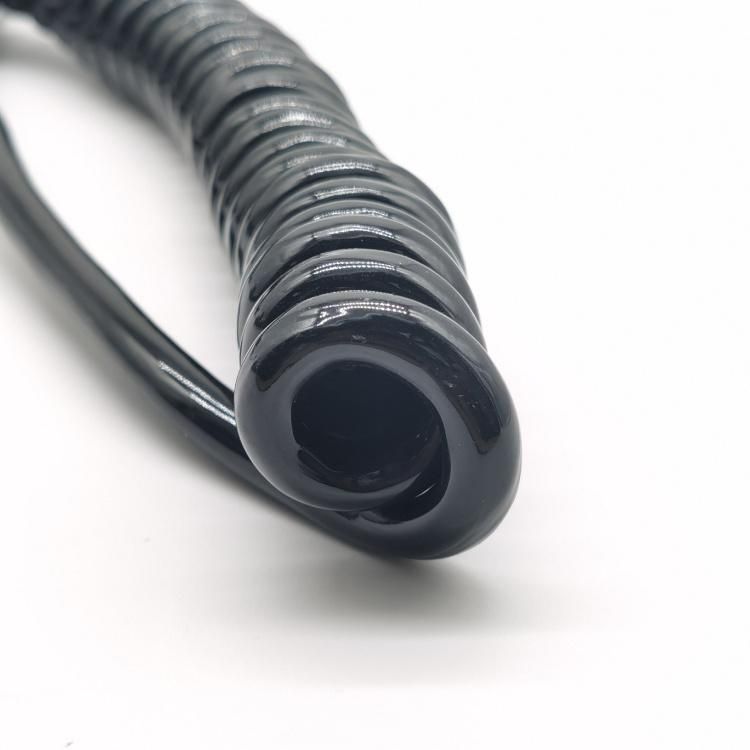

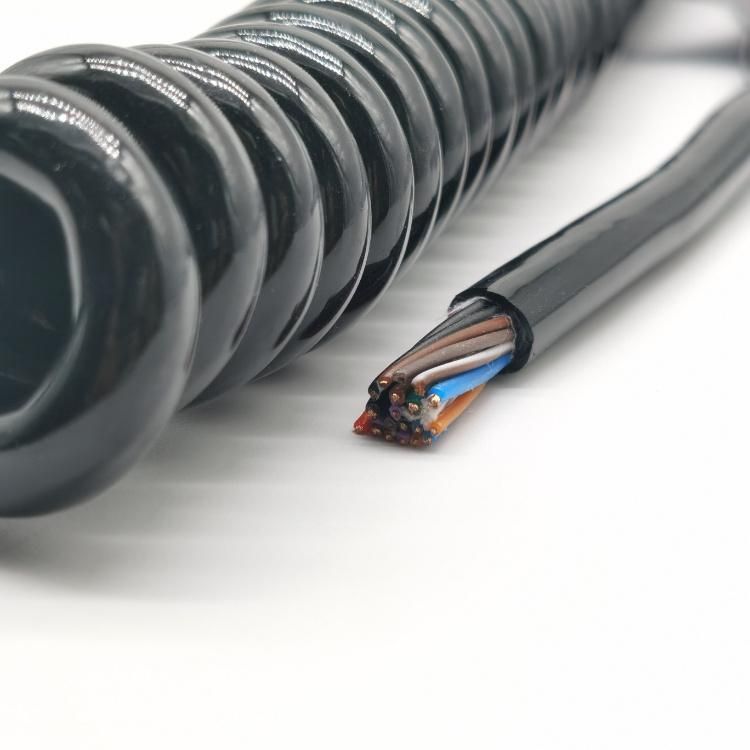

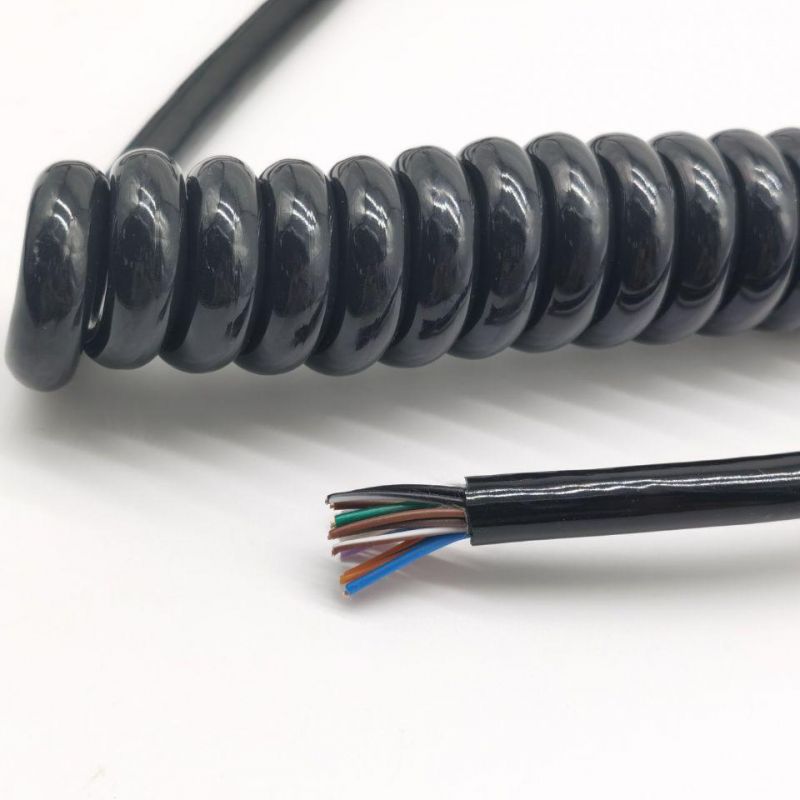

Tkd Alternative Spiralkabel PUR Cable From H05bq-F / H07bq-F Low Voltage

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：Rur
  • Insulation Material：Rubber

Base Info

  • Model NO.：SPIRALKABEL PUR Cable
  • Material Shape：Round Wire
  • Range of Application：Oil Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTKD Alternative SPIRALKABEL PUR Cable From H05BQ-F / H07BQ-F ConductorCopper strand tinnedInsulationEPDM/rubber compoundOuter sheathPURCore NumberMulticores (As client's requirement)Rated VoltageH05BQ-F:Uo/U 300/500 V H07BQ-F:Uo/U 450/750 VTest Voltage2 kVTemperature RangeMoved min/max -25 °C / +70 °CColorOptionalSpecial Features• largely resistant to oil conditional on PUR outer sheath
• largely resistant to grease, acids and bases
• free from lacquer damaging substances (during production)
• high abrasion resistance
• high restoring force guaranteed high cycles and lifetime
• resistant to microbes
• UV resistantApplicationRobust and low abrasion connecting cable for electrical facilities and hand operated electrical tools, for roller shutter, for the purpose of agriculture, for building industry, electrical machines and devices. Suitable for use in dry rooms and outdoor considering the temperature range.
