• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：RS485
• Brand：Risun or OEM
• Pairs：1pairs
• Color：Blue (or as Request)
• Inner Conductor：7*32AWG Tc
• 1st Shield：Aluminu Foil
• 2st Shield：90% Braiding Tinned Copper
• Drain：7X32AWG (24AWG)Stranded Tinned Copper
• Ripcord：Yes
• Nom. Jacket：5.89mmpvc
• Export Length：100m,Roll, 200m,Roll, 305m,Roll

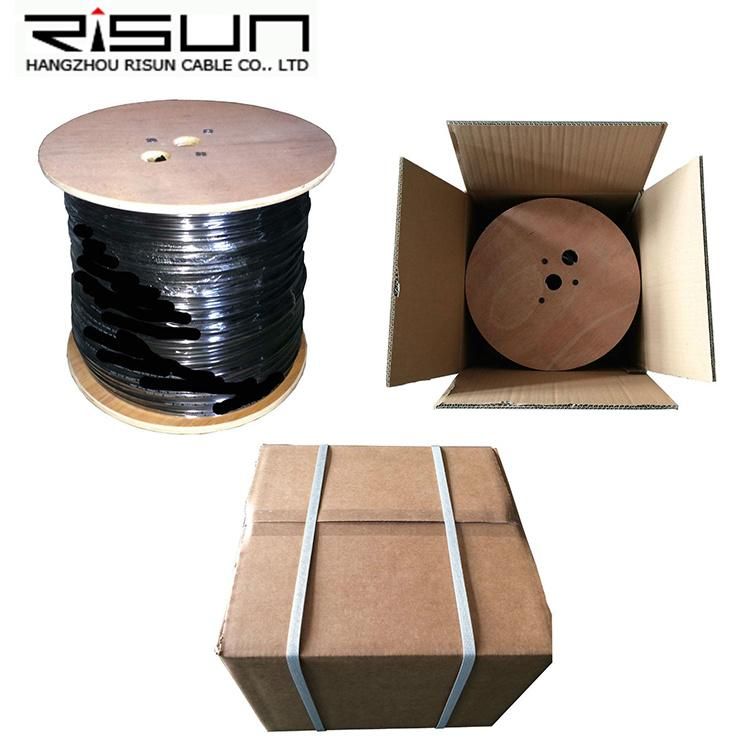

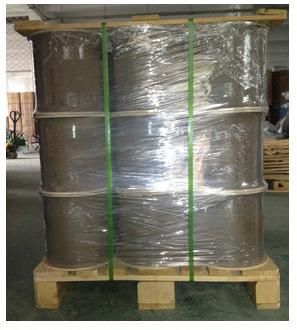

• Transport Package：Pull out Box, Carton Box, Pallet
• Specification：9841
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

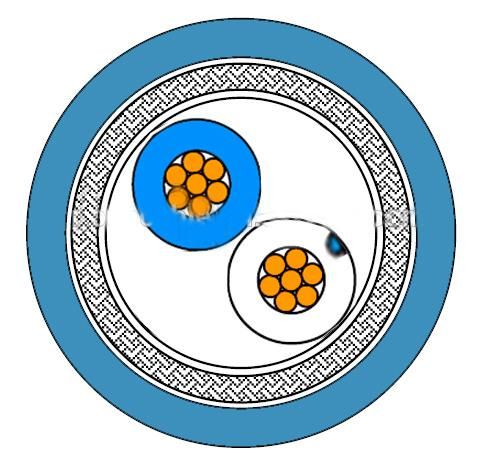

1 Pair 24AWG (7x32) Tinned Copper

Category 5e Unshie.

 DESCRIPTIONManufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173.         TECHNICAL SPECIFICATIONS   Conductor Stranded Tinned copper 7x32AWG±0.01 mm (24AWG)



Insulation PE1.74±0.05 mmIdentification of pairs   1 pairBlue - White / Blue1st shieldAluminu foil2st shield90% Tinned copperRipcordYesSheathPVCColorBlue (or as request)Bending radius≥ 8 x Diameter (mm) InstallationStorage temperature-15ºC-+70ºC



• All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.








  Application & Certificates:




  Company Introduction


  FAQ

  Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

  A: We are factory.


  Q2. HOW LONG IS YOUR DELIVERY TIME?

  A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


  Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

  A: Normally, 10kms per one specification and one color


  Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


  Q5. HOW TO PROCEED AN ORDER FOR CABLES?

  A: Firstly let us know your requirements or application.
      Secondly We quote according to your requirements or our suggestions.
      Thirdly customer confirms the samples and places deposit for formal order.
      Fourthly We arrange the production.


  Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
  A: Yes. Please inform us formally before our production.

  Q7. WHAT IS YOUR TERMS OF PAYMENT?
  A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .

              WELCOME TO RISUN!!!
