• Model NO.：Category 5e
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Color：Gray, White, Black
• Inner Conductor：24 AWG Bc,CCA
• Nom. Thick：0.55mm
• Export Length：100m,Roll, 200m,Roll, 305m,Roll
• Pairs：4 Pairs
• Transport Package：Pull out Box, Carton Box, Pallet
• Specification：0.51cu, 0.90HDPE, 6.20PVC+PE
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

U/UTP CAT.5e

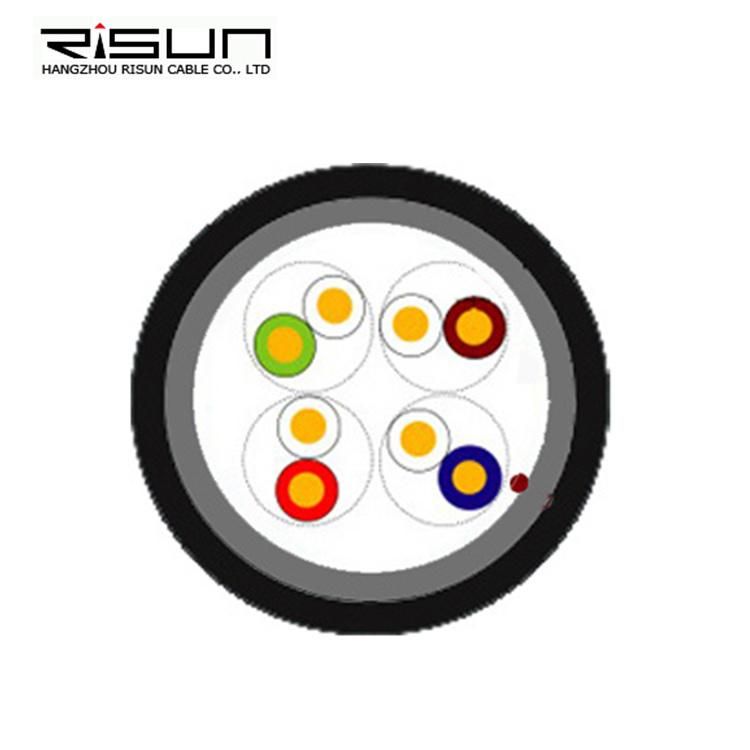

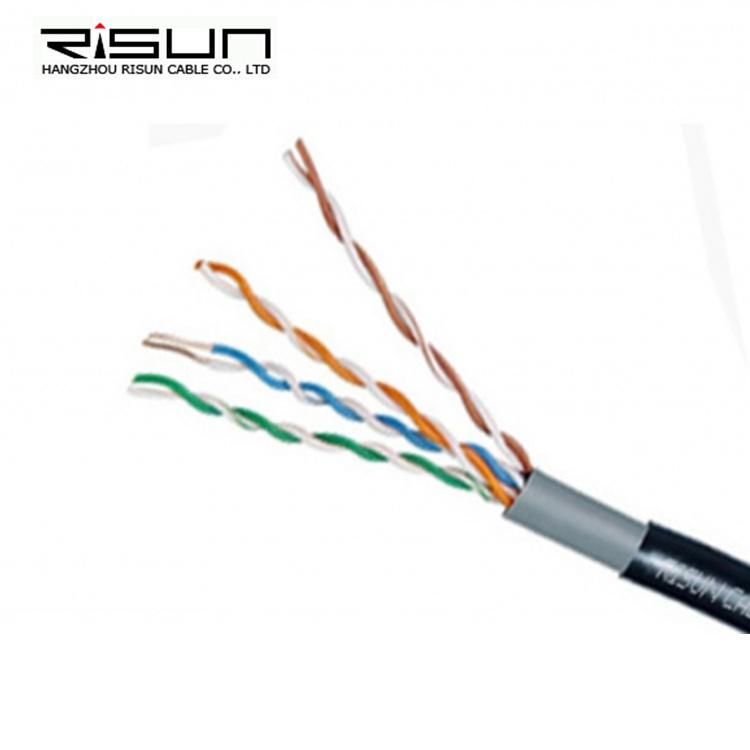

Category 5e Unshielded Twisted Pair U/UTP Installation cable

 DESCRIPTIONManufactured according to ISO / IEC 11801-2, ISO / IEC 64156-5, EIA / TIA 568B, EN-50173         TECHNICAL SPECIFICATIONS   Conductor Bare copper0.51±0.01 mm



Insulation HDPE 0.90±0.05 mmIdentification of pairs   1 pairBlue - White / Blue 2 pairOrange - White / Orange 3 pairGreen - White / Green 4 pairBrown - White / BrownRipcordYesSheathPVC+PE ColorPEBending radius≥ 8 x Diameter (mm) InstallationStorage temperature-15ºC-+70ºC         ELECTRICAL CHARACTERISTICS nº Pairs.xФ (mm)

Conductor

Resistance

(Ω/km)

Resistance

Unbalance

Cap. between cond. pair

(nF / 100m)

Velocity of

Propagation (%)

Impendance (Ω)ФExt. (Appvox) (mm) 4x2x0.51max.91.5max.4%5.669100±156.20±0.2

Frequency

(MHz)

RL  ≥dB

ATT

 ≤dB/100m

NEXT

≥dB

DELAY

 ≤ns/100m

PS NEXT

 ≥dB

EL FEXT

≥dB/100m

PS EL FEXT

≥dB/100m

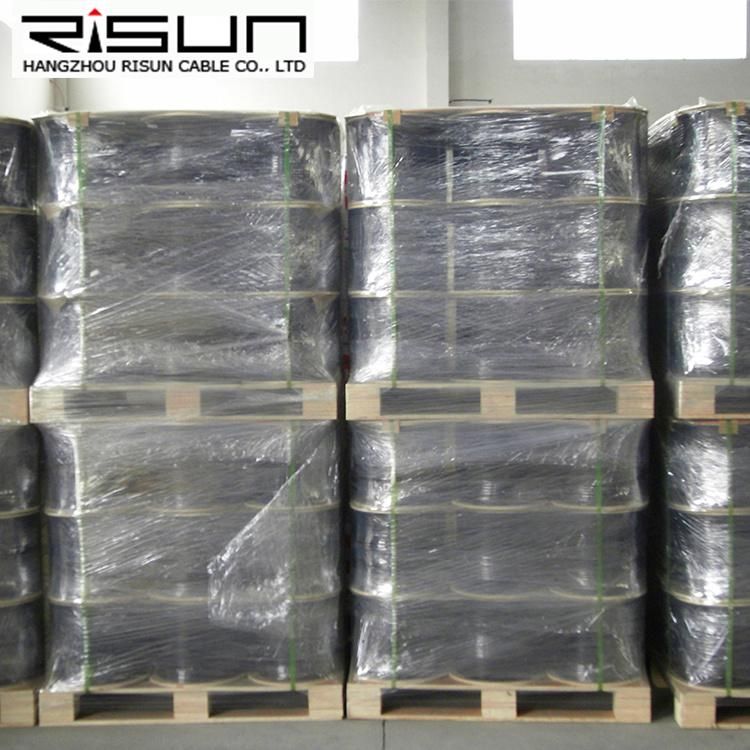

 423.04.156.3552.053.352.049.0 824.55.851.8547.048.845.942.9 1025.06.550.3545.047.344.041.0 1625.08.247.2543.044.239.936.9 2025.09.345.8542.042.838.035.0 2524.310.444.3541.041.336.033.0 31.2523.611.742.9540.039.934.131.1 62.521.517.038.4539.035.428.125.1 10020.122.035.3538.032.324.021.0         ApplianceCable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.         Packing

• All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.



    Application & Certificates:

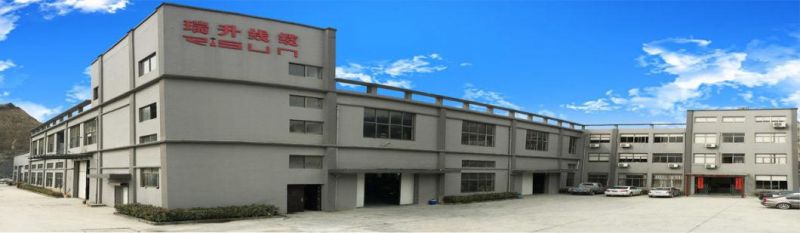

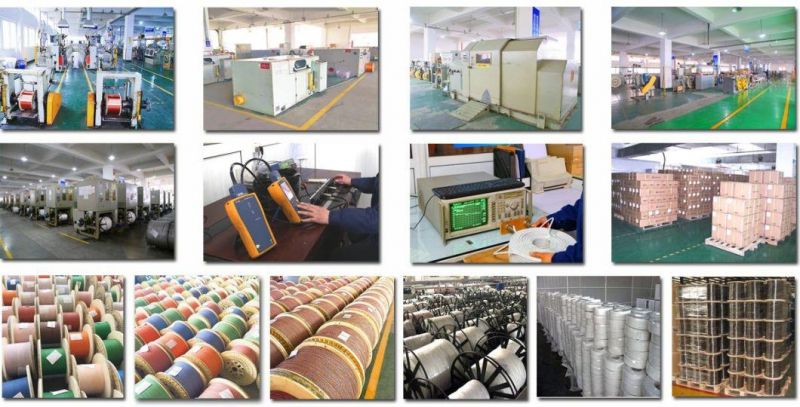

  Company Introduction
  RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.

  We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.







  FAQ

  Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

  A: We are factory.


  Q2. HOW LONG IS YOUR DELIVERY TIME?

  A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


  Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

  A: Normally, 10kms per one specification and one color


  Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


  Q5. HOW TO PROCEED AN ORDER FOR CABLES?

  A: Firstly let us know your requirements or application.
      Secondly We quote according to your requirements or our suggestions.
      Thirdly customer confirms the samples and places deposit for formal order.
      Fourthly We arrange the production.


  Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
  A: Yes. Please inform us formally before our production.

  Q7. WHAT IS YOUR TERMS OF PAYMENT?
  A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .

              WELCOME TO RISUN!!!
