• Model NO.：AL Neutral Screened Cables
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Al Neutral Screened Cable
• Brand：Hongda
• Voltage Rating：600,1000V
• Neutral Screen：Plain Annealed Copper Wire
• Temperature Rating：90°c
• Insulation Colour：Red, White, Blue
• Sheath Colour：Black
• Transport Package：Steel & Wooden Drum or Customer Requirement
• Specification：AS,NZS 4961
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：10km,Days

• Number of cores
• Conductor cross-section
• Pilot wires
• Nominal overall diameter
• Nominal overall diameter
• Approximate weight

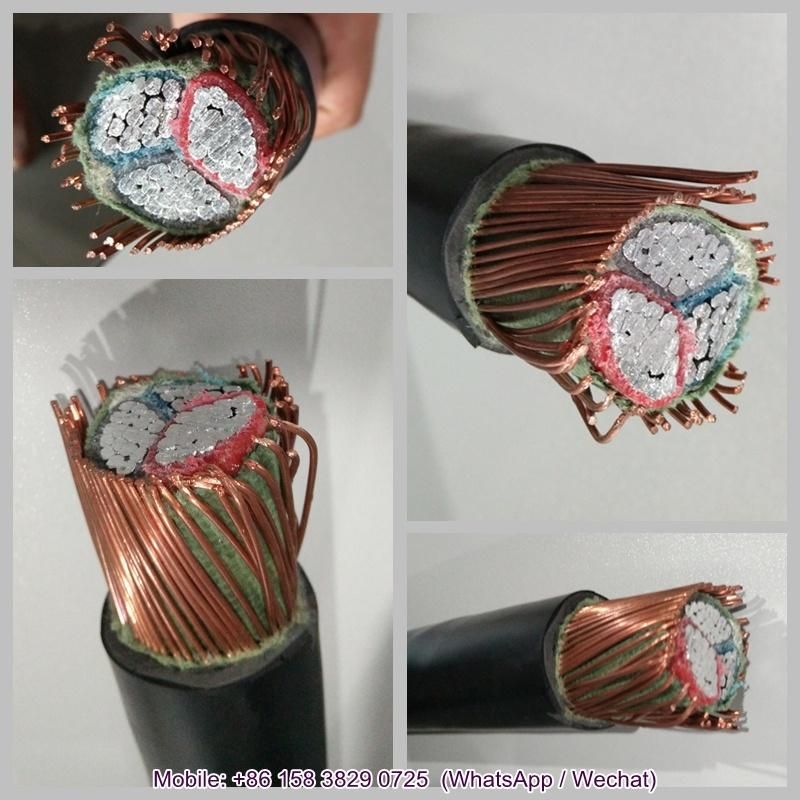

AS/NZS 4961 AL Neutral Screened Copper Neutral Screen Underground Cable
CONSTRUCTION

	Al NSCRN XL  3X120+10P	Al NSCRN XL  3X185+10P	Al NSCRN XL  3X300+10P	AL NSCRN XL 3X35	AL NSCRN XL 3X50	AL NSCRN XL 3X70	AL NSCRN XL 3X95
Pilot wires	10 mm2	10 mm2	10 mm2	None	None	None	None
Type of conductor	Sector-shaped, stranded	Sector-shaped, stranded	Sector-shaped, stranded	Sector-shaped, stranded	Sector-shaped, stranded	Sector-shaped, stranded	Sector-shaped, stranded
Sheath colour	Black	Black	Black	Black	Black	Black	Black
Conductor material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Insulation	XLPE	XLPE	XLPE	XLPE	XLPE	XLPE	XLPE
Screen	Copper wire	Copper wire	Copper wire	Copper wire	Copper wire	Copper wire	Copper wire
Outer sheath	PVC	PVC	PVC	PVC	PVC	PVC	PVC
With Green/Yellow core	No	No	No	No	No	No	No
With smaller  neutral conductor	No	No	No	No	No	No	No
Core identification	Red, White Blue	Red, White Blue	Red, White Blue	Red, White Blue	Red, White Blue	Red, White Blue	Red, White Blue
Number of cores	3	3	3	3	3	3	3
Conductor cross-section	120mm2	185mm2	300mm2	35mm2	50mm2	70mm2	95mm2
Nominal overall diameter	39.6mm	48.5mm	57.7mm	28.1mm	31.0mm	32.3mm	35.9mm
Approximate weight	2.59kg/m	3.79kg/m	5.76kg/m	1kg/m	1.24kg/m	1.56kg/m	2.01kg/m
Max. DC resistance of the  conductor at 20ºC (Ohm/km)	0.253	0.164	0.1	0.868	0.641	0.443	0.32
Rated Voltage Uo/U (Um)	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV	0.6/ 1 (1.2) kV
Cable flexibility	Rigid	Rigid	Rigid	Rigid	Rigid	Rigid	Rigid
Max. conductor  temperature in service	90°C	90°C	90°C	90°C	90°C	90°C	90°C

AL NEUTRAL SCREEN CABLES 3 CORE THREE PHASE
Other standard and specification can be produce depending on customer require.



PACKAGE AND SHIPPING:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size: As per cable length and container size

Shipping:
Port: Tianjin, Qingdao, Shanghai or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.



*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan   we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
