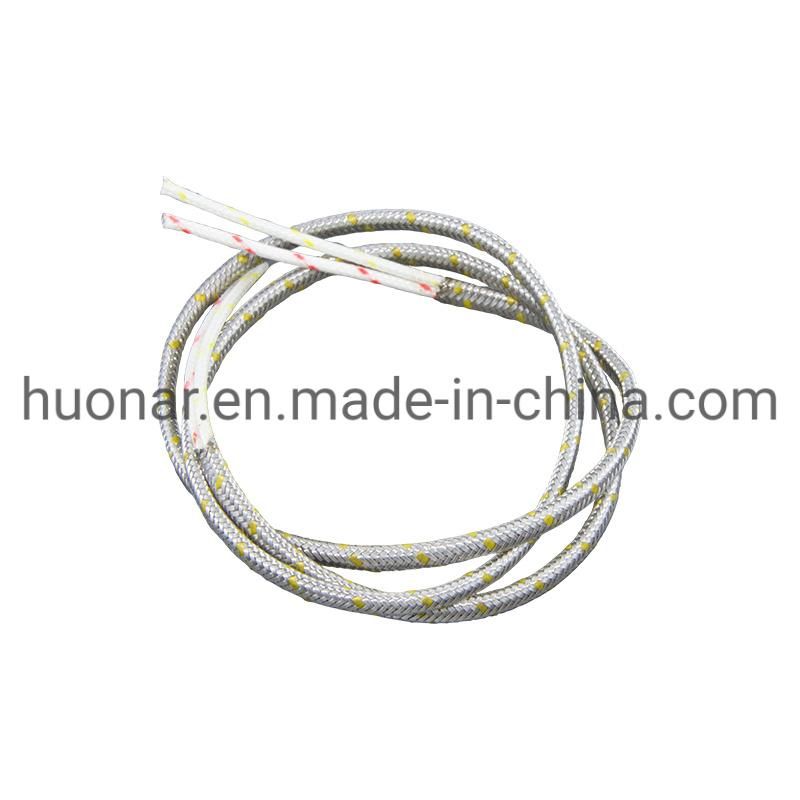

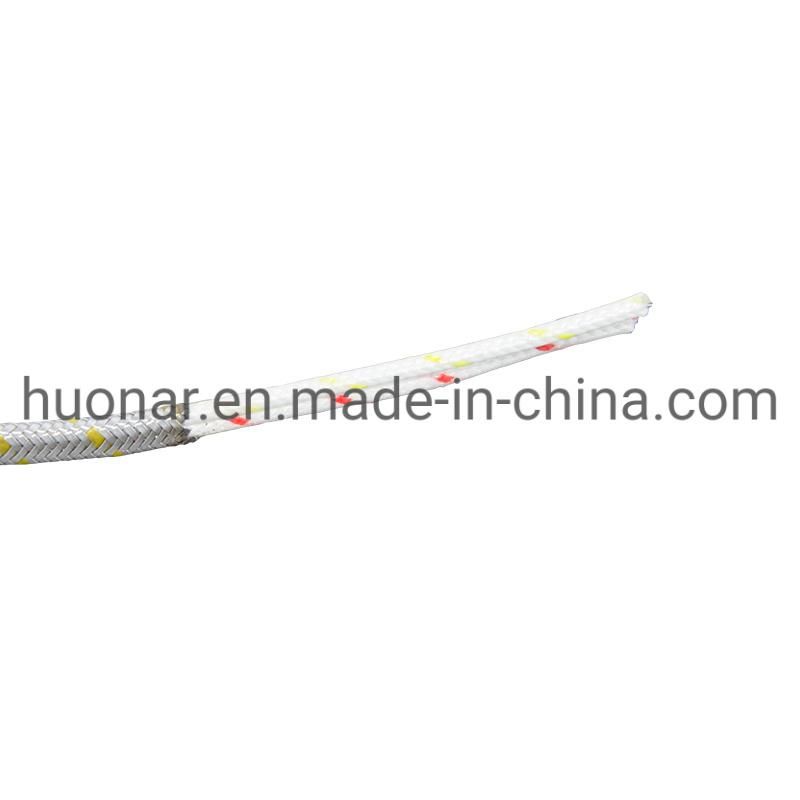

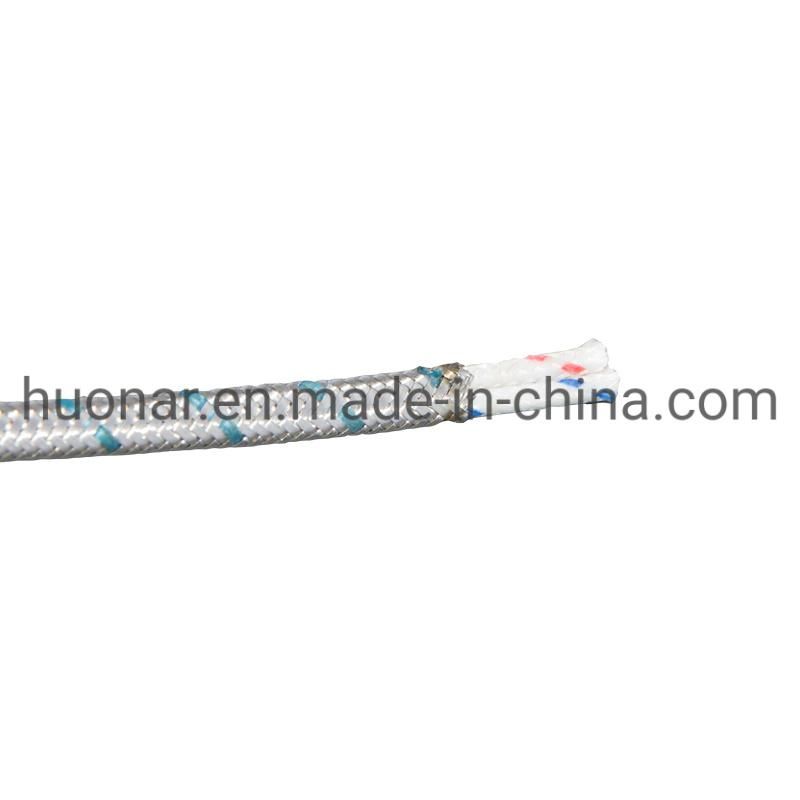

Fire Alarm Cable 14 AWG Copper IEC60332 Fire Resistance Wire
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Copper Wire
- Sheath Material：PTFE or Silicone Resin Emulsion
- Insulation Material：Fiberglass
Base Info
- Model NO.：Free Resistance wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：PTFE or Silicone Resin Emulsion
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+350c
- Rated Voltage：500V
- Standard：GB,T5013.3-2008
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Pleach：Fibreglass +Mica Tape
- Transport Package：Wooded Case, Carton
- Specification：2.8-15.4mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
Outer Diameter
mmElectrical Properties
mm Packing Sectional Area
mm² Jacket Thickness
mm Max. Conductor
Resistance DC 20'C
Ω/km M/coil 0.50 7x0.30 2.6±0.3 39.0 200 0.75 11x0.30 2.7±0.3 26.0 200 1.0 7X0.41 2.8±0.3 19.5 200 1.5 21x0.30 3.0±0.3 13.3 100 2.0 28x0.30 3.3±0.3 10.0 100 2.5 35x0.30 3.6±0.5 7.98 100 4.0 56x0.30 4.5±0.5 4.95 100 6.0 84x0.30 5.5±0.5 3.30 100 10 140x0.30 6.6±0.5 1.91 100 16 228x0.30 7.8±0.5 1.21 100 25 361x0.30 9.5±0.5 0.78 100 35 494x0.30 11.2±1.0 0.554 100 50 703x0.30 13.2±1.0 0.386 100 70 988x0.30 15.4±1.0 0.272 100 95 960x0.40 17.4±1.0 0.206 100
mm
mm
mm²
mm
Resistance DC 20'C
Ω/km
