Punch-Type Steel Cable Reel for Wire Rope

NINGBO ONEREEL MACHINE CO., LTD.
  • Type:Steel Cable Drum
  • Certification:CE, CCC, ISO
  • Customized:Customized
  • Condition:New
  • Feature:Fire,Flame Retardant
  • Flange:Pressed Plate

Base Info

  • Model NO.:PN 100-1250
  • Transport Package:Industry Packing
  • Specification:GB4004-83, JB,T7600.3-94 and DlN46395
  • Trademark:ONEREEL
  • Origin:China
  • HS Code:7326909000
  • Production Capacity:1000PCS,Week

Description

Basic Info.

Model NO. PN 100-1250 Transport Package Industry Packing Specification GB4004-83, JB/T7600.3-94 and DlN46395 Trademark ONEREEL Origin China HS Code 7326909000 Production Capacity 1000PCS/Week

Product Description

Name: Low Price Punch-Type Steel Cable Reel for Machines

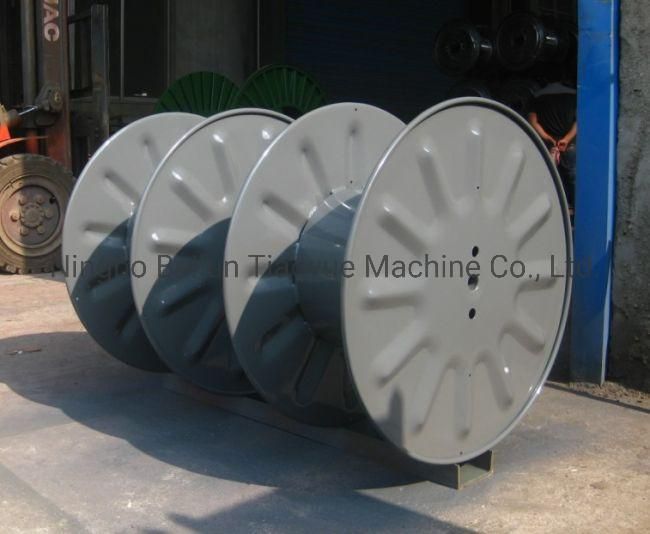

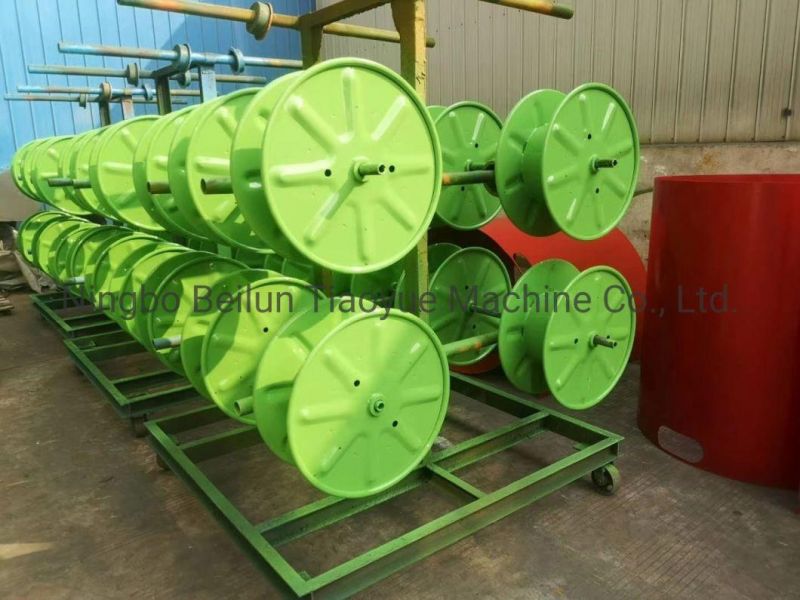

In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is formed by punching and welding common carbon steel Q235 (A3) thin steel plate. The periphery of lateral plate adopts a hemming structure. The product has the characteristics of not only strengthening the strength of lateral plate, but also having higher rigidity and light weight, which can be used for drawing-wire machine, fork strander and tubular strander.

Serial NumberSpecification ModelLateral Plate Diameter D1Major Diameter D2Axle Hole Diameter D4Carrying Hole Diameter D5Center Distance E of Axle Hole and Carrying HoleExternal Width L1Internal Width L2
1315315180/224125/12716100236200
2335335200/250125/12716100265224
3400400224/280125/12728100300250
4450450250/315125/12725100335280
5500500280/355125/12728100375315
6560560355/400125/12728100425355
7630630355/450125/12728100475400
8710710400/500125/12728100530450
9800800450/56025040170600500

Our main products

Plastic bobbin
1.For process and recycle usage.
2.Superfine wire bobbin
3.Packing and delivery bobbin

Metal reel:
1.Corrugated reel for process
2.Punching type steel reel
3.Double layer high speed steel reel
4.Flat-plate type steel reel for high speed machine
5.Enhanced welding-type steel reel
6.Aluminum reel


FAQ

Frequently Asked Questions

1) What is your MOQ?
Usually our MOQ is upon your spools type,different spools with different MOQ. But we accept lower quantity for your trial order.

2) Can I get samples ?
According to spool model and material ,we will advice.

3) How long is the sample LEAD TIME?
For existing samples, it takes 2-3 days. If no stock,we will advice lead time.

4) Can you develop new products?
Yes, we have new products developing ability and we are good at developing new mold

5) How much is the freight charge?
 It depends on spool package volume,
if  small qty,volume and urgent goods,we may advise FEDEX or other couriers' charge for your check.
if volume bigger and by seaway suitable,we provide FOB or CIF price to you.

6) What format of the file do you need if I want my own design?
We have our own mould workshop and can provide spool or other plastic product developing and injection service.
 You can provide JPG, PDF,dwg files for check.

Note:  If you can't find the exact products you need, pls feel free to contact us.
After we checked your requirements, we will provide best offer asap.
