Shielded Cable Z1c4z1-K (AS) 300/500V TUV Certified

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installations
  • Conductor Material：Copper
  • Sheath Material：LSZH
  • Insulation Material：XLPE

Base Info

  • Model NO.：Shielded Cable Z1C4Z1-K (AS)
  • Material Shape：Round Wire
  • Certification：ISO9001, CE, UL, RoHS, TUV
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

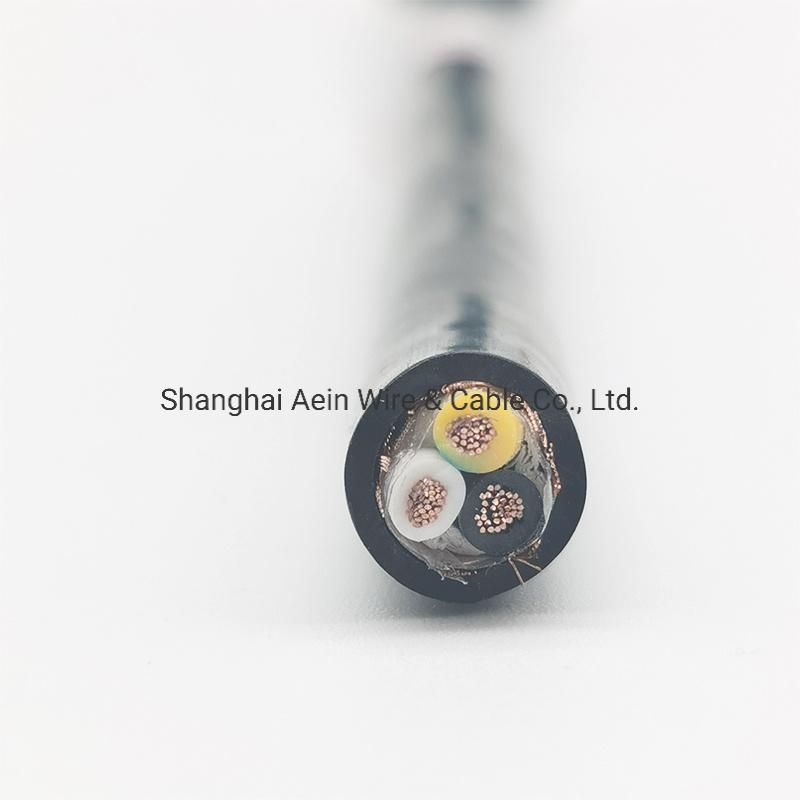

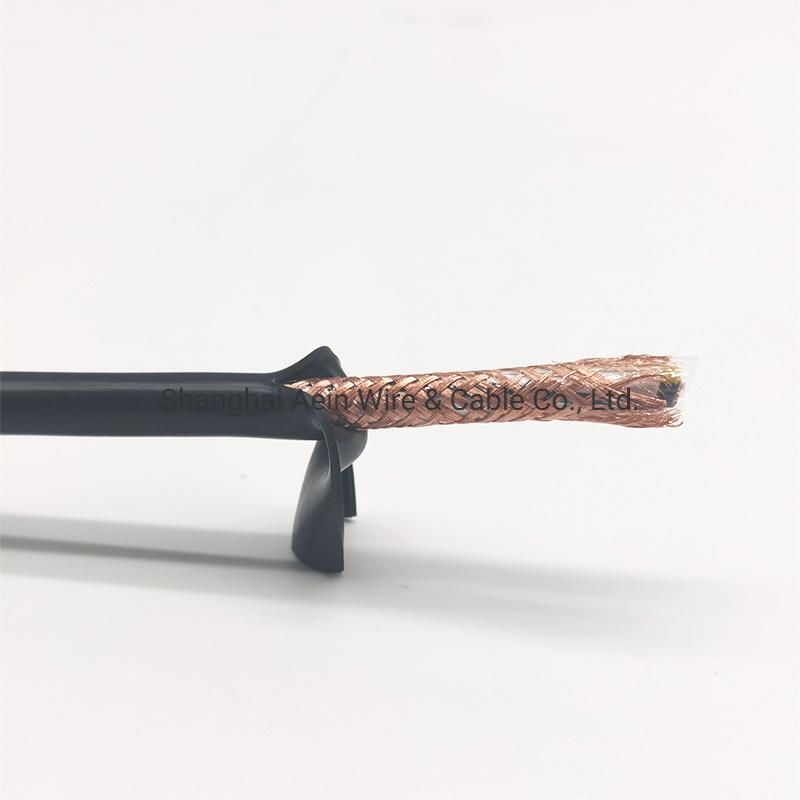

ItemShielded Cable Cerviflam Z1C4Z1-K (AS)ConductorBare copper strandInsulationXLPEScreenBare copper wire braid
Coverage: 60% aprox.Outer SheathLSZH Nominal Voltage300/500VTest Voltage2000VTemperature rangeFixed installation: -15°C to +70°C
During installation: 0°C Min.
Short-circuit (Max. 5 seg): 160°CColorOptionalCertificationCE, TUVApplicationFlexible shielded instrumentation and control cable for fixed installations in industrial processes or buildings. Especially recommended when good electromagnetic protection and good cable fire performance is required.
