Rg6u Quad Shield Coaxial Cable

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Brand：OEM
  • Conductor Size：1.02
  • Braiding：32,48,64,96,112,128,144
  • Transport Package：200m,300m,305m
  • Specification：0.8mm Conductor
  • Trademark：FUU
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：4000km,Month

Description

Basic Info.

Model NO. RG6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS Brand OEM Conductor Size 1.02 Braiding 32/48/64/96/112/128/144 Transport Package 200m/300m/305m Specification 0.8mm Conductor Trademark FUU Origin China HS Code 8544200000 Production Capacity 4000km/Month

Product Description

Rg6u Quad Shield Coaxial Cable

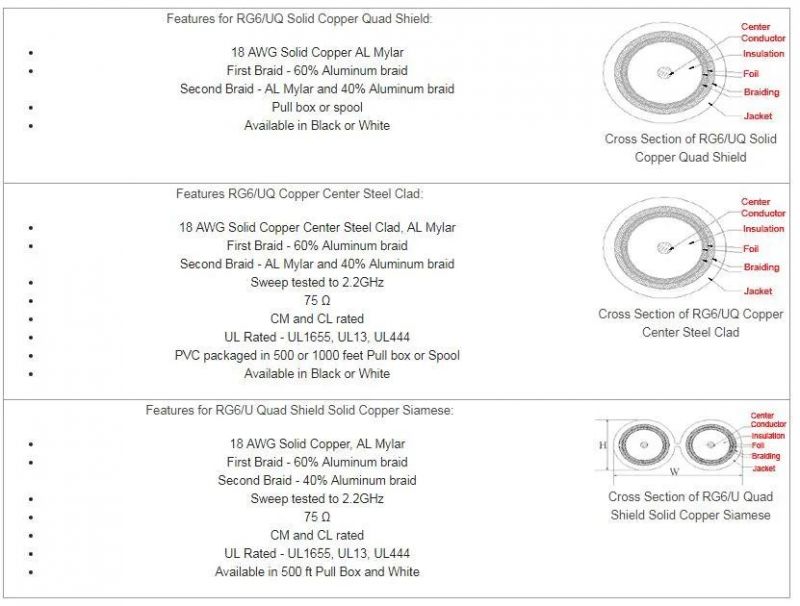

RG6U Quad shield Coaxial Cable


TYPERG6/UQ PVCRG6/UQ CCSRG6/UQ SIAMESERG6/UQ PLENUM
Center ConductorBare copperCopper clad steel(2) Copper clad steelSolid bare copper
AWG1818(2) 1818
Diameter1.02mm1.02mm(2) 1.02mm1.02mm
InsulateSkin Foam PESkin foam PE(2) Skin foam PEFoamed FEP Teflon
ShieldBonded AL foilBonded AL foilBonded AL foilBare copper braid
First Braid ShieldAluminum/Magnesium alloy wireAluminum/Magnesium alloy wireAluminum/Magnesium alloy wiren/a
Coverage≥ 60%≥ 60%≥ 60%95%
ShieldBonded AL/PET/ALBonded AL/PET/ALBonded AL/PET/ALn/a
Second Braided ShieldAluminum/Magnesium alloy wireAluminum/Magnesium alloy wireAluminum/Magnesium alloy wiren/a
Coverage≥ 40%≥ 40%≥ 40%n/a
JacketPVCPVCPVCFlame resistant co-polymer
Dieletric Strength1 kV/min1 kV/min1 kV/min-
Impedence (±3.0 ohms)75757575
Capacitance54 pF/m54 pF/m54 pF/m16.5 pF/foot
Velocity of Propagation≥ 82%≥ 82%≥ 82%82%
