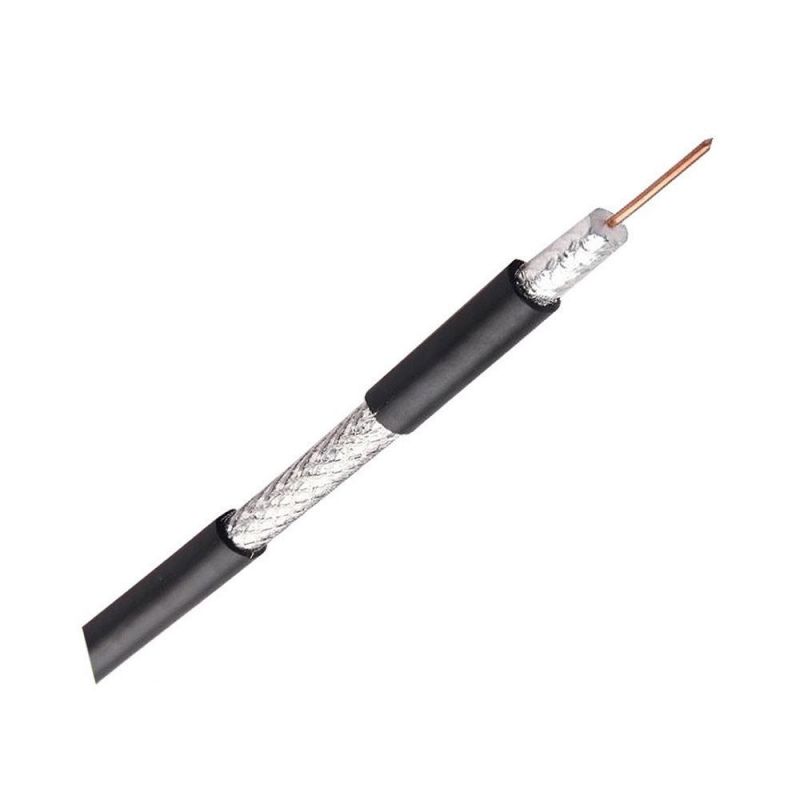

RG660 Triple Shield Coaxial Cable with Message
Hangzhou Softel Optic Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial Cable
- Certification：CE, RoHS, CCC
- Module Number：RG660t
Base Info
- Model NO.：RG660T
- Dielectric：4.57+ 0.05mm Foam PE
- Center Conductor：1.02mm + 0.01mm
- Shield：Bonded Al Foil
- Outer Conductor Thickness：0.343mm
- Braid Coverage：60%
- Jacket：6.91+0.05mm PVC
- Messenger：1.30mm
- Jelly/Apd：Per Customer′ Special Requirement
- Transport Package：Packed with Polyfoam, Outer Packed with Brown Box
- Specification：CE; ISO9001
- Trademark：Softel
- Origin：Hangzhou, Zhejiang, China
- HS Code：85176229
- Production Capacity：10000km Per Month
Description
Basic Info.
Model NO. RG660T Dielectric 4.57+ 0.05mm Foam PE Center Conductor 1.02mm + 0.01mm Shield Bonded Al Foil Outer Conductor Thickness 0.343mm Braid Coverage 60% Jacket 6.91+0.05mm PVC Messenger 1.30mm Jelly/Apd Per Customer′ Special Requirement Transport Package Packed with Polyfoam, Outer Packed with Brown Box Specification CE; ISO9001 Trademark Softel Origin Hangzhou, Zhejiang, China HS Code 85176229 Production Capacity 10000km Per MonthProduct Description

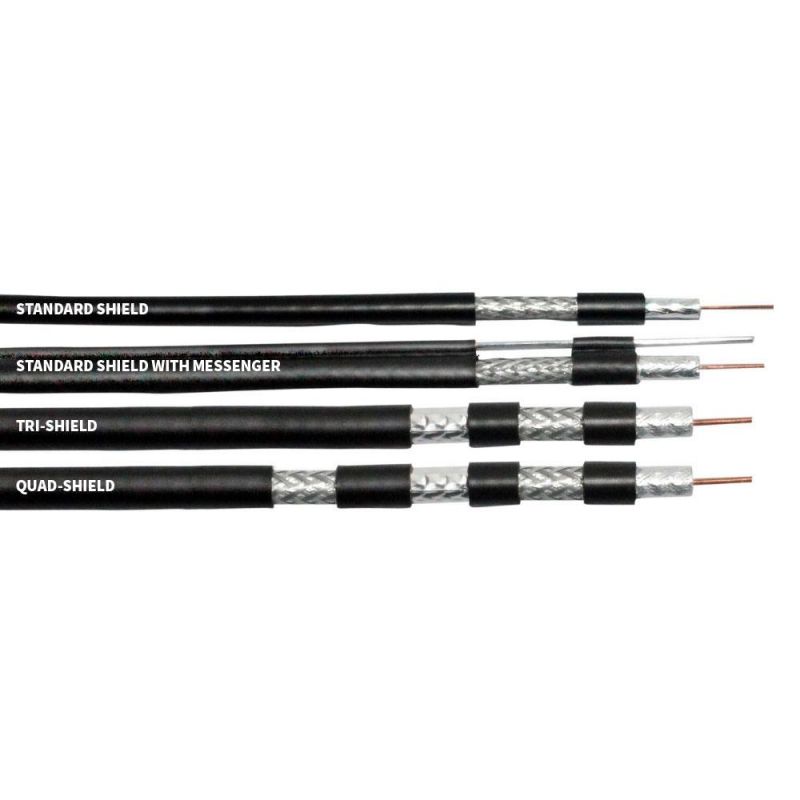

Softel RG660 Quad Shield Coaxial Cable with Message
Construction
- Min. bending radius: 8.9mm(jacketed)
- Max. pulling tension: 68kgf
- Min. thickness strength
- Of messenger: 816kgf
- Impedance: 75+2Ohm
- Capacitance: 50+3nF/km, 15.3+1pF/ft
- Velocity of Propagation: 88%
CharacteristicsSparker test: 4000VAC Impedance: 75+2 Ohm Capacitance: 54+3pF/m Velocity of Propagation:85% Return Loss: 20dB min (5-2300MHz)
Nominal D.C. resistance @20
- Copper clad:
- Inner conductor 4.43ohms/km
- Outer conductor 1.21ohms/km
- Loop 5.64ohms/km
