Aluminum Cord-Plex Isolated Multiplex 1kv Ca, Caa Ou Cal Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Overhead Power Lines
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：N,a
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cabo Multiplex 1kv
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, CE
  • Model：0.6,1 Kv Aluminum Multiplexed Cable
  • Brand：Hongda
  • Standard：NBR 8182, IEC60502
  • Insulation：XLPE or Polyethylene
  • Operating Voltage：1kv
  • Operating Temperature：Max 65c
  • Transport Package：Wooden Drum or as Customer Requirement
  • Specification：6mm2 to 120mm2
  • Trademark：Hongda Cable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

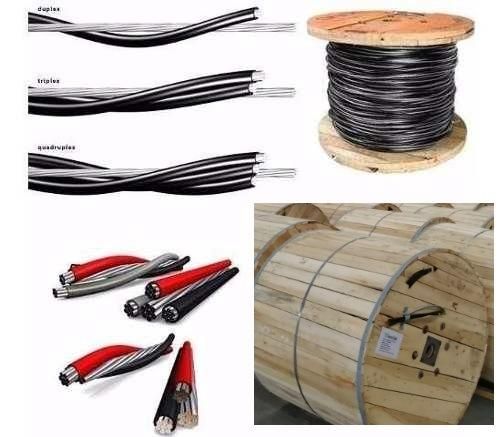

Format 1: *Format 2:*Format 3:

Duplex

Phase 1: Black.
Neutral: Nu.



Duplex

Phase 1: Black.
Neutral: Blue.

Triplex

Phase 1: Black.
Phase 2: Gray.
Neutral: Bare

Triplex

Phase 1: Black.
Phase 2: Black.
Neutral: Bare.

Triplex

Phase 1: Black.
Phase 2: Gray.
Neutral: Blue.

Quadruplex

Phase1: Black.
Phase 2: Gray.
Phase 3: Red.
Neutral: Nu

Quadruplex

Phase 1: Black.
Phase 2: Black.
Phase 3: Black.
Neutral: Bare.

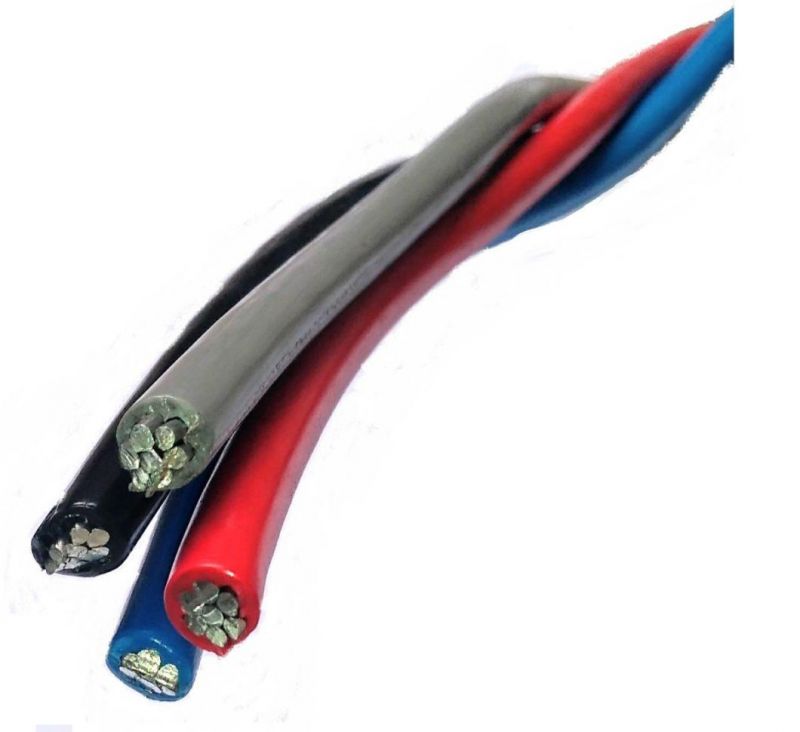

Quadruplex

Phase 1: Black.
Phase 2: Gray.
Phase 3: Red.
Neutral: Blue.

* Formats 2 and 3 only by special request.Aluminum Cord-Plex Isolated Multiplex 1kv Ca, Caa Ou Cal Cable

Conduspar - Multiplex Cable 1 kV
Nominal DimensionsNominal Weight (kg/km)Thickness (mm)Diameter (mm) Wires x Diameter(mm)Diameter (mm)3x1x35+357,01,610,27 x 2,507,65109223,74903x1x35+507,01,610,27 x 3,009,18157224,65303x1x50+358,11,611,37 x 2,507,65109225,86253x1x50+508,11,611,37 x 3,009,18157226,76653x1x70+509,51,813,17 x 3,009,18157230,18953x1x70+709,51,813,17 x 3,4510,56199131,09203x1x95+7011,22,015,27 x 3,4510,56199134,91.123x1x120+7012,62,016,67 x 3,4510,56199137,51.375
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
