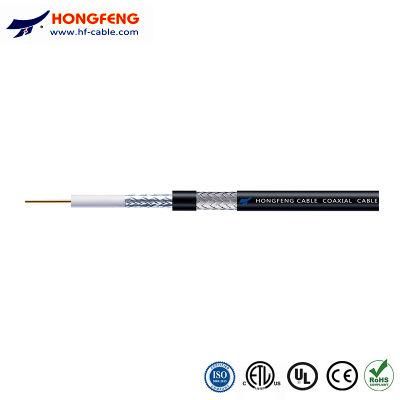

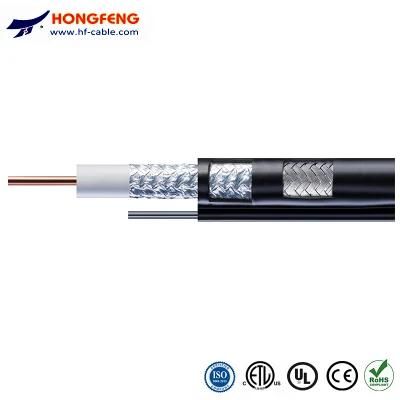

Rg11 Dual Coaxical Cable for North America

Hangzhou Hongfeng Cable Co., Ltd.
  • Application：Local Communication Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：RG11
  • Wire Core Material：Tinned Wire
  • Certification：CE
  • Model：MHYV
  • Brand：FUJI
  • Transport Package：by Sea
  • Specification：RG11
  • Trademark：HONGFENG
  • Origin：China
  • Production Capacity：50000

Description

1) Temperature range: -55 - +155°C



2) Impedance: 50 ohms



3) Frequency range:DC~11GHz



4) Working voltage: 500V rms



5) Withstand voltage:1500V rms



6) Contact resistance: a) Center contact: ≤10mΩ  b) Outer contact: ≤2.5mΩ



7) Insulation resistance: ≥5,000mΩ



8) VSWR:   a) Straight: ≤1.22/3GHz         b) Right angle: ≤1.30/3GHz



9) Durability (mating): ≥500 times





Quick Details

  • 1.02+0.01mm PURE COPPER(BC)Dielectric:4.57+0.1mmFoam PEShield:Al Foil/Bonded Al FoilBraid Coverage:64*0.16AL ,60%Jacket:6.91+0.1mm PVCJelly/APDPer Customers' Special Requirement2) CharacteristicsSparker Test:4000VACImpedance:75+3 OhmCapacitance:54+3pF/mVelocity of Propagation:85%Return Loss:20dB min (5-2300MHz)
