• Model NO.：AWG12
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CE, SABS
• Brand：Jp
• Port：by Buyer′s Request
• Transport Package：Wooden Drum
• Specification：any standard
• Trademark：JP
• Origin：China
• HS Code：7312100000
• Production Capacity：20000 Km, Month

Basic Info.

Model NO. AWG12 Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, SABS Brand Jp Port by Buyer′s Request Transport Package Wooden Drum Specification any standard Trademark JP Origin China HS Code 7312100000 Production Capacity 20000 Km/ Month

Product Description

Bare Conductor Aluminum Clad Steel Wire/Strand (ACS) "AWG12 " with ASTM B415-1998
Application
 Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc.  The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and  low cost installation and maintenance, large transmission capacity.

SPECIFICATION:
Nominal Diameter: AWG12
Area: 3.307spmm
Min.Tensile Strength:1340mpa
Calculated Breaking Load: 4.5KN
Min. Coating Thickness: 0.103mm
Max.D.C Resisitance at 20ºC: 25.64Ω/km
Weight: 21.8kg/km

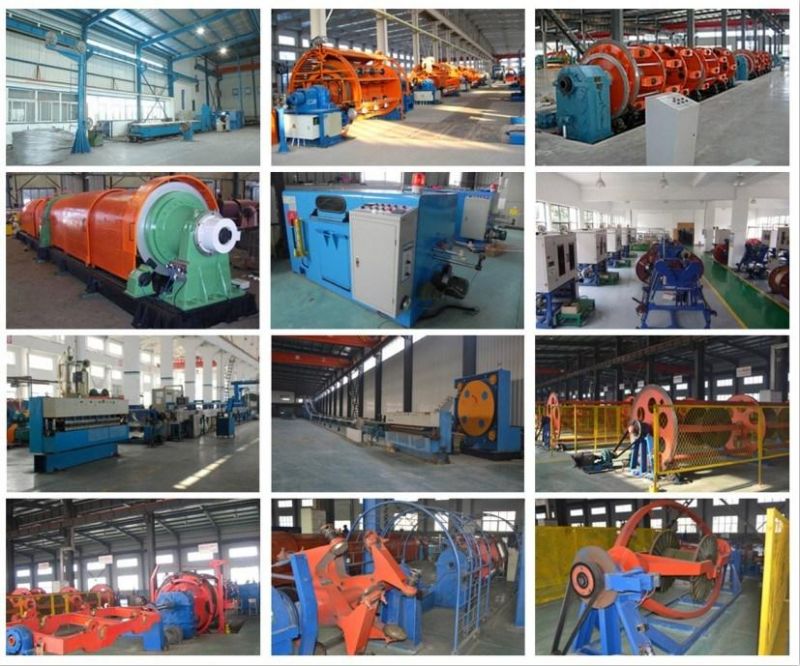

Workshop:



What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
